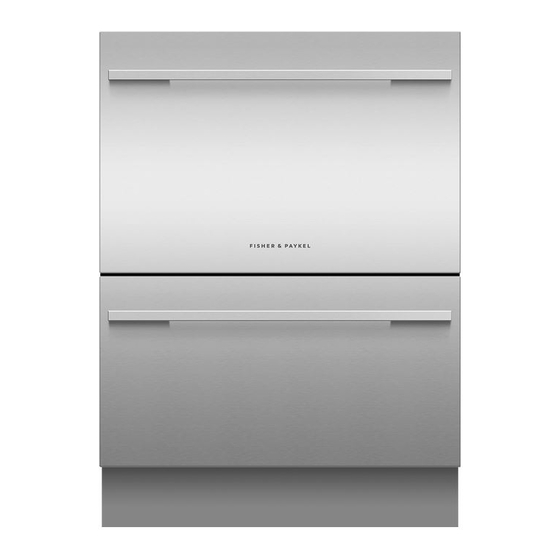

Fisher & Paykel DOUBLE DISHDRAWER DD60DHI9 Installation Manual
Hide thumbs
Also See for DOUBLE DISHDRAWER DD60DHI9:
- Quick start manual (2 pages) ,
- Service manual (78 pages) ,
- User manual (60 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel DOUBLE DISHDRAWER DD60DHI9
Summary of Contents for Fisher & Paykel DOUBLE DISHDRAWER DD60DHI9
- Page 1 DOUBLE DISHDRAWER™ DISHWASHER INTEGRATED DD60DHI9 INSTALLATION GUIDE...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Electric Shock Hazard Failure to follow this advice may result in Failure to follow this advice may result in electrical shock or death. electrical shock or death. • Fitting an integrated panel requires access to •... - Page 4 SAFETY AND WARNINGS WARNING! Ensure the product is not plugged in when fitting custom panels. Installation of custom panels requires basic mechanical and electrical skills. To reduce the risk of fire, injury to persons or damage when using the appliance, follow the Installation must comply with your local building and electricity regulations.
-
Page 5: Tools And Components
TOOLS AND COMPONENTS PARTS SUPPLIED TOOLS REQUIRED Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS PRODUCT DIMENSIONS A Overall height* 820 – 880 B Overall width** C Overall depth*** D Height of chassis E Depth of chassis F Ventilation gap between door panels G Depth of toe kick recess** PLAN ISOMETRIC Custom panel installation 40 – 100 Pre-finished panel installation***** 20 - 36 H Minimum clearance between toe kick panel... -
Page 7: Custom Panel Dimensions
CUSTOM PANEL DIMENSIONS Material specifications Maximum weight of door panels must not exceed 9kg (including handle) The panel should be adequately sealed to withstand moisture (50°C @ 80% RH). The back and sides of the panel should be completely sealed with a waterproof vapour barrier, such as polyurethane, to prevent damage. - Page 8 CABINETRY DIMENSIONS CLEARANCES Connections can be located in an adjacent cabinet on either side of the DishDrawer*** PLAN ISOMETRIC CABINETRY DIMENSIONS CABINETRY CLEARANCES A Minimum inside height* A Minimum clearance to adjacent cupboard door B Inside width 600 – 610 B Minimum clearance to corner cupboard C Minimum overall depth** D Recommended height of adjacent cabinetry E Height of toe kick area***...
- Page 9 PLUMBING & ELECTRICAL CONSIDERATIONS Hose and cord lengths Your services can be installed to either the left-hand or right-hand side of the product in an adjacent cabinet. Refer to Preparation for service access requirements. If the drain hoses supplied are not long enough to reach your services, you may purchase a Fisher &...
-
Page 10: Service Access
PREPARATION SERVICE ACCESS MOISTURE PROTECTION We recommend locating the service holes on either side of the DishDrawer™ Dishwasher as shown below. If the holes are created through wood, ensure the edges are smooth and rounded Align the supplied moisture protection If the holes are created through metal, ensure an edge protector is fitted. - Page 11 PUSH THE PRODUCT INTO THE CAVITY FIT CUSTOM DOOR PANELS If securing to cabinetry via method A Secure all four side brackets to the Remove both side pins from each drawer DishDrawer™ Dishwasher, aligning by pulling the pins out towards you. bracket A with slot A and bracket B with slot B.
- Page 12 FIT CUSTOM DOOR PANELS Snap the bracket tab to remove. Re-insert the side pins on both drawers and push firmly to secure panels in place. Attach the Knock-to-Pause module to the panels as shown. Ensure the Knock-to-Pause modules are oriented correctly and are not in contact with the brackets Insert a Phillips screwdriver into the before securing.
- Page 13 SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) Open the lower drawer and press both locking tabs back to release. Partially open one of the drawers and remove the first screw cover from the trim moulding.
- Page 14 SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) INSTALL PREFINISHED TOE KICK Measure toe kick height. Where Before refitting the drawers, ensure the toe kick meets the bottom the hoses are not twisted and all of the tub is the recommended latches are facing forward.
- Page 15 PREPARE THE CUSTOM TOE KICK PANEL INSTALL CUSTOM TOE KICK If the depth of your toe kick recess is greater than 40mm, the toe kick panel may need to be cut to one of the predetermined profiles to clear the underside of the tub. Refer to ‘custom panel dimensions’...
- Page 16 PLUMBING & ELECTRICAL CONNECTION Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION Install the drain hose support to the Install the drain hose support to the back wall, as close to the underside of back wall, as close to the underside of the countertop as possible.
-
Page 17: Installer Checklist
INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER Installation Electrical … … Check all parts are installed correctly and are secure. Ensure all electrical tests have been conducted in accordance with local regulations. … Ensure all clearance gaps have been maintained. Test operation …... -
Page 18: Troubleshooting
TROUBLESHOOTING No program indicator lights up when the drawer is opened DISPLAY POSSIBLE CAUSE WHAT TO DO Ensure power is connected and is switched on. Water Supply fault. 1 Ensure the water supply is may need to be activated. Refer to your user guide for details. AUTO POWER-ON turned on. - Page 19 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2021. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
