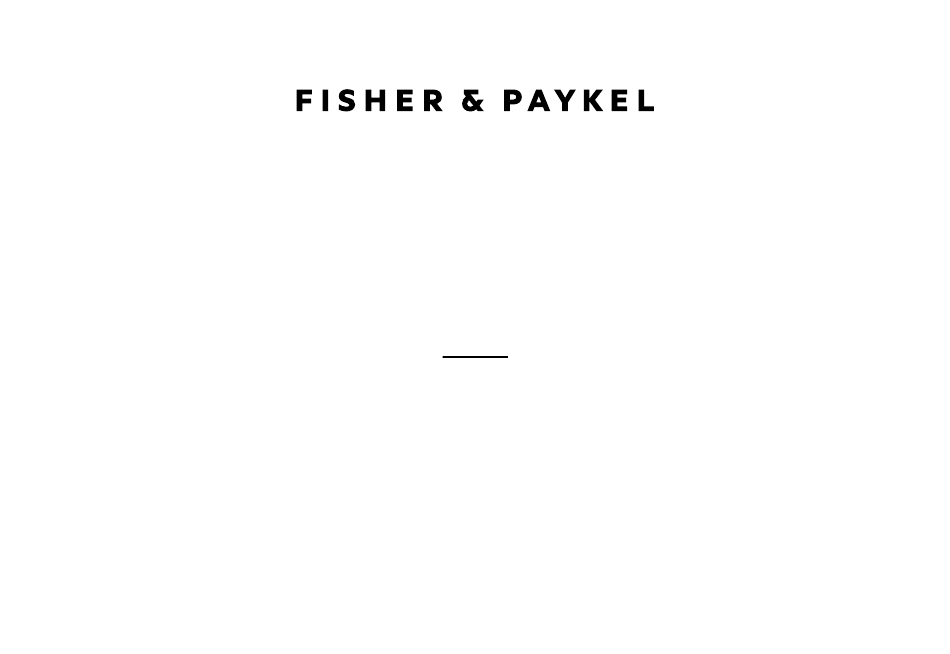

DOUBLE DISHDRAWER
TM
DISHWASHER
DD60DDF models
INSTALLATION GUIDE
NZ AU GB IE
591384 A
08.17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOUBLE DISHDRAWER DD60DDFHB9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel DOUBLE DISHDRAWER DD60DDFHB9

  • Page 1 DOUBLE DISHDRAWER DISHWASHER DD60DDF models INSTALLATION GUIDE NZ AU GB IE 591384 A 08.17...
  • Page 2: Safety And Warnings

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Electrical shock hazard Installation of this dishwasher requires basic Before installing the dishwasher, remove the ● mechanical and electrical skills. house fuse or open the circuit breaker. Be sure to leave these Instructions with the Customer. This appliance must be earthed.
  • Page 3: Parts Supplied

    PARTS SUPPLIED Drain hose Drain hose Wire clip (2) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips Rubber washer Moisture protection Hexagonal Prefinished toekick (1)
  • Page 4: Product Dimensions

    PRODUCT DIMENSIONS FRONT PROFILE DD60DDF PRODUCT DIMENSIONS Overall height of product 820-880 Overall width of product Overall depth of product Depth of chassis (to back of front drawer panel) Depth of drawer front panel Height of chassis Height of drawer front panels Height of upper drawer front panel Height of lower drawer front panel Height from top of drawer front panel to top of chassis...
  • Page 5: Cabinetry Dimensions

    CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD60DDF CABINETRY DIMENSIONS Inside height of cavity* min. 820 Inside width of cavity Minimum clearances from adjacent cabinetry Inside depth of cavity min. 560 Recommended height of adjacent cabinet space Height of toekick space* 100-160 * depending on adjustment of levelling feet min.
  • Page 6: Cavity Preparation

    CAVITY PREPARATION IMPORTANT! BENCHTOP The power outlet must be located in a cabinet adjacent to the dishwasher cavity. Moisture 220-240 VAC min. 9.5 A 10 mm protection Water Connection tape must be applied. Recommended COLD (Maximum 60°C). 3/4“ BSP (GB20) to suit flat washer.
  • Page 7 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hoses - 2000mm Drain hoses - 1800mm Inlet hose - 1650mm Inlet hose - 1250mm Power cord (excl.plug) - 1650mm Power cord (excl.plug) - 1650mm...
  • Page 8 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY optionally attach the Clip all four side mounting brackets When fitting brackets, into their slots using a flat-bladed...
  • Page 9 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting Open the brackets will only drawer halfway. (x2) bend upwards a Using a flat maximum of 10 mm. bladed Replace the grey screwdriver, rubber plug back into prise the grey the trim moulding rubber plug out...
  • Page 10 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses optionally attach the Either sit the drawer down on the left two top mounting When fitting brackets, hand side (recommended) or rotate the brackets ensure the ends are...
  • Page 11 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting brackets will only (x2) bend upwards a maximum of 10 mm. For further adjustment, using the most appropriate length Hexagonal socket supplied, fully extend levelling feet up to required distance by hand.
  • Page 12 FIT THE SUPPLIED TOEKICK PANEL Mounting rail Where the toekick meets the bottom of the tub is the cut-off point Lay the toekick face down on Turn the toekick over and Smooth the edges with a file. a chopping board or similiar score along the same line Be careful of sharp edges.
  • Page 13 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit If space is limited If space is limited 19 mm waste tee for fixing, push for fixing, push...
  • Page 14: Troubleshooting

    CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is Tighten coupling with spanner. fitted inside the coupling. TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault. See user guide ‘How to attend to a fault’) ●...
  • Page 15: Final Checklist

    FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawers. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have been Check the spray arms are in place, mounted correctly and free to rotate, by conducted in accordance with local electrical regulations.
  • Page 16 SINGLE DISHDRAWER DISHWASHER DD60SDF models INSTALLATION GUIDE NZ AU GB IE 591384 A 08.17...
  • Page 17 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Electrical shock hazard Installation of this dishwasher requires basic Before installing the dishwasher, remove the ● mechanical and electrical skills. house fuse or open the circuit breaker. Be sure to leave these Instructions with the Customer. This appliance must be earthed.
  • Page 18 PARTS SUPPLIED Drain hose Drain hose Wire clip (1) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips 38 mm Rubber washer Moisture protection Cavity Bracket Kit (1)
  • Page 19 PRODUCT DIMENSIONS FRONT PROFILE STANDARD TALL HEIGHT HEIGHT DD60SDF DD60SDFT PRODUCT DIMENSIONS Overall height of product Overall width of product Overall depth of product Depth of chassis (to back of front drawer panel) Depth of drawer front panel Height of drawer front panel Height of chassis Height from top of drawer front panel to top of chassis Ventilation gap below drawer front panel...
  • Page 20 CABINETRY DIMENSIONS Bracket slots PLAN STANDARD TALL PROFILE HEIGHT HEIGHT DD60SDF DD60SDFT CABINETRY DIMENSIONS Inside height of cavity min. 412 Inside width of cavity Minimum clearances from adjacent cabinetry Inside depth of cavity min. 560 min. 560 Cavity height options allow you to match dishwasher with your cabinetry or companion products DD60SDF DD60SDFT (Standard height models)
  • Page 21 CAVITY PREPARATION IMPORTANT! The power outlet must be located in a BENCHTOP cabinet adjacent to the dishwasher cavity. 220-240 VAC min. 4.8 A Moisture 10 mm protection tape must be applied. Water Connection Recommended COLD (Maximum 60°C). These marks indicate formed bracket screw 3/4“...
  • Page 22 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hoses - 1800mm Drain hose - 2000mm Inlet hose - 1250 mm Inlet hose - 1650mm Power cord (excl.plug) - 2000mm Power cord (excl.plug) - 2000mm TALL HEIGHT DESIGNER MODELS FOR 480 MM CAVITY ONLY - ATTACH CAVITY BRACKET IMPORTANT! The enclosed cavity bracket is fitted before installation in order...
  • Page 23 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
  • Page 24 SECURE TO THE CABINETRY ON THE SIDES Open the drawer halfway. Using a flat bladed screwdriver, prise the grey rubber plug out of the trim moulding. Replace the grey rubber plug back into the trim moulding and ensure the trim seal is facing forward.
  • Page 25 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal.
  • Page 26 SECURE TO THE CABINETRY ON THE SIDES The product has three pairs of fixing points: Ensure the sound insulation is repositioned correctly. a pair of fixing two pairs of formed holes either side brackets on either side on the bottom of the chassis (use 38 mm fixing (use 16 mm screws)
  • Page 27 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit If space is limited If space is limited 19 mm waste tee for fixing, push for fixing, push...
  • Page 28 CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is fitted inside the coupling. Tighten coupling with spanner.
  • Page 29 TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault. See user guide ‘How to attend to a fault’) ● Check for a kinked drain hose, blocked or incorrectly drilled out waste connection, highloop not properly installed, drain hose not routed correctly or spray arm not in place. No water supply.
  • Page 30 FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawer. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have been Check the spray arms are in place, mounted correctly and free to rotate, by conducted in accordance with local electrical regulations.
