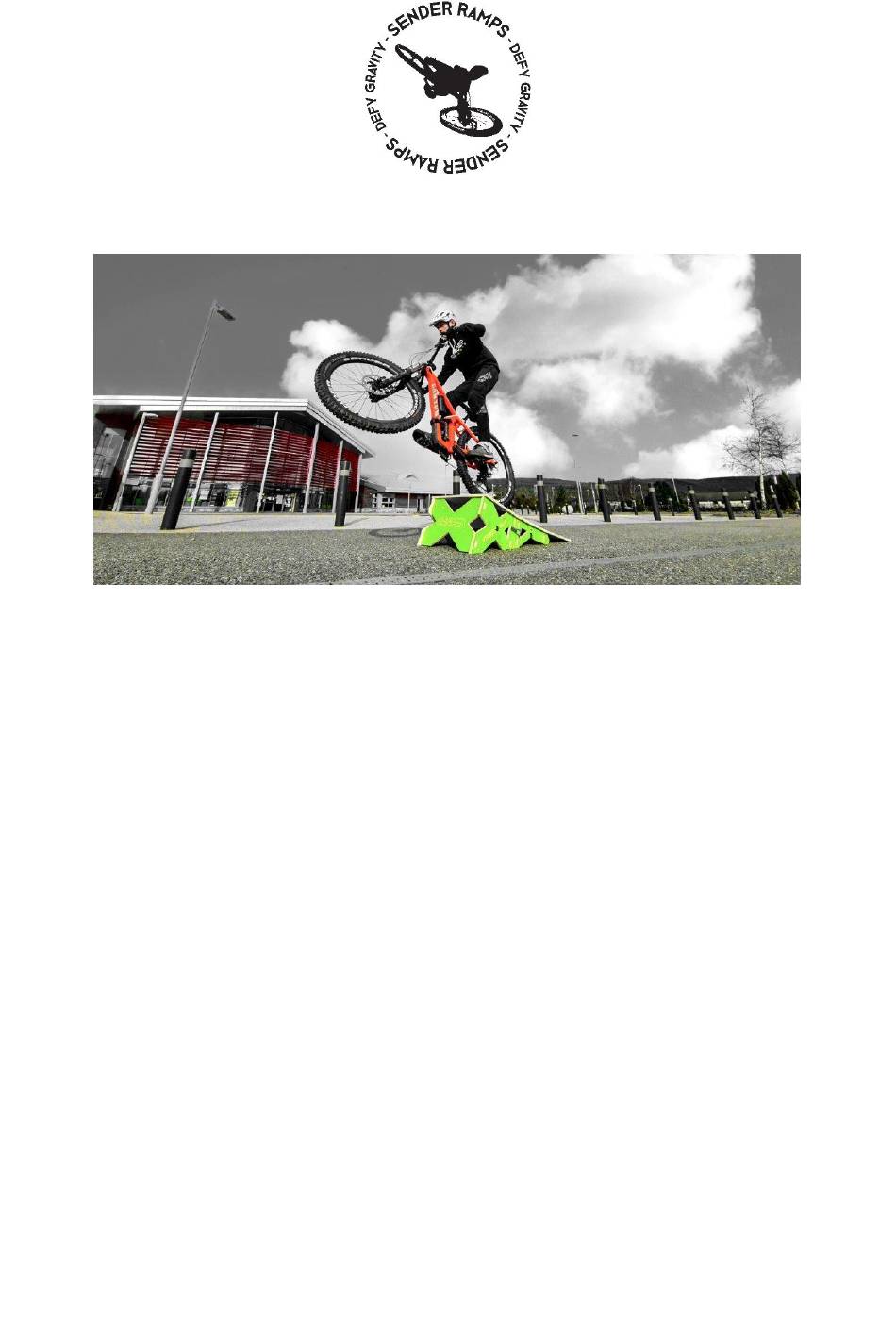

STREET RAMP L1 and L2 EXTENSION

DESIGNED FOR BIKES - SKATEBOARDS – SCOOTERS

The New Sender Street Ramp L1 has 3 Curved take off heights of 200 mm 350 mm and 500 mm. The L2 Extension

(Additional Product) bolts to the L1 to create a ramp 750 mm high! The L3 (available soon) will be 1000 mm! Sender

Street Ramp L1 is super compact when folded at just

600 mm x 410 mm x 190 mm. The ramp is made from super

strong 18 mm Birch Plywood and only weighs 18 kgs. Once attached the L2 makes the Ramp 29 kgs. The L1 ramp can

be turned into a rucksack to carry to the park with simple straps. Parents and Guardians of young children should

assess the child's ability to carry this ramp safely to its point of use. A Strong Vinyl bag is available for the L1 and L2 if

you prefer a better carrying solution. The L2 should not be attached to the L1 and used in rucksack mode with the

straps alone.

The ramp can be assembled for use in less than 1 minute. There are no screws. The structure pushes together and

each section is held with a super strong strap. The 200 and 350 Section are held with heavy duty clips. Placing the

ramp into 500 mm High mode requires legs to be attached with 6 x M10 Bolts. These are inside the small cotton bag

with a 6 mm hex key. You will also find a Hex key on most Portable Bike Tools if you lose the supplied Hex key.

The ramp is coloured with an exterior grade preservative. It is important to coat all other edges and faces with a

clear wood preservative if you would like the ramp to last and function properly. Maintaining your product will

greatly increase its life span. We recommend treating your ramp annually and spraying bolts and T nuts regularly.

Always bring your ramp inside to dry after use. Wood can swell and jam. Some components have small tolerances to

ensure a strong stable structure.

Never drag your ramp around. Lift and place the ramp where you will jump to avoid damage to ground contact

points. You can use the ramp on all surfaces as long as it is flat and even and the sides / feet do not sink.

ALWAYS CHECK YOUR RAMP IS PROPERLY ASSEMBLED BEFORE EACH TAKE OFF

Jumping can go wrong very quickly and lead to severe or even life changing injuries and damage to you bike,

skateboard, scooter and property. We recommend grass take offs and landing when using a bike. Always wear a

helmet, knee pads and gloves as a minimum. Ensure clear take-off and landing space all around and if used on the

street locate and jump in a safe place with no chance of striking or being struck by a car, van etc.

Need help?

Do you have a question about the STREET RAMP L1 EXTENSION and is the answer not in the manual?

Questions and answers

Summary of Contents for SENDER RAMPS STREET RAMP L1 EXTENSION

Page 1 STREET RAMP L1 and L2 EXTENSION DESIGNED FOR BIKES - SKATEBOARDS – SCOOTERS The New Sender Street Ramp L1 has 3 Curved take off heights of 200 mm 350 mm and 500 mm. The L2 Extension (Additional Product) bolts to the L1 to create a ramp 750 mm high! The L3 (available soon) will be 1000 mm! Sender Street Ramp L1 is super compact when folded at just 600 mm x 410 mm x 190 mm.
Page 2 If you need help or advice please contact support@sender-ramps.com CREATING a 200 mm HIGH RAMP! STAGE 1: Your Ramp Surface comes in two parts. The Top section is a single deck. The Lower section has 2 decks and is hinged. Start with the two short side components.
Page 3 always threaded WITHOUT TWISTS and the Cam Buckle is the correct way up! You may need to go back to the start and rethread on your first attempt. Feed the Strap through the ramp surface and return to the back face. Thread the strap through the slot in the opposite side component and place the strap over the edge.
Page 4 Turn the ramp back over and unfold the surface. You have now created a 200mm High Jump Ramp. If you have chosen a skate plate to go with your ramp, please visit that section of the guide to see how it is fitted and adjusted. CREATING A 350 mm HIGH JUMP RAMP STAGE 2:...
Page 5 Lie the Large SENDER X back brace down coloured side up. Do the same with the X shaped side components and X shaped front brace. Push the parts together. The clips should be at the lower end of the structure on the outside of the structure. Place the Single Deck onto the Structure and carefully hold and turn these components onto one side as shown below.
Page 6 Remove any twists and ensure the Cam Buckle is facing the correct way to get a clean, straight pull on the strap. Thread the strap through the cam buckle and pull firmly to hold the components together. Turn the ramp onto its surface and give another firm pull to secure the parts.
Page 7 These new clips vary slightly from those in some of the assembly images below! The NEW clips allow you to increase or decrease the tension of the clip as shown in the image below. IT is extremely important that the clips close under the pressure of ONE finger! Excessive force will RIP THE SCREWS from the plywood.
Page 8 You have now created a 350 High Jump Ramp – See Skate Plate fitting instructions below if you have purchased one! CREATING A 500 mm HIGH JUMP RAMP STAGE 3: Take the two triangular front legs and longer back legs. Rest your 350 High Ramp on its side. Take the first front leg marked with 500 and hold this above the hole at the lowest end of the ramp.
Page 9 an M10 x 40 Button Head Bolt and Large Washer and place this through the foot into the T nut in the side component. ALWAYS locate bolts into T Nuts by finger first to avoid cross threading. You should lubricate the bolts regularly to make this process easier.
Page 10 STORAGE AND TRANSPORT MODE There are many ways to interlink the components for transport. Please use this guide as one of the ways to store and transport your ramp. The Street ramp can be made into a rudimentary rucksack using the strap provided and this is described below.
Page 11 LEVEL 3 and 4: The Lower Side Components – The Right Upper Side Component Colour Face Up! Level 5 and 6: The Left Upper Side Component Colour Face Down! Plus Feet – The 500 Legs L6: THIS IS A GOOD STAGE TO PLACE AND TRAP THE COTTON BAG IN THE LAYERS! Level 7 and 8: The 200 Front Brace and 200 Back Brace –...
Page 12 Level 9: The Top Surface / Deck STRAPPING THE COMPONENTS FOR TRANSPORT Take the Straps and place them under the bottom Hinged Surfaces / Deck with the Cam Buckles placed as shown. Thread the straps through the slots on the Top Surface / Deck as shown below, and connect the strap to the Cam Buckles.
Page 13 CREATING A RUCKSACK WITH THE EXTRA STRAP Rotate the Ramp into a Portrait position. Place the Long Strap through the bottom hole and then through the opposing top hole. Thread the strap over the top edge of the ramp and under the cross strap. Go back over the top edge of the ramp and back through the hole.
Page 14 PLEASE NOTE! You may want to trim the straps with a hot knife. Do not cut the strap with scissors or it will fray and may not reseal properly making it difficult to thread through the Cam Buckle. Please make sure you leave enough strap (approx. 200 mm) to enable the strap to be threaded with ease and provide a handle to pull the strap tight.
Page 15 Take the Ramp Surface and place this over the substructure. The surface has holes that go all the way through the surface and some additional pockets on the back face. You may need to square the substructure ensuring that the substructure parts are properly in place.
Page 16 JOINING YOUR EXTENSION TO YOUR L1 in 500 mm HIGH MODE Lift the L2 Extension and place it carefully against the L1 in 500 High Mode. The Ramp Surface should should fit UNDER the surface on the L1. Check the TENSION in the Clips. When the L1 and L2 Ramps are properly aligned the CLIPS should close with ONE Finger.
Page 17 Always check the clips, bolts and straps are secure BEFORE Jumping! STORAGE AND TRANSPORT MODE There are many ways to interlink the L2 components for transport. Please use this guide as one of the ways to store and transport your ramp. The L2 Extension should NOT be attached to the L1 and placed into rucksack mode using the strap provided.
Page 18 LEVEL 3 The Right HINGED Leg Folded – Ensure the Clip is Folded as shown below on both parts LEVEL 4 and SECURING THE PARTS: L4: The Large X Back Plate – Thread the Strap THROUGH the SLOT on the LEFT of the X so the CAM BUCKLE sits on top of the X.
Page 19 INSTALLING THE SKATE PLATE This component may not have come with your ramp The Skate Plate can be installed and removed quickly. However, the Skate Plate is better left on the ramp to avoid losing the parts. (More can be ordered) You will need a 3 mm Allen Key found on your BIKE TOOL! Place the Galvanised Steel Plate over the 4 slots on the first ramp surface.
Page 20 Once the position is correct tighten the bolts to prevent movement / slippage. When you are finished with the ramp the plate can slide back into storage mode. Simply untighten – slide and retighten the plate. Be careful not to scratch the ramp surface.
Page 21 200 mm HIGH – 350 mm HIGH 500 mm HIGH – L2 EXTENSION = 750 mm HIGH L1 FOLDED IN TRANSPORT MODE COMING SOON - SENDER STREET RAMP L3 The 1000 High L3 Bolt on is in progress. We will be adding more levels soon! These will attach to the L2 ...
