SENDER SKILL 5TATION
WARNING! THE SEESAW IS ONLY SUITABLE FOR BALANCE BIKES and SOME very small pedal bikes – PLEASE CHECK
BEFORE USE! The rear wheel must be on the ramp surface before the SEESAW tips. Longer wheelbase bikes may
cause the seesaw to tip BEFORE the rear wheel is on the ramp causing the bike to stop dead! It is NOT designed for
launching other children into the AIR that are not on bikes

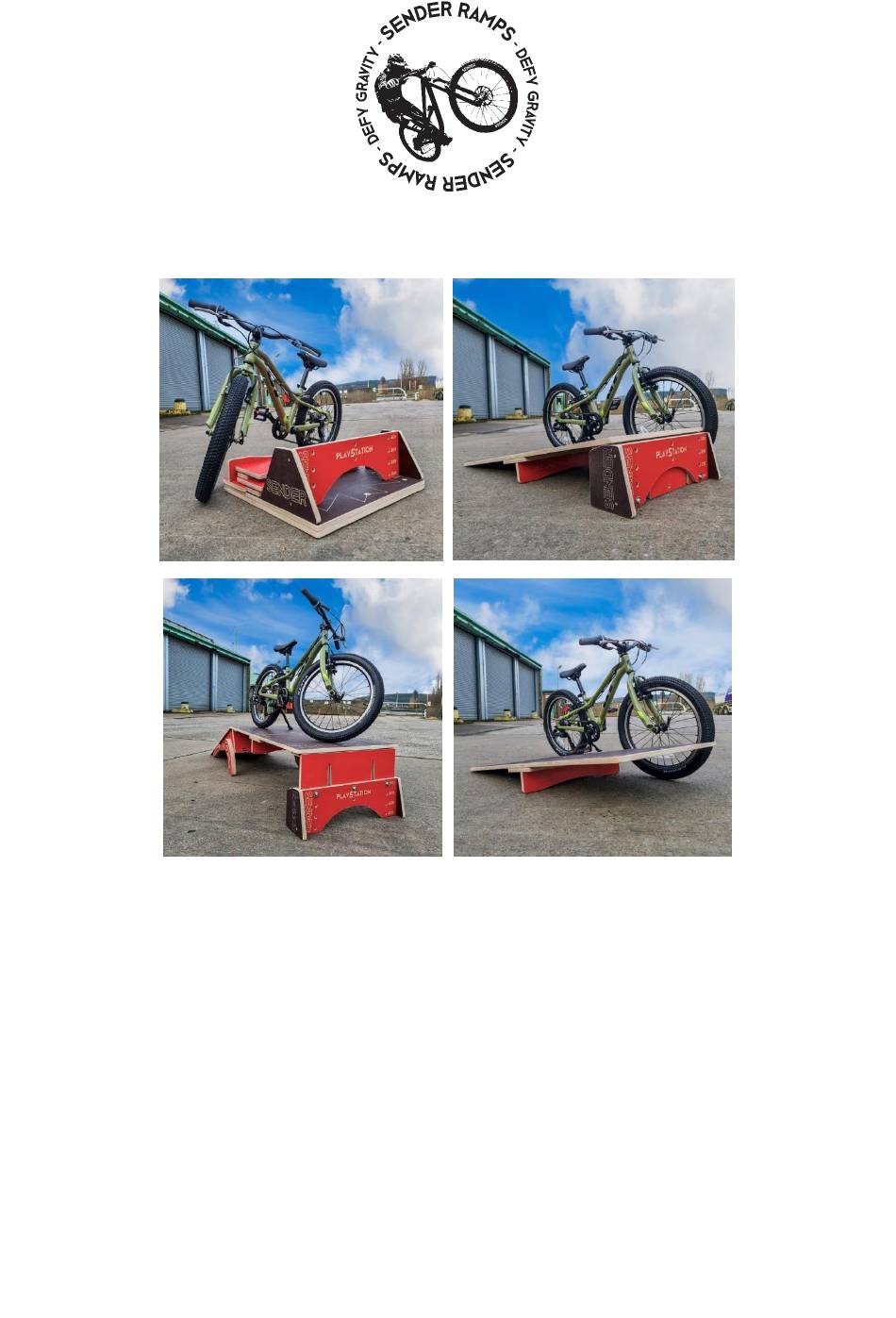

Thank you for buying our Skill Station. You now have an incredibly versatile coaching and training aid to develop young rider's
skills. It has been designed with beginners in mind to focus on Core Bike Handling Skills in a fun and challenging way. You will get
maximum flexibility and progression by pairing the Skill Station with 1 or 2 Rookie Progression Ramps. However, it will work
perfectly with fixed height ramps such as the Classic 200 / 350 and Core 200 and 350 straight or Curved Ramps but you will not
have the benefits of intermediate height adjustment provided by the Rookie Ramps.
Our goal was to give users the ability to build confidence with ease by gaining height in small increments.
We have applied a lower load rating of 75 kgs on this equipment because it is designed for young children. In some settings such
as the 1200 tabletop you will notice some flex and this is normal! The equipment is very strong, but will have a LOT of flex in
certain settings if used by older children or adults and may fail if overloaded. We recommend our Progression Tabletop's if you
need a set up that is designed for heavier and older riders that has been designed for heavy use and high loads.
** You can use your Station on its own as a Standalone 200 mm HIGH Jump or Landing Ramp!
