Permaban AlphaJoint Installation Guide
Using AlphaFeet Method
Installation Guide Issue V1.0
05/10/21
04 Adjust to Height

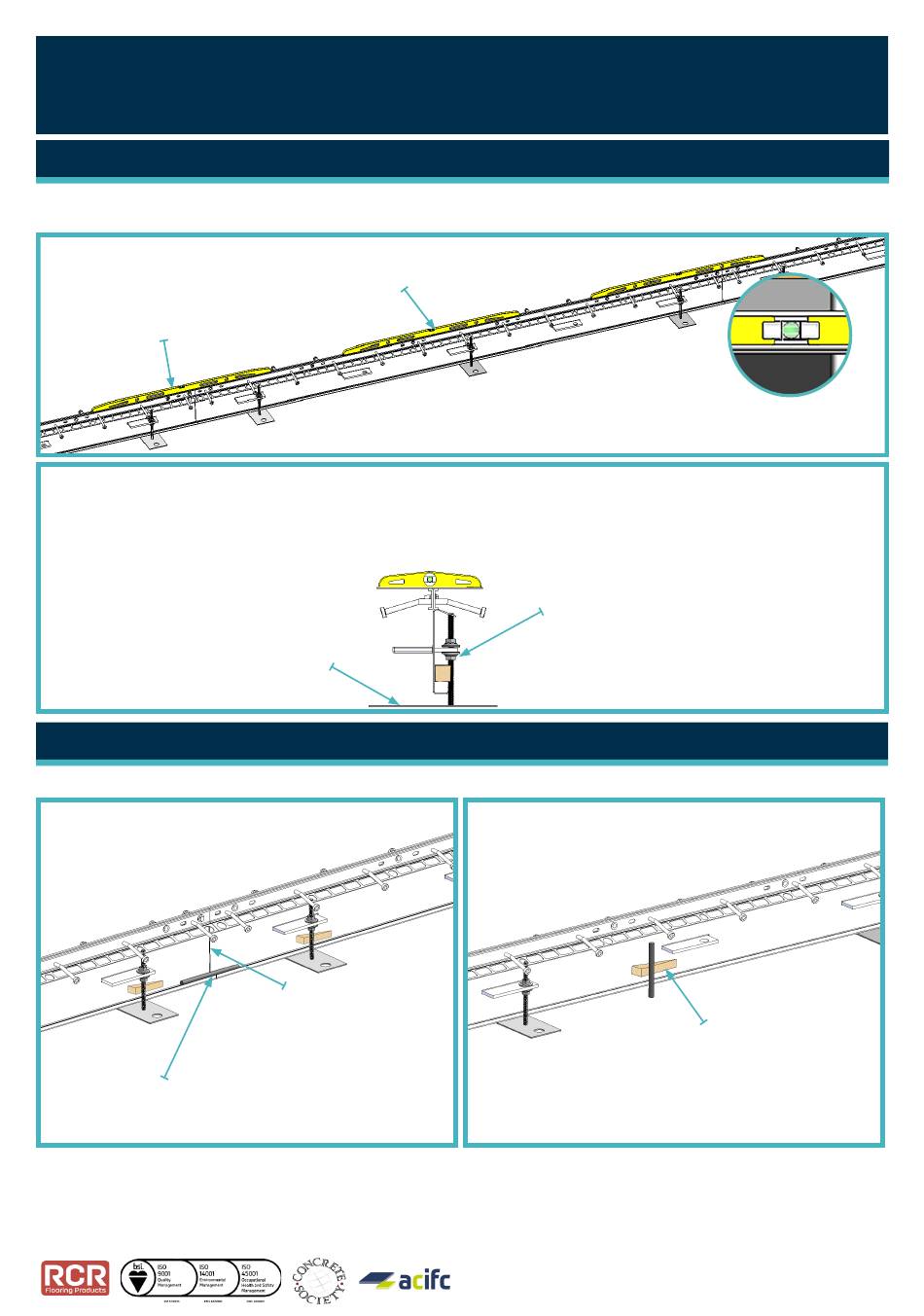

Use the bolts on the AlphaFoot to set the height of the Joint. Then check the Joint is level with a spirit level/
optical level.
Note; Check the joint is level in the 3 positions above.
Top strip
Measure the vertical and horizontal level using the top strip.
Note; Joints must
be fixed at 90°.
05 Support bars / Wedges
This method gives good support to the Joint and helps to prevent kick.
Note; Place rebar in the
bottom fold joint.
Level
AlphaFoot.
Note; Place
re-bar between
Alpha Joints
and tack weld to
secure.
Note; Once levels are checked
cut the threaded bar if it sits
above the top of the Joint.
Note: Adjust the bottom
nut to get the correct height.
All content found within this installation guide is approximate. RCR Flooring Products Ltd reserves the right to
amend this installation guide at any time. For further details, please contact RCR Flooring Products Ltd.
RCR Flooring Products Ltd is registered in England & Wales - No. 02815314.
Note; Place a pin at the
cenater of the Joint,
and a wooden wedge
to prevent kick.
