permaban Alpha Joint Installation Manual

www.rcrflooringproducts.com
RCR Flooring Products Limited
Mill Close, Lee Mill Industrial Estate, Ivybridge, Devon, PL21 9GL
t: +44 1752 895288
f: +44 1752 395800
e: info@rcrflooringproducts.com
Permaban AlphaJoint Installation Guide
Using Pin & Weld Method
Installation Guide Issue V2.0
26/11/21

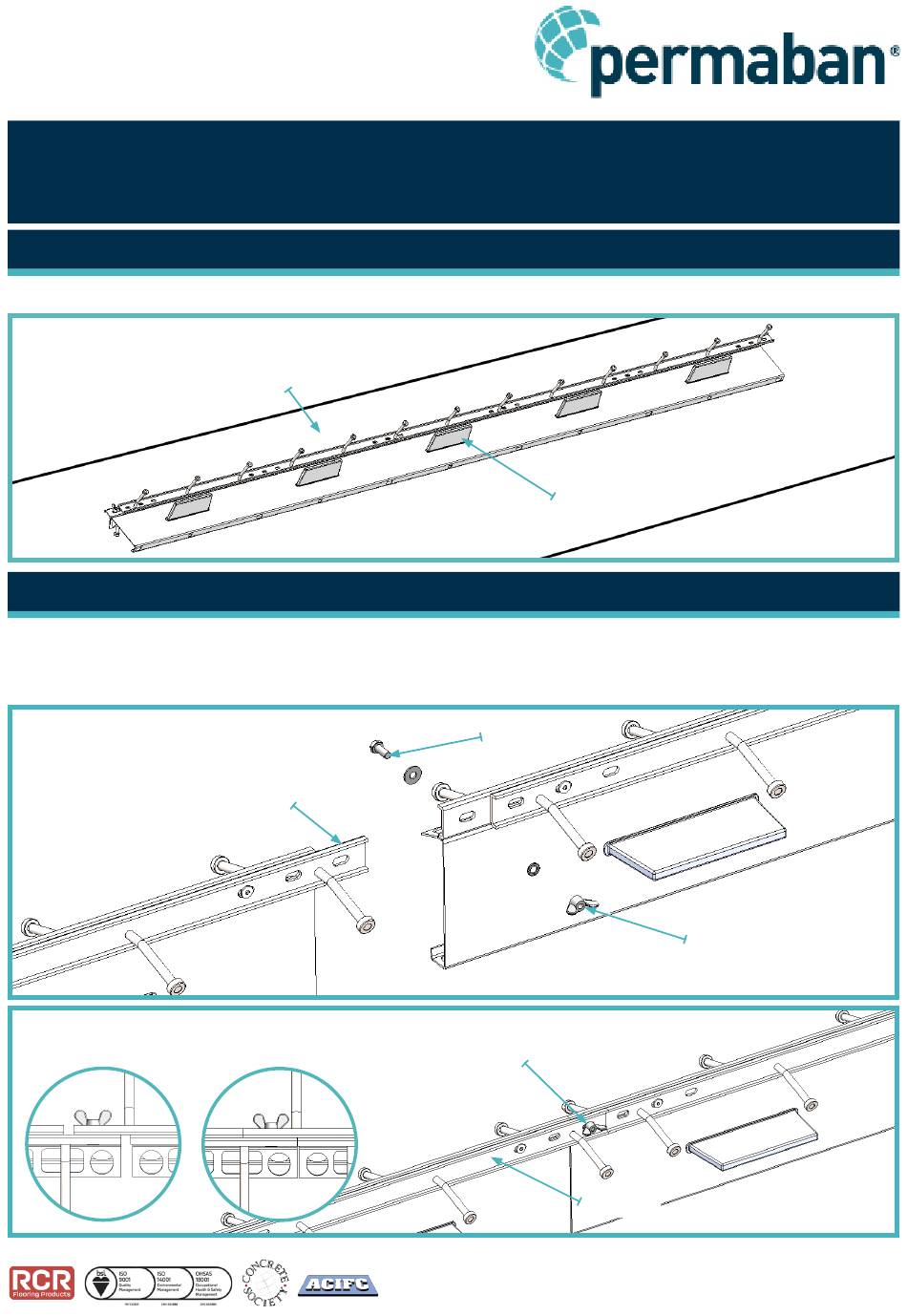

01 Placing the AlphaJoint

Place joints on the floor with sleeves pointing up.

02 Fix joints together

Position joints end to end, unscrew the wing nut and nylon, push the 60mm offsets together and
re-assemble the nylon and wing nut. Note; The CSS top strip may move laterally during transit and
require minor realignment during installation.
Joints must be flush with one another.
✖
Plastic sheet
60mm
Offset
Butterfly/Wing nut must sit
horizontal to top strip.
✔
Sleeve
Nylon
Top strip
