www.rcrflooringproducts.com
RCR Flooring Products Limited
Mill Close, Lee Mill Industrial Estate, Ivybridge, Devon, PL21 9GL
t: +44 1752 895288
f: +44 1752 395800
e: info@rcrflooringproducts.com

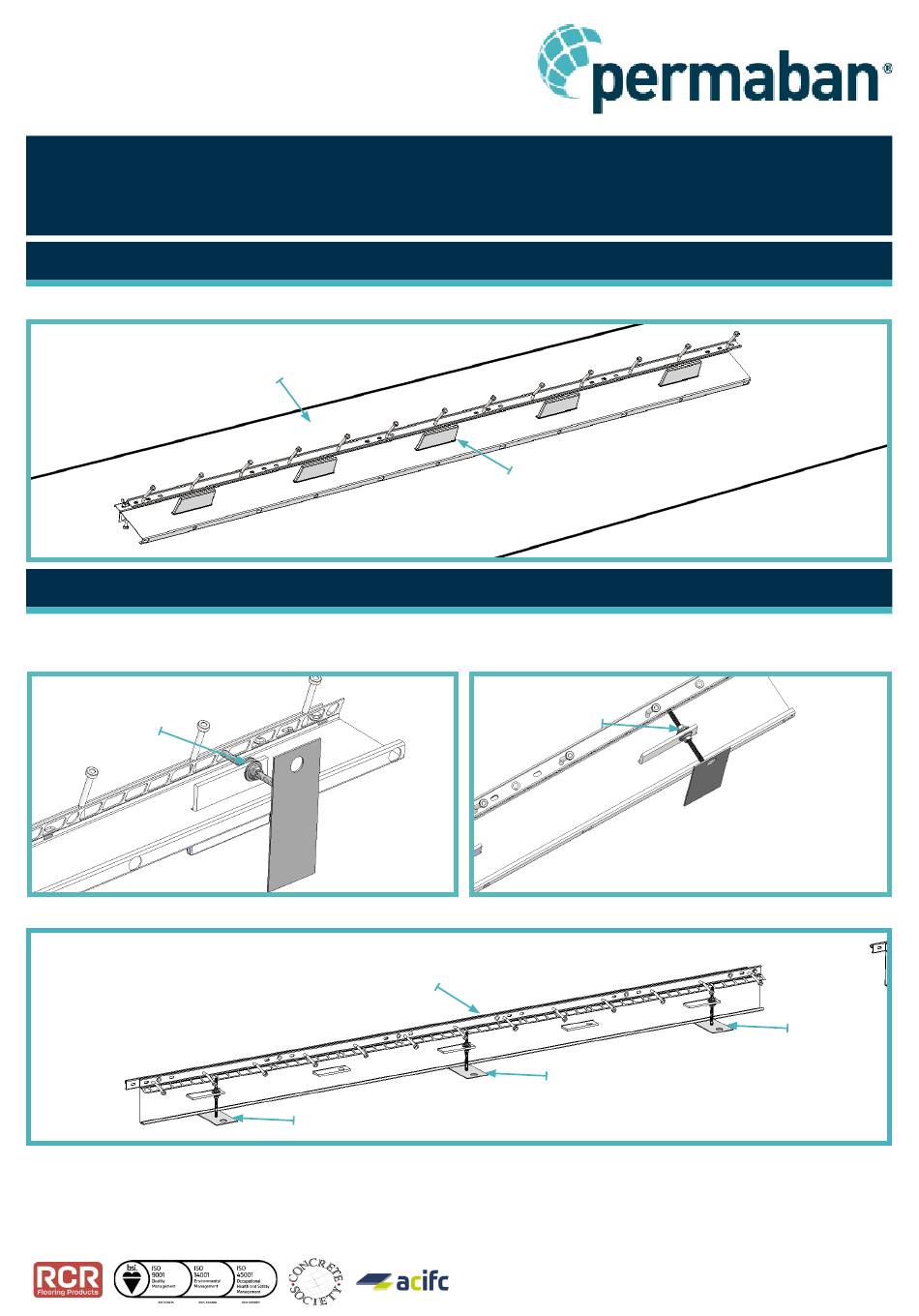

Permaban AlphaJoint Installation Guide
Using AlphaFeet Method
Installation Guide Issue V1.0
05/10/21
01 Placing the AlphaJoint
Place joints on the floor with sleeves pointing up.
Plastic sheet
02 Insert 3 AlphaFeet per Joint
Tilt the Joint and insert the AlphaFoot through the hole of the dowel, then screw on the bolt to secure in
place.
Dowel
hole
Once the steel bolt is secure, pull joint towards you and stand the Joint upright.
Note: 3 Alpha Feet per joint.
Joint upright
Alpha foot
Sleeve
Bolt
Alpha foot
All content found within this installation guide is approximate. RCR Flooring Products Ltd reserves the right to
amend this installation guide at any time. For further details, please contact RCR Flooring Products Ltd.
RCR Flooring Products Ltd is registered in England & Wales - No. 02815314.
Alpha foot

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alpha Joint and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for permaban Alpha Joint

Summary of Contents for permaban Alpha Joint

  • Page 1 RCR Flooring Products Limited Mill Close, Lee Mill Industrial Estate, Ivybridge, Devon, PL21 9GL t: +44 1752 895288 f: +44 1752 395800 e: info@rcrflooringproducts.com Permaban AlphaJoint Installation Guide Using AlphaFeet Method Installation Guide Issue V1.0 05/10/21 01 Placing the AlphaJoint Place joints on the floor with sleeves pointing up.
  • Page 2 Permaban AlphaJoint Installation Guide Using AlphaFeet Method Installation Guide Issue V1.0 05/10/21 Alpha foot Alpha foot Alpha foot Note: Ideal placement for the feet as shown above 03 Fix joints together Position joints end to end, unscrew the wing nut and nylon, push the 60mm offsets together and re-assemble.
  • Page 3 Permaban AlphaJoint Installation Guide Using AlphaFeet Method Installation Guide Issue V1.0 05/10/21 04 Adjust to Height Use the bolts on the AlphaFoot to set the height of the Joint. Then check the Joint is level with a spirit level/ optical level.
  • Page 4 Permaban AlphaJoint Installation Guide Using AlphaFeet Method Installation Guide Issue V1.0 05/10/21 06 Vibrate Concrete Poker vibrate along length of the joint to compact the concrete. Poker Wet concrete 07 Finish Finish concrete, flush to top of the armoured joint ensuring the rail is clearly viable.
