  • Page 1 User manual Constant flow Language Country Article | 9000225 Original Instructions...
  • Page 2 Dear Customer, Thank you for choosing a product from engcon. engcon is the market leader in tiltrotators and tools for excavators. We represent innovation, knowledge and experience, and we develop our products with a focus on the customer's needs. Please visit our website for contact information and details about the rest of our product range.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction 1.1. General......................4 1.2. Scrapping and recycling.................. 4 1.3. Technical support and spare parts..............4 1.4. Product approval..................... 5 1.4.1. Declaration of Incorporation..............5 2. Safety 2.1. General......................6 3. Operation 3.1. Programming sequence.................. 9 3.2.

  • Page 4: Introduction

    - Packaging to be sorted at source and recycled for materials. - Paper to be sorted at source and recycled for materials. If in doubt, contact the environmental manager at engcon. 1.3. Technical support and spare parts Contact information for support and spare parts can be found at www.engcon.com.

  • Page 5: Product Approval

    1.4.1. Declaration of Incorporation The declaration refers to the engcon DC2 control system. Upon reasoned request by a national authority, engcon will undertake to provide relevant information about the machine. The control system may not be put into operation before the machine it will be built into is in conformance with Directive 2006/42/EG.

  • Page 6: Safety

    2 Safety 2. Safety REMARKS The stated safety information is independent of the base machine and directly concerns the engcon DC2. REMARKS Other safety instructions can be found in the tiltrotator user manual. 2.1. General It is important that you read and understand all warnings prior to installation work on this product or before you use it and any accessories supplied.

  • Page 7: Operation

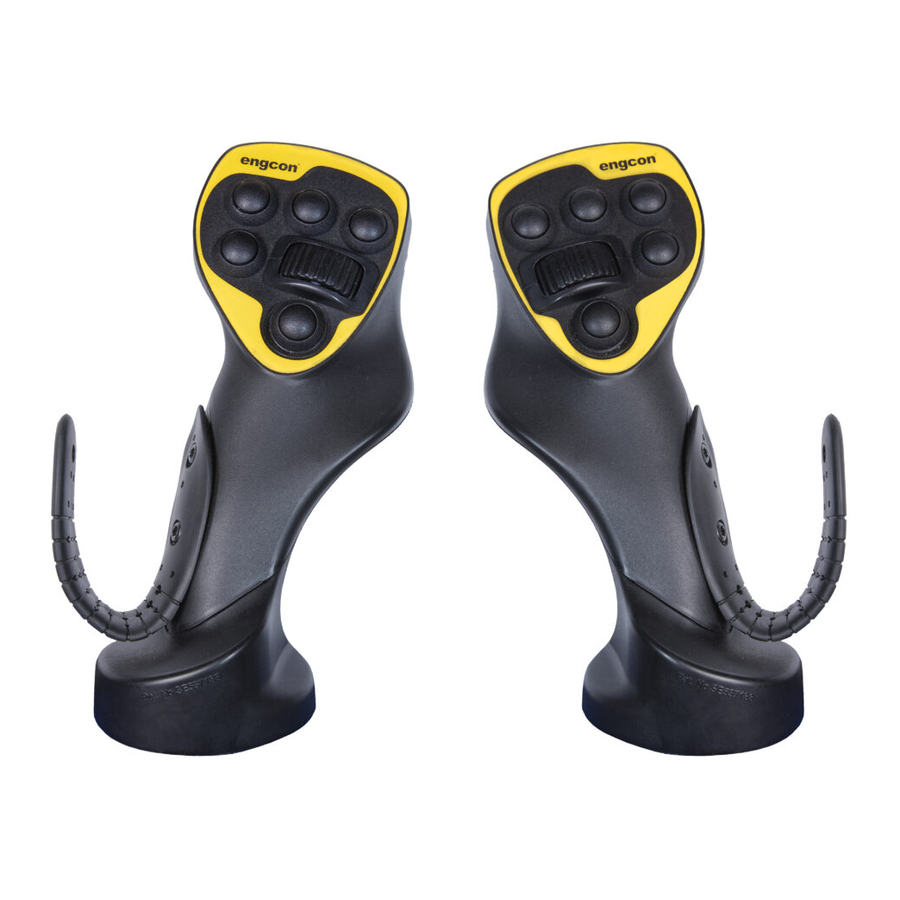

    Make sure you have read and understood the entire chapter entitled Operation before beginning the programming sequence. The constant flow function in DC2 enables certain selected functions to run without actively operating DC2 controls. When the constant flow function is installed according to 9000224 Installation Instructions, selected functions can be activated to run without operating the controls;...
  • Page 8 3 Operation IMPORTANT Maintenance and repair of the electrical system may only be carried out by professionally qualified persons.

  • Page 9: Programming Sequence

    EXTRA 2 2. Press the constant flow button; after 3 seconds a buzzer will sound in the DC2 cabin module. Release the function roller/button: - Speed and direction are locked for the constant flow functions in operation.

  • Page 10: Activation Sequence

    1. Hold down the constant flow button; selected functions are activated with the programmed speed and direction. 2. After 3 seconds a buzzer will sound in the DC2 cabin module. If the operator releases the button within 2 seconds after the audible signal (buzzer in the DC2 cabin module will sound during these 2 seconds): - The constant flow functions are activated.

  • Page 11: Deactivation Of Constant Flow

    3 Operation Check that constant flow is functioning (e.g. that the rotating brush is rotating). Check that the indicator lamp is on. Position Description Constant flow indicator lamp in the joystick button with LED. Same as the button selected for constant flow activation. Indicator lamp that lights up when constant flow is activated installed in a conspicuous place in the cab IMPORTANT...
  • Page 12 3 Operation - The constant flow button is depressed. - The safety gate is opened. - Faulty constant flow button.

  • Page 13: Troubleshooting

    Open and close the safety gate. After a 2-second audible signal Activation interval exceeded. During the activation system, from the DC2 cabin module, the constant flow button must be the selected function will stop released within 2 seconds. working. Nothing happens when a constant...
  • Page 14 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 15 North America Inc. 2666 State St. 9, Hamden, CT 06517 Phone +1 (203) 691 5920, northamerica@engcon.com www.engcon.com...
