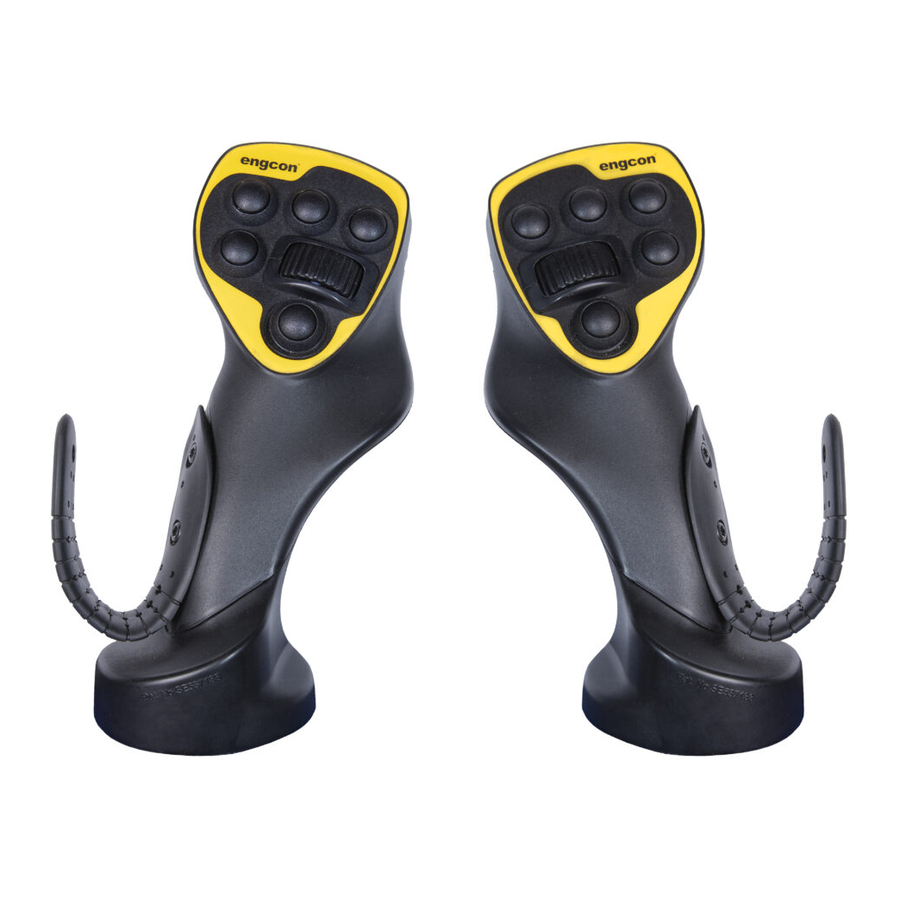

INSTALLATION INSTRUCTIONS
engcon DC2
|
Version
201702
Part no. | 841616
| ENGCON MIG2 |
Translation of the original Swedish
instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Engcon DC2

  • Page 1 INSTALLATION INSTRUCTIONS engcon DC2 Version 201702 Part no. | 841616 | ENGCON MIG2 | Translation of the original Swedish instructions...
  • Page 2 These instructions are designed to describe replacement of the original base machine joystick with the joystick supplied with the engcon DC2. It is important that the joysticks are used together with engcon DC2 for the Declaration of Incorporation in the installation instructions to be valid.
  • Page 3: Table Of Contents

    Build your own decal ..................18 5.2 Affix the decals in a spot easily visible to the driver ........... 19 Cut away misleading information on the original decals ........19 Update the engcon instructions for use ............. 20 Update the machine's original instructions for use ..........20 Decals for multiple user banks ................21...
  • Page 4: Safety Directives

    The risks and how to avoid them. intended operator should therefore set aside time to learn how to safely handle the engcon DC2 before the machine is used. 1�2 Safety checklist WARNING! WARNING! Defective or damaged equipment can...
  • Page 5: The Environment

    DC2 1�3 The environment engcon's tiltrotators comprise at least 99 per cent recyclable material. engcon makes constant efforts to reduce its environmental impact. All assembly and/or service work must take place in compliance with applicable legislation and ordinances within the en- vironmental, health and occupational safety areas.
  • Page 6: Checking Delivered Parts

    Instruction Manual 3 Checking delivered parts 3�1 841519 MIG2 2 rollers Position Part Designation Quantity 841288 Joystick MIG2, left, one roller 841289 Joystick MIG2, right, one roller 841190 Joystick cabling 841868 Decal, MIG2 841869 Decal, MIG2 841161 Decal, machine functions symbol library – transparent 841858 Installation kit 841184...
  • Page 7: 841522 Mig2 4 Rollers

    DC2 3�4 841522 MIG2 4 rollers Position Part Designation Quantity 841291 Joystick MIG2, left, two rollers 841292 Joystick MIG2, right, two rollers 841190 Joystick cabling 841868 Decal, MIG2 841869 Decal, MIG2 841161 Decal, machine functions symbol library – transparent...
  • Page 8: 841525 Mig2 5 Rollers, Fnr

    Instruction Manual 3�7 841525 MIG2 5 rollers, FNR Position Part Designation Quantity 841294 Joystick MIG2, left, three rollers 841293 Joystick MIG2, right, two rollers, FNR 841190 Joystick cabling 841868 Decal, MIG2 841869 Decal, MIG2 841161 Decal, machine functions symbol library – transparent 841858 Installation kit 842047...
  • Page 9: Joystick Installation

    DC2 4 Joystick installation 4�1 Area A 4.1.1 Removal of original joystick 4.1.2 Installation, screw You may need to shorten the screw to the appropriate length before you mount it as shown in the picture below.
  • Page 10: Cable Routing

    Instruction Manual 4.1.3 Cable routing 4.1.4 Attachment...
  • Page 11: Reinstallation

    DC2 4.1.5 Reinstallation...
  • Page 12: Hand Support

    Instruction Manual 4.1.6 Hand support Position Part Designation 841892 Cover Disc Hand Support Left 841893 Cover Disc Hand Support Right 841865 Hand Support Left 841866 Hand Support Right 4.1.7 Attachment Kit Position Part Designation 8000196 Attachment Kit MIG2 Left 8000195 Attachment Kit MIG2 Right...
  • Page 13: Standard Bellow Adapter

    DC2 4.1.8 Standard Bellow Adapter Position Part Designation 1033831 Bellow Adapter 4.1.9 Bellow Adapter Kit Position Part Designation 1039301 Bellow Adapter Left 1039300 Bellow Adapter Right 8000191 Bellow Adapter Kit - CAT 308E - MIG2 8000190 Bellow Adapter Kit - Liebherr - MIG2...
  • Page 14: Area B

    Instruction Manual 4�2 Area B 4.2.1 MIG2 Left (842020) OUT2 OUT3 OUT1 A1 - OUT1 A2 - OUT2 BK/WH +12/24V WH/BN WH/GN LD1-SW6 WH/YE WH/GY WH/PK BK/WH WH/BU RD3-SW7 Position Part Designation 841288 Joystick MIG2, left, one roller 841291 Joystick MIG2, left, two rollers 841294 Joystick MIG2, left, three rollers...
  • Page 15: Mig2 Right (852047)

    DC2 4.2.2 MIG2 Right (852047) OUT2 OUT1 OUT3 A1 - OUT1 A2 - OUT2 841190 +12/24V RD1-SW6 GY/PK GY/RD RD/BU RD2-SW7 BK/WH WH/GN WH/YE Position Part Designation 841289 Joystick MIG2, right, one roller 841292 Joystick MIG2, right, two rollers...
  • Page 16: Mig2 Right Fnr (852046)

    Instruction Manual 4.2.3 MIG2 Right FNR (852046) OUT2 OUT1 OUT3 A1 - OUT1 A2 - OUT2 841190 +12/24V RD1 - SW6 GY/PK GY/RD RD/BU RD2 - SW7 BK/WH WH/GN WH/YE BU/WH BK/GY BK/BU Position Part Designation 841290 Joystick MIG2, right, one roller, FNR 841293 Joystick MIG2, right, two rollers, FNR 842008...
  • Page 17: Area C

    DC2 4�3 Area C Pos Part 841105 841190...
  • Page 18: Documenting The Installation

    Instruction Manual 5 Documenting the installation 5�1 Build your own decal Pos Designation 841161 841868 or 848869 Examples: USER 1 SHEAR Pos Designation USER 1 decal SHEAR decal (tilt hydraulics)
  • Page 19: Affix The Decals In A Spot Easily Visible To The Driver

    USER 1 USER 2 SHEAR Pos Designation Example, decal location 5�3 Cut away misleading information on the original decals Note that machine functions that still apply must not be cut away. Note that engcon decals do not fully replace the machine's original decals.
  • Page 20: Update The Engcon Instructions For Use

    Pos Designation 842047 Locate the decal such that it makes clear the joystick has been replaced and that there is information on new functions in the engcon instructions for use. Where necessary, emphasise changes by crossing out misleading or ambiguous information.
  • Page 21: Decals For Multiple User Banks

    DC2 5�6 Decals for multiple user banks If more than one user bank is activated, the installer must affix one decal per user bank. The cab module must then also be fitted so that the driver can see the display and there- by see which user bank is active. The installer is then responsible for ensuring that there is one decal per user bank and that the base machine's instruction manual is updated with this information.
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24 TOOL SYSTEMS FOR INCREASED PROFITABILITY engcon Sweden AB Transportgatan 5, SE-833 36 Strömsund Tel +46 670 650 400 Fax +46 670 650 457 Email sweden@engcon.com...
