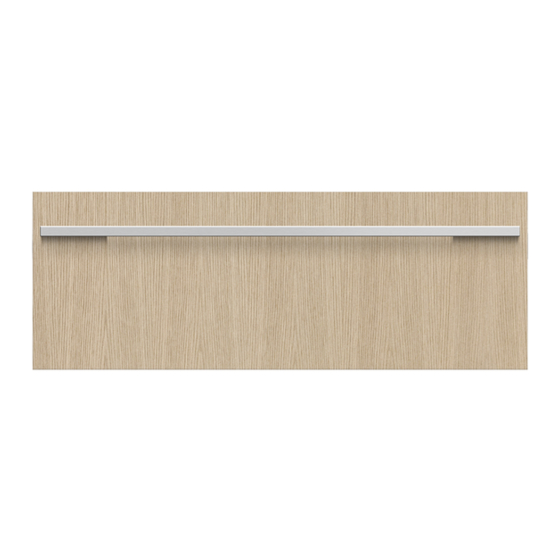

- Page 1 WARMING DRAWER INTEGRATED W30SDEI INSTALLATION GUIDE US CA...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Tip Hazard Failure to follow this advice may result in This product may tip. Keep children away and electrical shock or death. take care. Failure to follow this advice may result in injury. •... - Page 4 SAFETY AND WARNINGS INTEGRATED WARMING DRAWER READ AND SAVE THIS GUIDE WARNING! To reduce the risk of fire, injury to persons or damage when using the appliance, follow the important safety guides listed below. Read all the instructions before using the appliance. Installation Please make this information available to the person installing the product.
-
Page 5: Electrical Specifications
UNPACK YOUR PRODUCT ELECTRICAL SPECIFICATIONS Remove the warming drawer and accessories box from the packaging. Recycle the materials All electrical work must be done by a qualified electrician, or a Fisher & Paykel trained and that can be reused. Dispose packaging materials in accordance with local regulations on waste supported service technician. -
Page 6: Parts Supplied
WARMING DRAWER WARMING DRAWER Contemporary style handle kit MINIMAL WB24SDEB2 & WB30SDEB1 CONTEMPORARY WB24SDEX2 & WB30SDEX1 PROFESSIONAL WB30SPEX1 INTEGRATED WB30SDEI1 INTEGRATED W30SDEI SERVICE & WARRANTY SERVICE ET GARANTIE ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ SERVIZIO E GARANZIA SERVICE & GARANTIE HUOLTO JA TAKUU SERVICE OG GARANTI 保... -
Page 7: Product Dimensions
PRODUCT DIMENSIONS WB30SDEI PRODUCT DIMENSIONS A Overall height 10 11/16 side bracket 28 9/16 B Overall width* † 725 -730 - 28 3/4 C Overall depth** 22 3/16 D Height of chassis 10 11/16 E Width of chassis*** 27 13/16 F Depth of chassis**** 21 9/16 bracket cover... -
Page 8: Custom Panel Dimensions
CUSTOM PANEL DIMENSIONS The custom panel must be supplied by the customer to match the cabinetry. WB30SDEI FRONT PANEL DIMENSIONS A Height of custom panel min 10 1/2 min 267 B Width of custom panel min 29 15/16 min 760 C Depth of custom panel min 5/8 - max 13/16 min 16 - max 20... -
Page 9: Cabinetry Dimensions
CABINETRY DIMENSIONS Panel above product Upper shelf WB30SDEI Custom panel CABINETRY DIMENSIONS INCHES A Inside height of cavity* min 10 3/4 min 273 min 28 9/16 - min 725 - B Inside width of cavity Lower shelf max 28 3/4 max 730 Panel below product C Inside depth of cavity... -
Page 10: Installation Options
INSTALLATION OPTIONS STANDALONE INSTALLATION COMBINED WITH SINGLE OVEN This installation is suitable for Minimal, Contemporary & Professional Warming drawers. A fixed This installation combines 30" Warming Drawer with 30" Fisher & Paykel wall oven. The shelf must be installed above the warming drawer. warming drawer can support the weight of the oven sitting directly on top. - Page 11 INSTALLATION OPTIONS COMBINED WITH COMPANION PRODUCT COMBINED WITH DOUBLE OVEN This installation combines 24' or 30" Warming Drawer with 24" or 30" Fisher & Paykel This installation combines 30" Warming Drawer with a 30" Fisher & Paykel double oven. The companion product.
- Page 12 INSTALLATION OPTIONS ATTACH THE HANDLE TRIPLE STACK COMBINATION To attach the handle, refer to the installation guide included with the Handle kit (purchased separately). This combination is suitable for 30" Warming Drawers. A shelf is required above the oven to support the 30"...
-
Page 13: Installing The Drawer
INSTALLING THE DRAWER Ensure the cabinetry is square and base is level. Secure the bracket cover and chassis flange to the side brackets with T20 machine screws (6x). side bracket spacer bracket cover side bracket Use the supplied spacer to position the side brackets (2x) to correct depth. - Page 14 INSTALLING THE DRAWER Drill pilot holes (6x) into the Align the custom panel carefully custom panel through the screw with the cabinetry. holes in the door frame. Ensure the custom panel is Be careful not to drill through to correctly aligned and centered the front of the panel.
-
Page 15: Adjusting The Depth
ADJUSTING THE DEPTH ADJUSTING THE HEIGHT The depth of the front panel of the warming drawer can be adjusted to align with the The front panel of the warming drawer can be adjusted vertically to align with the surrounding surrounding cabinetry. cabinetry. -
Page 16: Installer Checklist
INSTALLER CHECKLIST FP WARMER DRAWER INTERFACE LOGIC_V1 PRODUCT OFF USER PRESSES ON/OFF BUTTON IMPORTANT! Read all installation instructions in this manual to see if the unit has been correctly installed. ALL OT Ensure that installation has been completed correctly before use. TEMPER MEDIUM Ensure that:... - Page 18 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2021. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
