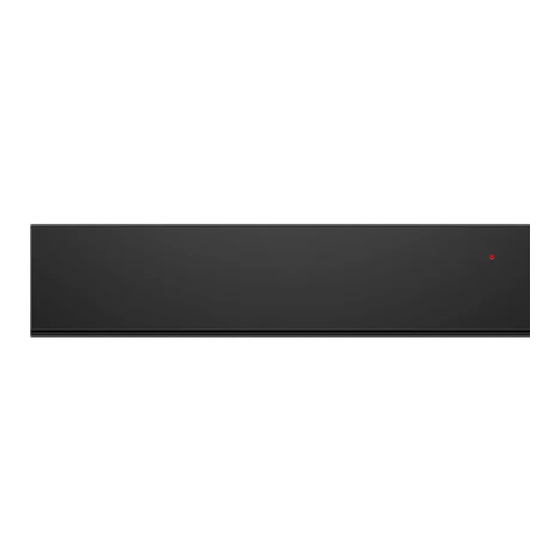

- Page 1 WARMING DRAWER MINIMAL WB60SMG1-SET, WB60SMB1-SET & WB60SMTB1-SET CONTEMPORARY WB60SDB1-SET & WB60SDTB1-SET USER GUIDE NZ AU UK IE SG...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Before you begin Using your Warming Drawer Functions Delayed Start Loading your appliance Using the wire shelf Cooking charts Care and troubleshooting Manufacturer’s Warranty and Service guide (NZ AU) Manufacturer’s Warranty and Service guide (UK IE) Customer care (UK IE) Registration To register your product visit our website: fisherpaykel.com/register... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • If the product is damaged, switch the appliance off and disconnect it from the power supply to avoid possible electric shock. WARNING! Cut Hazard Failure to use caution could result in injury. - Page 5 SAFETY AND WARNINGS WARNING! Fire Hazard Failure to follow this advice may result in overheating, burning, and injury. • Flammable materials should not be stored in the appliance or near its surface. WARNING! Tipping Hazard This product may tip. Keep children away and take care.
- Page 6 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! To reduce the risk of fire, electrical shock, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the instructions before using the appliance. Use the appliance only for its intended purpose as described in these instructions.
- Page 7 SAFETY AND WARNINGS Safety Do not touch hot surfaces. Use handles or knobs. Do not sit or lean on the appliance. Damage to the surface of the glass may cause it to shatter. Do not store hazardous objects that can explode like containers with gas or air chambers (e.g spray cans).
-
Page 8: Before You Begin
BEFORE YOU BEGIN Ensure the installer has completed the final checklist in the installation instructions. Read this guide, taking special note of the Safety and warnings section. Drawer features & accessories 1 Control panel 2 Indicator light 3 Push-to-open door 4 Serial plate* 5 Heated glass base 6 LED internal lighting... - Page 9 BEFORE YOU BEGIN PANTONE COOL GRAY 2 - THAT CAN BE BACKLIT WHITE Control panel All layers printed and illuminated (locking layer) Control panel features 1 Power On/Off printed only 2 Temperature indicator 3 Temperature controls 4 Duration indicator 5 Duration controls 6 Heat modes GRAPHIC IS CORRECT IN SIZE AND SCALE WHEN LINE LENGTH IS CORRECT control panel...
-
Page 10: Using Your Warming Drawer
USING YOUR WARMING DRAWER First time use If using the Warming Drawer for the first time, three LEDs in temperature controls are illuminated at start up. For push-to-open models, touch the centre-front of the drawer to open. Do not force the drawer open. Touch the button to switch the drawer Select the desired heating function. -
Page 11: Functions
FUNCTIONS Your Warming Drawer is designed to utilise the heated glass base and rear fan in differing heat levels and durations to provide optimal performance. Each function has a default time and temperature setting that illuminates upon selection. These settings can be customised by manually adjusting the duration and temperature controls in place of a pre-set function. - Page 12 FUNCTIONS RAPID PROOF Gentle heat is generated from heated glass base Heat is produced for 30 minutes. Provides warm and draught-free enviroment for proofing dough for bread making or pizza. DEHYDRATE Heat circulates from the heated glass base and rear fan Heat is circulated for four hours.
-
Page 13: Delayed Start
DELAYED START When using Delayed Start, the Warming Drawer will automatically switch on at a set time and turn off at the end of a cycle. For push-to-open models, touch the centre-front of the drawer to open. Do not force the drawer open. Touch the button and select the desired function. -
Page 14: Loading Your Appliance
LOADING YOUR APPLIANCE 20 Cappuccino cups 42 Espresso cups Diameter guide Diameter guide 20x Ø92 mm 48x Ø58mm Plate settings Diameter guide Diameter guide for tall models 6x Ø250mm Dinner 16x Ø250mm Dinner 6x Ø230mm Soup bowl 16x Ø180mm Bread & Butter 6x Ø180mm Bread &... -
Page 15: Using The Wire Shelf
USING THE WIRE SHELF The wire shelf is available for tall models to increase the loading surface. wire shelf Insert the wire shelf in the left or right hand side of the Warming Drawer. -
Page 16: Cooking Charts
COOKING CHARTS The information in these charts is for guidance only. Refer to your recipe or the packaging and be prepared to adjust the cooking times and settings accordingly. INTERNAL SEAR TIME FOOD TYPE FUNCTION g/kg TEMP TIME (mins/side) (°C) MEAT, BEEF STEAK Rare Slow Cook... - Page 17 COOKING CHARTS TEMPERATURE RECOMMENDED OTHER USES FUNCTION DURATION TIPS SETTING COOKWARE Rapid YOGHURT Low (1) 5-8 hrs Glass Jars/Ramekins Covered Proof MELTING CHOCOLATE Cups Low (2) 30 mins Heatproof Cookware Uncovered Rapid DISSOLVING GELATINE Low (1) 30 mins Heatproof Cookware Uncovered Proof BATCH COOKING...
-
Page 18: Care And Troubleshooting
CARE AND TROUBLESHOOTING Cleaning the drawer exterior and interior Ensure that the appliance is turned off or set in before cleaning. STANDBY MODE Do not use high pressure or steam cleaners. Remove any soiling or excess cleaning solution immediately. Clean the surfaces with a soft cloth dampened with water and detergent. Rub in the direction of the polish lines and dry immediately with a soft cloth. -
Page 19: Manufacturer's Warranty And Service Guide (Nz Au)
MANUFACTURER’S WARRANTY AND SERVICE GUIDE (NZ AU) To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, or view online at https://www.fisherpaykel.com/nz/ help-and-support/warranty-information To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, refer to your separate warranty and service book or view online at https://www.fisherpaykel.com/au/help-and-support/... -
Page 20: Manufacturer's Warranty And Service Guide (Uk Ie)
MANUFACTURER’S WARRANTY AND SERVICE GUIDE (UK IE) To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, or view online at https://www.fisherpaykel.com/uk/ help-and-support/warranty-information To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, or view online at https://www.fisherpaykel.com/ie/ help-and-support/warranty-information... -
Page 21: Customer Care (Uk Ie)
CUSTOMER CARE (UK IE) Before you call for service or assistance Check the things you can do yourself. Refer to your User guide and check: 1 Your product is correctly installed. 2 You are familiar with its normal operation. 3 You have read the ‘Troubleshooting’ section. If after checking these points you still need assistance or parts, please refer to your nearest Fisher & Paykel trained and supported service technician, Customer Care, or contact us through our website fisherpaykel.com. - Page 22 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
