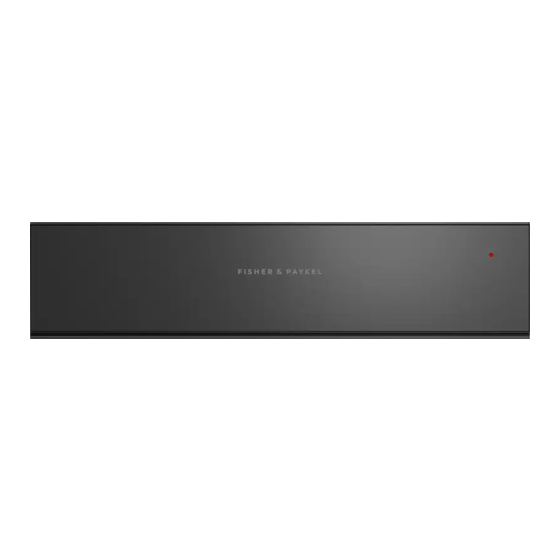

- Page 1 WARMING DRAWER MINIMAL WB24SDEB2 & WB30SDEB1 CONTEMPORARY WB24SDEX2 & WB30SDEX1 PROFESSIONAL WB30SPEX1 INTEGRATED WB30SDEI1 USER GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Before you begin Using your Warming Drawer Functions Delayed Start Sabbath mode Loading your appliance Using the wire shelf Cooking charts Care and troubleshooting Service and warranty Registration To register your product visit our website: fisherpaykel.com/register... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • If the product is damaged, switch the appliance off and disconnect it from the power supply to avoid possible electric shock. WARNING! Cut Hazard Failure to use caution could result in injury. - Page 5 SAFETY AND WARNINGS WARNING! Fire Hazard Failure to follow this advice may result in overheating, burning, and injury. • Flammable materials should not be stored in the appliance or near its surface WARNING! Tipping Hazard This product may tip. Keep children away and take care.
- Page 6 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! To reduce the risk of fire, electrical shock, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the instructions before using the appliance. Use the appliance only for its intended purpose as described in these instructions.
- Page 7 SAFETY AND WARNINGS Safety Do not touch hot surfaces. Use handles or knobs. Do not sit or lean on the appliance. Damage to the surface of the glass may cause it to shatter. Do not store hazardous objects that can explode like containers with gas or air chambers (e.g spray cans).
-
Page 8: Before You Begin
BEFORE YOU BEGIN Ensure the installer has completed the final checklist in the installation instructions. Read this guide, taking special note of the Safety and warnings section. Drawer features & accessories 1 Control panel 2 Indicator light 3 Push-to-open door* 4 Serial plate** 5 Heated glass base 6 LED internal lighting... - Page 9 BEFORE YOU BEGIN PANTONE COOL GRAY 2 - THAT CAN BE BACKLIT WHITE Control panel All layers printed and illuminated (locking layer) Control panel features 1 Power On/Off printed only 2 Temperature indicator 3 Temperature controls 4 Duration indicator 5 Duration controls 6 Heat modes GRAPHIC IS CORRECT IN SIZE AND SCALE WHEN LINE LENGTH IS CORRECT control panel...
-
Page 10: Using Your Warming Drawer
USING YOUR WARMING DRAWER First time use If using the Warming Drawer for the first time, three LEDs in temperature controls are illuminated at start up. For push-to-open models, touch the centre-front of the drawer to open. Do not force the drawer open. Touch the button to switch the drawer ON. -
Page 11: Functions
FUNCTIONS Your Warming Drawer is designed to utilise the heated glass base and rear fan in differing heat levels and durations to provide optimal performance. Each function has a default time and temperature settings that illuminate upon selection. These settings can be customised by manually adjusting the duration and temperature controls in place of a pre-set function. - Page 12 FUNCTIONS RAPID PROOF Gentle heat is generated from heated glass base Heat is produced for 30 minutes. Provides a warm and draft-free enviroment for proofing a dough for breadmaking and pizza. DEHYDRATE Heat circulates from the heated glass base and rear fan Heat is circulated for four hours.
-
Page 13: Delayed Start
DELAYED START When using Delayed Start, the Warming Drawer will automatically switch on at a set time and turn off at the end of a cycle. For push-to-open models, press the centre- front of the drawer to open. Do not force the drawer open. Touch the button and select the desired function. -
Page 14: Sabbath Mode
SABBATH MODE This setting is designed for religious faiths that observe a ‘no work’ requirement on the Sabbath. While your drawer is in , operation of up to 72 hours can be set and SABBATH MODE the safety shut-off and illumination features are deactivated. Activating SABBATH MODE: Touch the button for 10 seconds to... -
Page 15: Loading Your Appliance
LOADING YOUR APPLIANCE For WB24S models 20 Cappuccino cups 42 Espresso cups Diameter guide Diameter guide 20x Ø3 5/8” (92 mm) 48x Ø2 1/4” (58mm) Plate settings Mixed load Diameter guide 6x Ø9 13/16” (250mm) Dinner 6x Ø9 1/16” (230mm) Soup bowl 6x Ø7 1/16”... - Page 16 LOADING YOUR APPLIANCE For WB30S models 54 Espresso cups 24 Cappuccino cups Diameter guide Diameter guide 48x Ø2 1/4” (58mm) 20x Ø3 5/8” (92 mm) Plate settings Mixed load Diameter guide 16x Ø9 13/16” (250mm) Dinner 16x Ø9 1/16” (230mm) Soup 16x Ø7 1/16”...
-
Page 17: Using The Wire Shelf
USING THE WIRE SHELF The wire shelf is available for all WB30 models to increase the loading surface. wire shelf Insert the wire shelf in the left or right hand side of the Warming Drawer. -
Page 18: Cooking Charts
COOKING CHARTS The information in these charts is for guidance only. Refer to your recipe or the packaging and be prepared to adjust the cooking times and settings accordingly. Avoid drying food types with high moisture content e.g. tomatoes or pineapple. INTERNAL INTERNAL SEAR TIME... - Page 19 COOKING CHARTS FOOD TYPE FUNCTION TIME FRUIT Apple, Pear, Banana Dehydrate 4-8 hrs VEGETABLES Ginger Dehydrate 4-6 hrs Carrots, Peas Dehydrate 4-6 hrs HERBS Rosemary, Dill, Thyme, Dehydrate 2-4 hrs Bay leaves, Oregano BREAD DOUGH Rapid Proof 30 mins PIZZA DOUGH Rapid Proof 30 mins TEMPERATURE...
-
Page 20: Care And Troubleshooting
CARE AND TROUBLESHOOTING Cleaning the drawer exterior and interior Ensure that the appliance is turned off or set in before cleaning. Do not STANDBY MODE use high pressure or steam cleaners. Remove any soiling or excess cleaning solution immediately. Clean the surfaces with a soft cloth dampened with water and detergent. Rub in the direction of the polish lines and dry immediately with a soft cloth. -
Page 21: Service And Warranty
SERVICE AND WARRANTY Before you call for service or assistance Refer to the installation guide and your user guide to: Ensure your product is correctly installed. Ensure you are familiar with its normal operation. Check the model and serial numbers. Check the date of installation. - Page 24 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
