GFM30731C
Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
where you purchased the product.
1-866-988-3300
Please call our Toll-Free Customer Service Hotline at:
Between 8:00 AM and 5:00 PM Pacific Standard Time, Monday through Friday
To expedite any future warranty claims, please retain the instruction sheet, warranty card
and receipt for future use.
Care and Maintenance
Store furniture in an upright position. Be careful not to allow water to build up in frames, as this will cause
corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water.
Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax
for maximum protection against UV rays and/or salty, damp air. If your set includes cushions, slings, and/or
an umbrella, they may be cleaned by hand with a solution of soap and water with a clean water rinse.
(Never machine wash cushions, slings or umbrella covers as this will result in shrinkage or damage). After
cleaning cushions, tip on end and allow to drip dry. (Never use a commercial or home dryer to tumble dry
fabric goods). Do not use bleach or solvents to clean any product! This will void the warranty.
14

Advertisement

loading

Summary of Contents for Hanover GFM30731C

  • Page 1 GFM30731C Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE where you purchased the product. 1-866-988-3300 Please call our Toll-Free Customer Service Hotline at:...
  • Page 2 GFM30731C Outdoor Furniture 1-Year Limited Warranty Program For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.

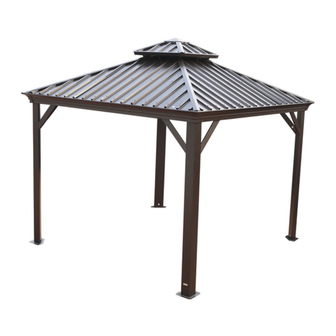

  • Page 3 Assembly Instructions GFM30731C 9.8'x9.8'x9.5' Hard Top Gazebo Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. -5 p.m., PST Monday - Friday Retain this manual for future use.
  • Page 4: Parts And Tools

    GFM30731C Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Post Middle Connecting Part Long Beam 1 Incline Outer Metal Part Long Beam 2 Border Tube Outer Metal Part Corner Incline Tube Top Plate Middle Incline Tube Bottom Plate...
  • Page 5 GFM30731C Top Border Tube Plastic Washer Top Cover Plate Ground Spike Cover Plate Wrench Hex Wrench Metal Plate 1 Metal Plate 2 Metal Plate 3 Metal Plate 4 Metal Plate 5 Metal Plate 6 Metal Plate 7 Post Base Plate...
  • Page 6 GFM30731C Right Corner Support Bar Left Corner Support Bar Corner Fitting WARNING: To avoid damage of this production, please use either the carton or another soft Middle Fitting surface such as carpet as a working surface to prevent product damage during assembly.
  • Page 7 GFM30731C Gazebo Assembly Step 1:  Attach the post base cap (L1) and the post base plate (L) to the posts (A) using M6x15 combination bolts (AA).  Repeat this step for the other three posts (A).  Fully tighten the bolts using the hex wrench (II).
  • Page 8 GFM30731C Step 3:  Attach the assembled long beam (B & B1) to the two posts (A) using M6x40 combination bolts (CC).  Repeat this step for the other two posts (A).  Do not fully tighten all the bolts at this step.
  • Page 9 GFM30731C Step 5:  Attach the left corner support bar (N1) to the long beam 2 (B1) by using M6x15 combination bolts (AA).  Attach the right corner support bar (N) to the long beam1 (B) by using M6x15 combination bolts (AA).
  • Page 10 GFM30731C Step 7:  Attach the corner incline tube (C) to the post (A) by using M6x15 combination bolts (AA) through the corner fitting.  Insert the top frame plug (P) into the corner incline tube (C) and the top frame tube (E) as shown below.
  • Page 11 GFM30731C Step 9:  Attach the top corner incline tube (C2) and the top border tube (F2) to the incline outer metal part (R) using the M6x15 combination bolt (AA) as shown below.  Insert the top corner incline tube (C2) into the bottom plate (T).
  • Page 12 GFM30731C Step 11:  Attach the top cover plate (G) to the metal plate 1 (H) using the M6x40 combination bolts (CC).  Attach the top plate (S) to the bottom plate (T) by using the M6x30 combination bolt (BB) and plastic washer (FF).
  • Page 13 GFM30731C Step 13:  Attach the border tube1 (F) and the border tube 2 (F1) to the corner incline tube (C) using the M6x15 combination bolts (AA).  Attach the border tube1 (F) and the border tube 2 (F1) to the middle incline tube (C1) using the M6x15 combination bolts (AA).
  • Page 14 GFM30731C Step 15:  Attach the metal plate 7 (K1) and the metal plate 6 (K) to metal plate cover component (P1) using the M6x15 combination bolts (AA).  Do not fully tighten all the bolts at this step. Step 16: ...
  • Page 15 GFM30731C Step 17:  Attach the metal plate 2 (H1) and the metal plate 3 (H2) to the border tube (F & F1) using the M6x30combination bolts (BB).  Attach the metal plate 2 (H1) and the metal plate 3 (H2) to the corner incline tube (C) using the M6x15 combination bolts (AA).
  • Page 16 GFM30731C Step 19:  Attach the incline outer metal part (R) and the border tube outer metal part (R1) to the assembled frame using the M6x15 combination bolts (AA) as shown below.  Do not fully tighten all the bolts at this step.
