Hanover GRM00696G Assembly Instructions Manual

Hanover GRM00696G Assembly Instructions Manual

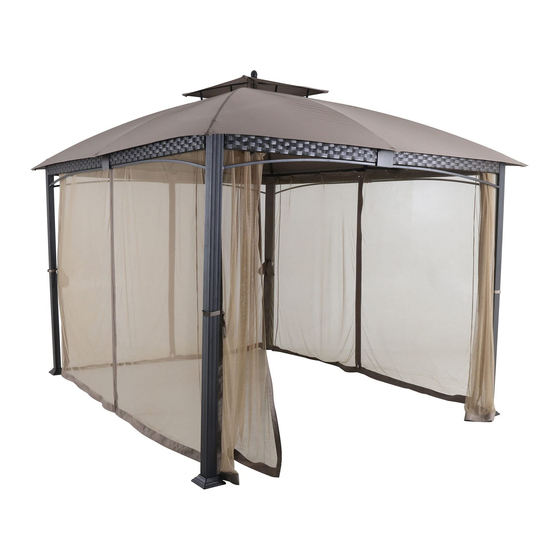

Aluminum and steel gazebo with netting

Advertisement

Quick Links

GRM00696G
Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
where you purchased the product.
1-866-988-3300
Please call our Toll-Free Customer Service Hotline at:
Between 8:00 AM and 5:00 PM Pacific Standard Time, Monday through Friday
To expedite any future warranty claims, please retain the instruction sheet, warranty card
and receipt for future use.
Care and Maintenance
Store furniture in an upright position. Be careful not to allow water to build up in frames, as this will cause
corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water.
Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax
for maximum protection against UV rays and/or salty, damp air. If your set includes cushions, slings, and/or
an umbrella, they may be cleaned by hand with a solution of soap and water with a clean water rinse.
(Never machine wash cushions, slings or umbrella covers as this will result in shrinkage or damage). After
cleaning cushions, tip on end and allow to drip dry. (Never use a commercial or home dryer to tumble dry
fabric goods). Do not use bleach or solvents to clean any product! This will void the warranty.
11

Advertisement

loading

Summary of Contents for Hanover GRM00696G

  • Page 1 GRM00696G Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE where you purchased the product. 1-866-988-3300 Please call our Toll-Free Customer Service Hotline at:...
  • Page 2 GRM00696G Outdoor Furniture 1-Year Limited Warranty Program For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
  • Page 3 Assembly Instructions GRM00696G Aluminum and Steel Gazebo with Netting Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. -5 p.m., PST Monday - Friday Retain this manual for future use.
  • Page 4: Parts And Tools

    GRM00696G Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Post leg M6*15 mm screw 28+2 Inclined tube 1 M6*20 mm screw Inclined tube 2 M6*30 mm screw Inclined tube 3 24+2 M6*45 mm screw Inclined tube 4...
  • Page 5 GRM00696G Connector kit Decorative kit Midlle kit U-shape kit Connector part Small canopy Large canopy Q-shape split ring WARNING: To avoid damage of this production, please use either the carton or another soft Leg base cover surface such as carpet as a working surface to prevent product damage during assembly.
  • Page 6 GRM00696G Gazebo Assembly Step 1:  Attach the U-shape kit (L) to post leg (A) using M6*15mm screw (V).  Insert post leg (A) into the leg base cover (Q) as shown.  Attach the leg base (R) to the post leg (A) using M6*15mm screw (V).
  • Page 7 GRM00696G  Attach the left long beam (D2) to the connector part (M) using M6*15mm screw on the bottom side. Step 3:  Connect right short beam (D3) and left short beam (D4) according to step 2. Step 4:...
  • Page 8 GRM00696G  Attach the beams (D1&D2) to the post leg (A) using M6*15mm screw (V) and M6*45mm screw (V3) as shown. Step 5:  Attach the beams (D3&D4) to post leg (A) using M6*15mm screw (V) and M6*45mm screw (V3) as shown.
  • Page 9 GRM00696G Step 6:  Connect the frame as shown and tighten the screws. Step 7:  Insert inclined tube 1 (B), inclined tube 3 (C1), and inclined tube 4 (C2) into top kit (G) in the order of (B), (C1), (B), (C2), (B), (C1), (B), (C2).
  • Page 10 GRM00696G Step 8:  Attach the inclined tube 2 (B1) to the U- shape kit using M6*30mm screw (V2) and nut (V4).  Attach the inclined tube 3 (C1) and inclined tube 4 (C2) to the middle kit using M6*30mm screw (V2) and nut (V4).
  • Page 11 GRM00696G Step 10:  Put the large canopy (O) on the frame as shown. Step 11:  Put the small canopy (N) on top and...
  • Page 12 GRM00696G tighten as shown.  Attach the decorative kit on top by screwing clockwise. Step 12:  Tighten the large canopy (O) as shown. Step 13:...
  • Page 13 GRM00696G  Attach the long rail beam (E1) and short rail beam (E2) to the post leg (A) using M6*45mm screw (V3) and rail beam washer(S).  Attach the long rail beam (E1) and short rail beam (E2) to the decorative plate using M6*45mm screw (V3) and rail beam washer(S).
