C-Trak Apollo
2.4-9 Select Probe Screen
The Select Probe Screen [Figure 14], can be reached from the
SYSTEM TEST Screen or the SETUP Screen. Select Probe allows
users with multiple probes to select which C-Trak
to use. Users can create new probe entries by selecting NEW or
choose a different probe with SELECT. All probe information
can be edited using the EDIT option.
To edit an existing probe profile, select the probe to be edited
and press "Edit". Both creating a new probe entry and editing
an existing one will bring up the Edit/Create Probe Screen,
shown in Figure 15 below. When finished, touch the "select"
button in the lower left corner of the screen. This will navigate
back to the System Test or Setup Screens.
Adding a New Probe or Editing Existing Probe Information
To create a new entry, select the Probe Type from the drop down
menu. Then select "Name" or "Serial #" to generate an on screen
keyboard and type in the new information. Press OK to save the
probe data. Multiple probe entries may be saved/retrieved on
the Apollo system along with the calibration data for each.
Pressing the OK button saves the changes and
returns to the Select Probe Screen above.
If a probe is no longer used with the system, Users can
remove this from the list by using the DELETE button.
www.carewise.com
|
14
gamma probe
®

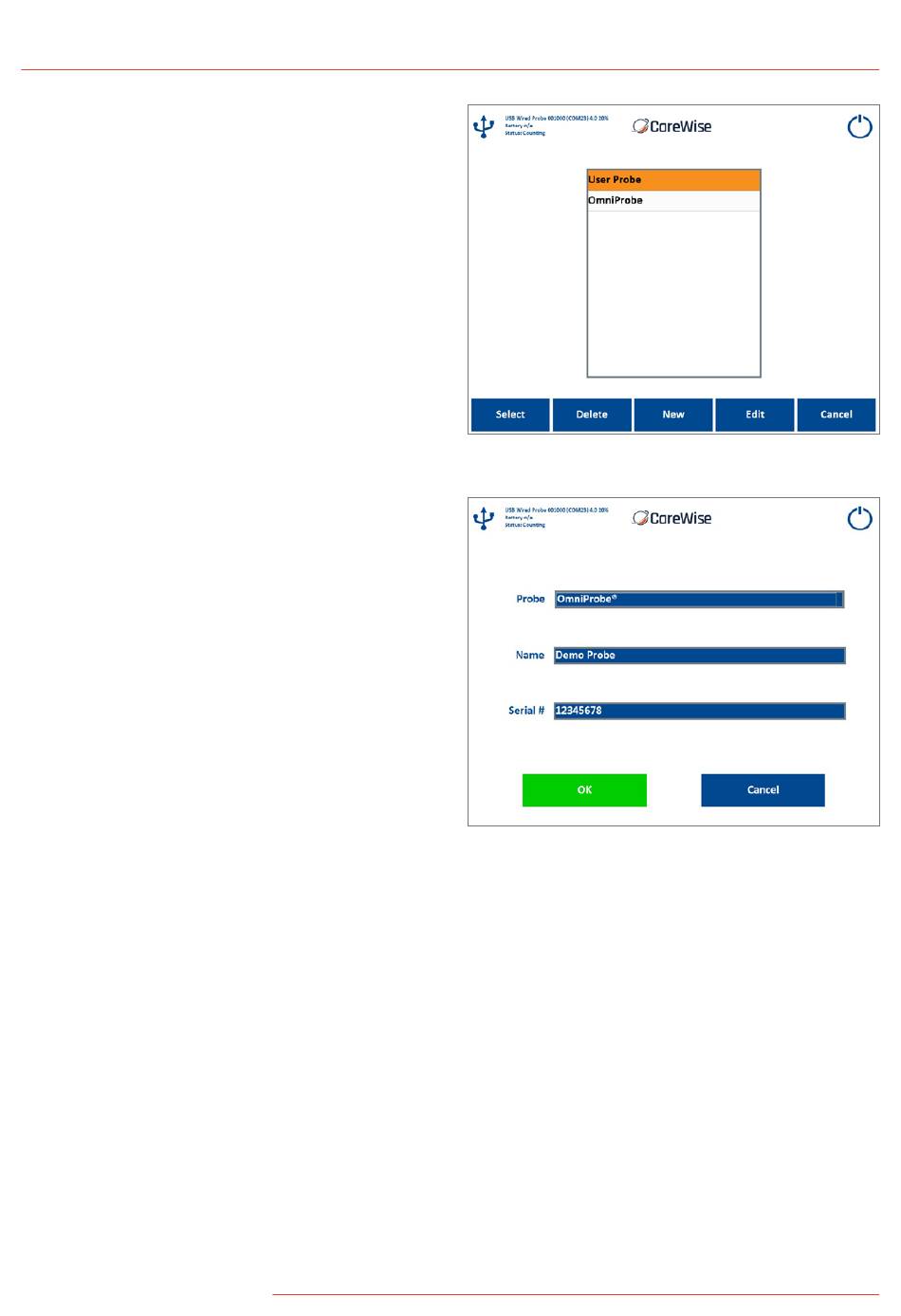

Figure 14 – Select Probe Screen
Figure 15 – Edit/Create Probe Screen
