CareWise C-Trak Apollo User Manual page 11

2.4-3 View Timed Counts Screen (Continued)
Locking Timed Count Fields:
The user can lock the changeable fields by pressing the lock icon
in the upper, right-hand side. When the image of the padlock is
"open" [as in Figure 8], the fields can be rearranged. When the
image of the padlock is "closed", the fields are locked in place.
Editing Timed Count Fields:
There are three user-editable fields in the View Timed Counts
Screen: ID, Location and Type. The user can edit the ID field by
pressing within the white area and, using the popup keyboard,
enter any defining ID to correspond with this data set. To set
Location and Type, select an entry to display a pop-up menu.
Select the appropriate option from the menu. For Location, the
options include: In Vivo – Left and Right, Ex Vivo – Left and
Right and Background Left and Right. For Type, the options
include: Sentinel, Primary, Tumor, and Other.

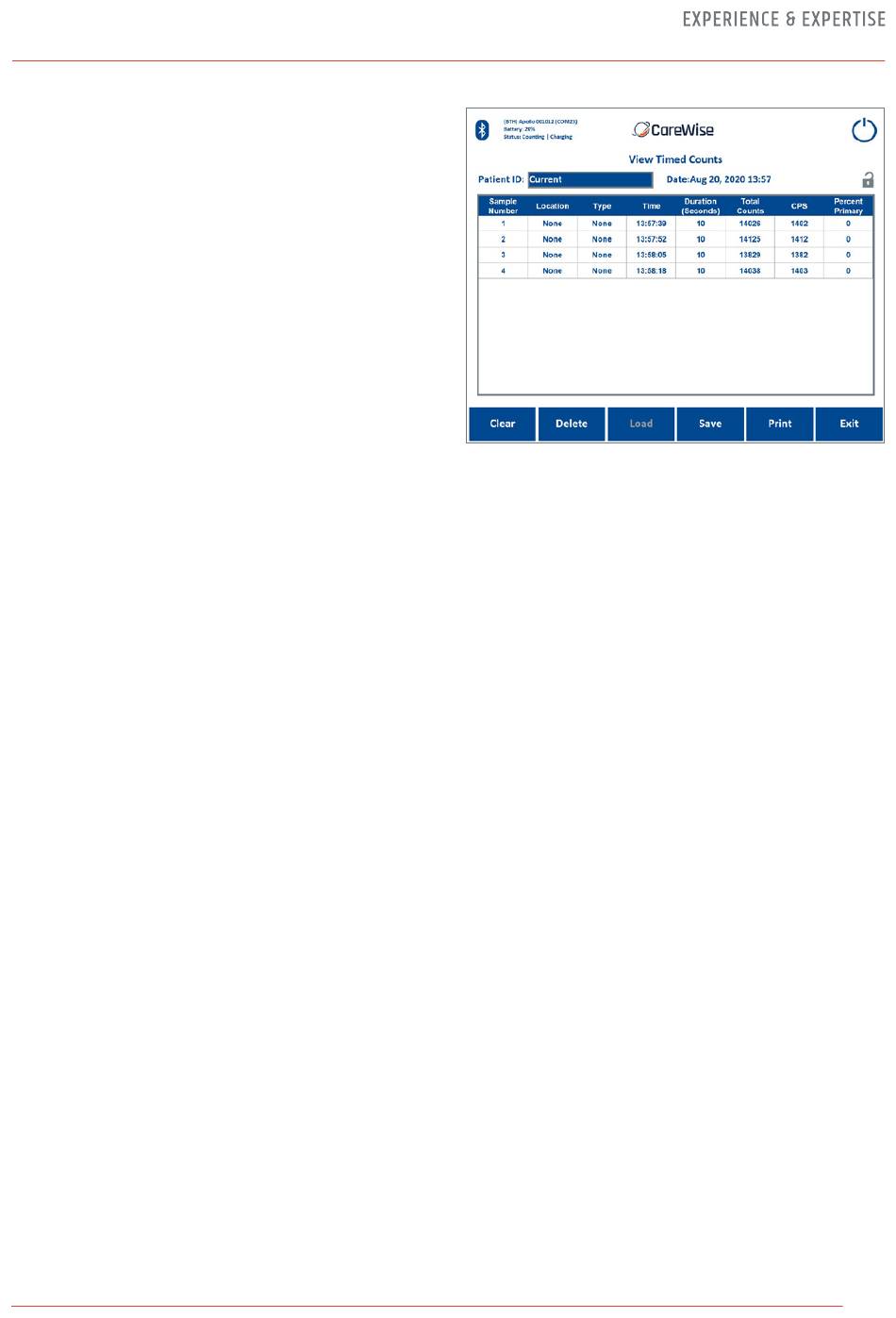

Figure 8 – View Timed Counts Screen
The 'Primary' option in the Type field should be selected for the
sentinel node with the highest amount of radioactivity in a given
set of timed count data. The C-Trak Apollo system will
®
automatically calculate the percentage of the Primary's activity
for all other timed counts, and display these percentages in the
"Percent Primary" field. Note that only one timed count can be
set as "Primary"; if another timed count is set to "Primary", the
count previously labeled "Primary" will be relabeled "Other".
Saving Timed Count Data:
On the C-Trak Apollo system, the user can manually save a
®
Timed Count data set by pressing the "Save" button and entering
an appropriate and unique name for the data set. The user can
restore a previously saved set of timed count data by pressing the
"Load" button and selecting the appropriate file name.
NOTE: If the system is shut down without saving the Timed
Count data, all current data will be lost. If the system suffers an
unexpected shut down (e.g. due to power failure), the option to
restore the Timed Count data will be presented the next time the
system is powered on. Pressing 'Yes' will restore the Timed Count
data to the summary table, accessible via the 'View Timed Counts'
button. Pressing 'No' will remove the Timed Count data from the
system memory.
Printing Timed Count Data:
To print from the C-Trak Apollo system, ensure that the printer
®
cable is plugged into the USB port and the printer is turned on,
then press print on the screen.
Please note only printers purchased from Care Wise
will work with the system.
11
