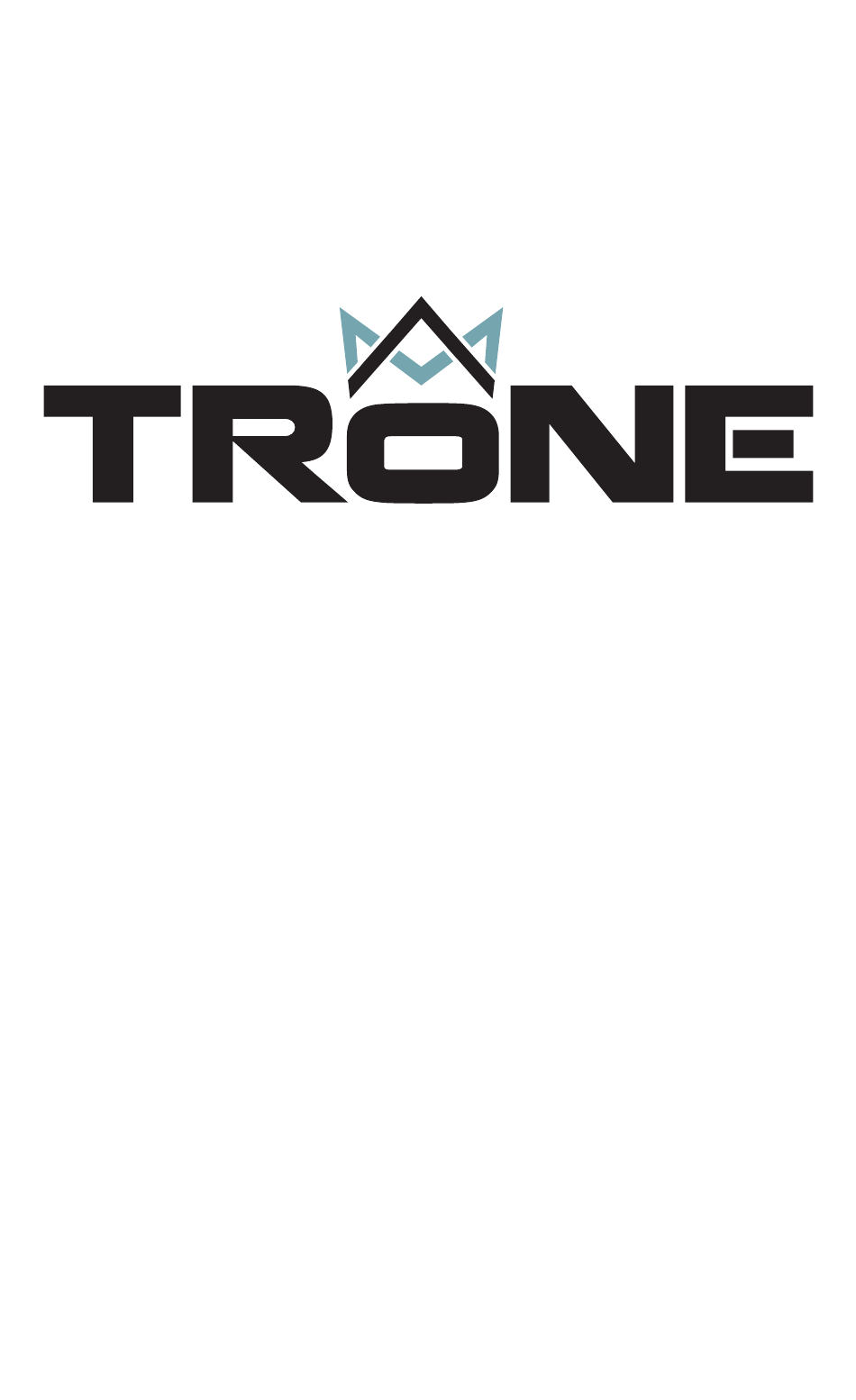

  • Page 1 bidets reimagined Tahum Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety precautions ................2 2. Signs and meanings ................2 3. Warnings ................... 3-6 4. Line drawings 4.1.Remote Control ................7 4.2.Bidet Toilet..................8 5. Automatic Functions ................9 6. Getting to know your remote ............10 7.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Basic safety precautions must be followed when handling or using electrical products, especially those within the reach of children. Please make yourself aware of the following guidelines: This product should only be used by children who are 8 years and older or by persons with disabilities who have received supervision and instructions on the safe use and the hazards involved when using this product.

  • Page 4: Warnings

    WARNINGS Please do not touch the electrical outlet with wet hands. Or it may cause electric shock Please do not pour liquids such as water or detergent on top of the electronic outlet and the toilet. Or it may cause fire, electric shock, heat or short circuit Or it may cause injury and indoor water seepage because of the damaged part...
  • Page 5 Continuous use of the toilet despite of the damages and above-mentioned conditions may result to fire, electric shock, heat, short circuit, injury, and indoor water seepage. Please don't use seawater and other water except for tap water or potable well water (underground water) Or it may cause skin irritation or inflammation During thunderstorms, do not touch the electrical plug Or it may cause electric shock...
  • Page 6 Pay attention to the low temperature scalding Improper use of warm seat may cause low temperature scalding If you sit for a long time, please turn the temperature setting to "off level. Please turn the seat temperature setting to "off level, warm air-dry temperature to "low" level under the following situations Children and elders or those who cannot adjust the temperature to the proper level...
  • Page 7 Please do not throw lighted cigarettes and other flaming material into the toilet. Or it may cause fire Do not install this product in a room where it may be frosted. The room temperature can’t be less than 39.2 degree Fahrenheit. Don’t block the air outlet Do not use excessive force when closing the cover and the seat.

  • Page 8: Line Drawings

    LINE DRAWINGS Remote Control Level Indicator Light eFoam Stop Rear Wash User 1 Settings User 2 Night Light Temperature Level Adjustment Adjustment Front Wash Wand Adjustment Seat Flush Water Replacement Note: The eFoam feature is currently available on the Ganza II (G2ETBCERN-12.WH) model only.

  • Page 9: Bidet Toilet

    Electronic Bidet Toilet Cover/Lid Safety Instructions Back Cover Water Outlet Side Knob Water Supply Pipe Seat Sensor Dryer Filter Washer Angle Valve of Heating Seat Water Supply Toe Touch Sensor Toilet Bowl Manual Flush Button Front Rear Wash Wash Flush...

  • Page 10: Automatic Functions

    AUTOMATIC FUNCTIONS Self-Cleaning Wand The spray wand cleans itself before and after every use by rinsing itself as it enters and exits. Deodorizer The deodorizer starts anytime the seat sensor has been activated. You can stop the deodorizer by pressing the stop button in idle mode. The deodorizer will stop automatically after a user leaves the seat for around 60 seconds.

  • Page 11: Getting To Know Your Remote

    GETTING TO KNOW YOUR REMOTE Level Indicator Light • The Level Indicator Light [ ] will display the current level. • The water pressure adjustment, spray wand position adjustment, and the temperature adjustments have four gear positions: Close, Low, Mid, and High. When you successfully change from one level to the other the light indicator changes position and you hear one beep.

  • Page 12: Opening And Closing The Seat

    • Method 3: When the lid is closed, gently tap the location of the foot sensor. Note: You cannot close the lid using the foot sensor. • Method 4: The lid will automatically open when you are close to it if the automatic lid function is active. The lid will automatically close on its own after no motion is detected for approximately 30 seconds.

  • Page 13: Adjustable Seat Temperature

    Adjustable Seat Temperature • Press the Temperature Adjustment button [ until the seat ] until the seat temperature icon [ is selected. There are four levels of ] is selected. There are four levels of temperature adjustment which can be seen on the Level Indicator Light.

  • Page 14: Getting To Know Your Bidet

    • The sensing distance has five levels. When you successfully change from one level to the next you will hear one beep. If you hear two beeps, the sensor has reached its maximum or minimum setting. GETTING TO KNOW YOUR BIDET Stop •...

  • Page 15: Adjustable Spray Wand Position

    Adjustable Spray Wand Position • While washing, press the Wand Adjustment button [ ]. There are four levels of adjustment which can be seen on the level indicator light. • Use the Level Adjustment button [ < > ] to increase or decrease the wand position.

  • Page 16: Adjustable Drying Temperature

    Adjustable Drying Temperature • While you are drying, press the Temperature Adjustment button ] until the air temperature light [ ] is selected. There are four levels of temperature adjustment which can be seen on the level indicator display. • Use the Level Adjustment button [ <...

  • Page 17: Cool And Warm Massage

    Cool & Warm Massage • While the user is washing, press and hold the Font Wash button ] to turn on/off the Cool & Warm Massage. The water temperature will begin continuously switching between low and high temperature. Note: Cool & Warm massage can be used in rear wash and front wash.

  • Page 18: Setting The Automatic Drying Function

    Setting The Automatic Drying Function Factory Settings: On • Press and hold the Settings button [ ] and then press the Dry button [ ] to turn on/off the automatic drying function. • When the function is deactivated, you will hear a short beep. •...

  • Page 19: Automatic Flush

    Automatic Flush • Press and hold the Setting button [ ], and then press the Flush button [ ] to turn this function on/off. When the function is turned on, you will hear short beep. When you turn it off, you will hear a long beep. Note: When automatic flush is off, the toilet will not flush when you a) leave the seat after sitting down b) leave the seat after standing as detected by the sensor...

  • Page 20: Pairing The Remote

    PAIRING THE REMOTE 1) Unplug the bidet (tripping the GFCI on the plug will also work). 2) Press and hold the SPA button until the 4 lights on the front of the remote start flashing. Then release the SPA button. 3) Hold the remote close to the electronic bidet combo and at the same time proceed to step 4.
  • Page 21 Toilet Fault Failure Analysis Solutions Clean the filter according to Angle valve filter blocked the manual Unclean flush Measure if the water Too low water volume is 10L per 30s or when the water pressure not (buy a booster pump) pressure is low Ensure that the water Bended water inlet...
  • Page 22 Power Switch Fault Failure Analysis Solutions Check whether the socket has power or not and if Check circuit the plug is loose. Check whether the toilet is Press the power on/off turned on or not (if the button until the side side button is on or not) button’s light is on Product Not...
  • Page 23 General Problems Fault Solutions Failure Analysis Wait for water supply Check if there’s no water supply to be back to normal Check if the angle valve is Open the angle valve No water coming closed or not out from the Check if the inlet water nozzle Clean the water filter...

  • Page 24: Cleaning And Care

    CLEANING AND CARE Note: Turn off the power, close the water supply angle valve, and stop the water supply before doing any maintenance work. DO NOT rinse this product with water during maintenance. Toilet Bowl Cleaning Please ensure that the electrical plug is taken out. Please use soft damp cloth to wipe the toilet shelf and seat.
  • Page 25 Self-Cleaning Nozzle Maintenance Rotate the knob upwards to the back wash setting and hold it in the upwards position for approximately 2-3 seconds. The spray wand will then extend. Wash the cleaning tube and nozzle with a toothbrush coated with toothpaste. Do not use excessive force.
  • Page 26 Cleaning the Steel Mesh Filter Please clean the steel mesh (or replace the filter) according to the local water quality. When the cleaning strength becomes weaker, clean the steel mesh or replace the filter on time. Close the water supply angle valve when disassembling the filter. Tighten the filter during installation to avoid water leakage.

  • Page 27: Product Specifications

    PRODUCT SPECIFICATIONS TETBCERN-12.WH Model Number Rated Voltage 120V-, 60Hz Rated Power 1150W Power Cable 1.5m Applicable Water 40 - 90 PSI Pressure Water 39.2 to 95 °F Temperature Ambient 39.2 to 104 °F Temperature Net Weight 99.2 lbs Waterproof Level IPX4 Cleaning Water 0.13 - 0.19 gpm (0.5 - 0.7L/min)
  • Page 28 support@troneplumbing.com www.troneplumbing.com...
