Version June 2021
(Fixing kit H)

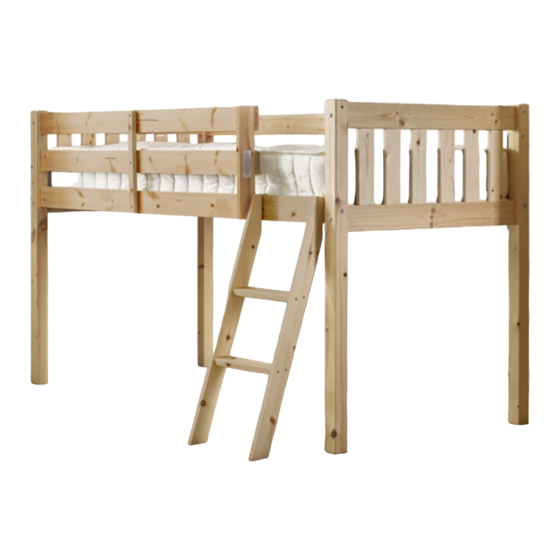

Avalon & Molava
(All Sizes)
Assembly Instructions
IMPORTANT – READ CAREFULLY –
Assembly Instructions
RETAIN FOR FUTURE REFERENCE
Safety First !
The top surface of the mattress must not be above the line ,marked on the frame
(Maximum height: 20cm).
The size of the mattress required is detailed below:
Standard 3ft Single, Standard Length - Mattress size 90cm by 190cm
Small 3ft Single, Standard Length - Mattress size 75cm by 190cm
Standard 2ft 6 Single, Short Length - Mattress size 90cm by 160cm
Small 2ft 6 Single, Short Length - Mattress size 75cm by 160cm
Small 4ft Double, Standard length - Mattress size 120cm by 190cm
Standard 4ft 6 Double, Standard Length - Mattress size 137cm by 190cm
High beds and the upper bed of a bunk bed are not suitable for children under six years due to risk of injury
from falls.
Be aware of the danger of young children (under 6) falling from upper bunk.
Beds should not be used if any structural part is broken or missing.
Bunk beds and high beds can present a serious risk of injury from strangulation if not used correctly. Never
attach or hang items to any part of the bunk bed that are not designed to be used with the bed, for example,
but not limited to ropes, strings, cords, hooks, belts and bags.
Children can become trapped between the bed and the wall, a roof pitch, the ceiling, adjoining pieces of
furniture (eg cupboards) and the like. To avoid risk of serious injury the distance between the top safety
barrier and the adjoining structure shall not exceed 75mm or shall be more than 230mm.
Always ensure that guardrails, ladder and other components are maintained in the proper position and free
from damage, and all the screw fixings tight.
Always use the ladder for entering and leaving the upper bunk.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Use a nightlight as an added safety precaution for persons under the upper bunk.
Use guardrails on both sides of the upper bunk.
Every bedroom must have at least one opening window. Ventilation of the room is necessary in order to keep
the humidity low and to prevent mould in and around the bed.
The bed complies with BS EN 747-1: 2012+A1 :2015 safety standards
IMPORTANT:
DO NOT DISPOSE
of
the packaging until you are satisfied
with your purchase.. Please keep all
cardboard until fully satisfied.
Advertisement
Related Manuals for Strictly Beds & Bunks Avalon
Summary of Contents for Strictly Beds & Bunks Avalon
- Page 1 Version June 2021 (Fixing kit H) Avalon & Molava (All Sizes) Assembly Instructions IMPORTANT – READ CAREFULLY – Assembly Instructions RETAIN FOR FUTURE REFERENCE Safety First ! The top surface of the mattress must not be above the line ,marked on the frame (Maximum height: 20cm).
-
Page 2: Customer Care
CUSTOMER CARE We have checked all parts to ensure they are free of damage. However timber is a natural, living product. Occasionally timber can still be adjusting to humidity, for this reason a crack or stretch mark may appear after the product has been packaged. - Page 3 TOP TIPS - TOP TIPS Read before you start assembly Locating the Dowel Rods To keep the bed from rattling all the dowel holes have been slightly mis-drilled by a couple of mm. When you push parts together the dowels will straighten and pull together to ensure a tight fit.
-
Page 4: Parts Identifier
Parts Identifier Molava - Straight Ladder Model Avalon - Slanted Ladder Model Part 3 - Bottom Long Back Guard Rail Part 10 - Short Shaker Inserts Part 1 - Long Side rail Part 9 - Single 4G Headboard Facia Part 2 - Top Long Back Guard Rail... - Page 5 How to identify your parts and fixings All our products have four attachment methods. These are colour coded, at the end of each part you will find a marker pen marking either RED, WHITE BLUE and BLACK RED MARKING/FIXINGS The part will have a red marker pen marking on the end. Top back and front guard rails, top headboard facias.
- Page 6 First Build the two Head Board Inserts Lay two headboard facias marked Black PART 9 ( 4G) position these as shown in PIC 1. Lay the long inserts (PART 12) in between these ready to join. Place dowel rods in all the headboard inserts as Pic 1 described, DO NOT PUSH ALL THE WAY IN.
- Page 7 We now need to attach the rear side rail With the help of a second person stand both the headboards up. white CHALK MARKINGS must be facing inwards ready to attach the side rail. You need to attach the side rail only first, this helps the frame stand still before fitting the guard rails and bottom brace part 17.
- Page 8 From the INSIDE of the left corner post measure 40cm in and mark on the side rail. measure 40cm in and mark on the side rail. See PIC1 See PIC1 Slanted Ladder Model (Avalon) PIC1 Ladder to The Right Ladder to The Left Hand Hand Side...
- Page 9 Instructions for straight ladder model First we need to attach the ladder hooks RIGHT PIC2 LEFT PIC1 PIC3 Now we have assembled the ladder we need to attach the hooks. If the ladder is going on the right side lay the ladder on the carpet as shown in PIC2, if left lay as shown in PIC1. (Note the position of the long strut).
- Page 10 Instructions for slanted ladder model PIC3 PIC2 WRONG RIGHT Now find part 11A, this will have a label and NO pilot holes. With a second person ensure part is flush with the bottom of the side rail. Place part 11A to the inside of the pencil mark, ie insure 40cm is clear between the corner post and part 11A.
- Page 11 We Now need to attach the base slats. You will have twelve extra wide base slats. Push the first slat tight with the footboard corner posts, then using the base slat spacer block evenly space out the remaining base slats. DO NOT SCREW IN PLACE YET. Now push the slats flush to the left hand side rail and screw in (do not screw the right hand side yet).
