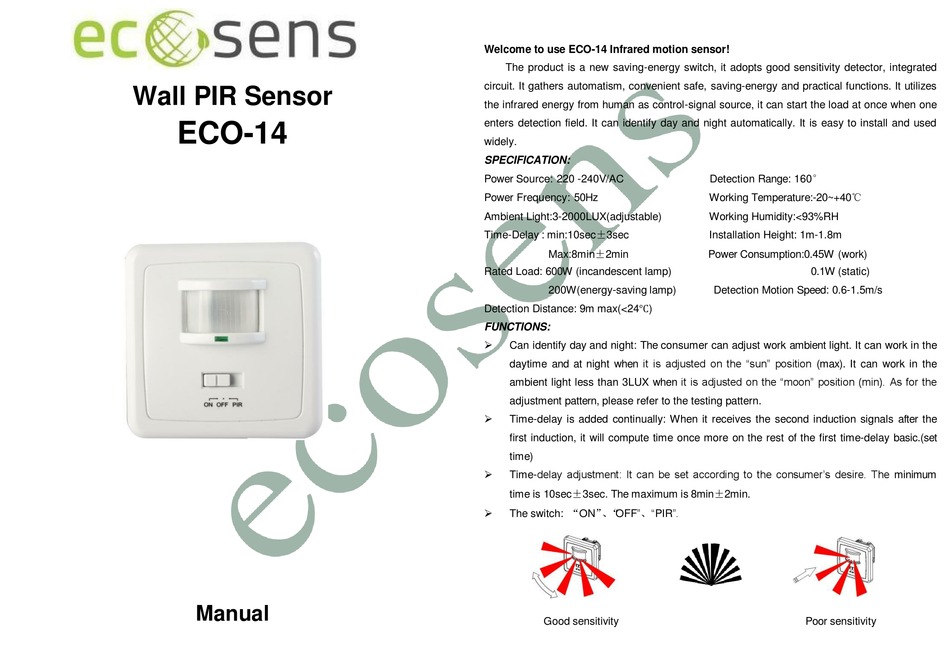

ecosens ECO-14 Manual

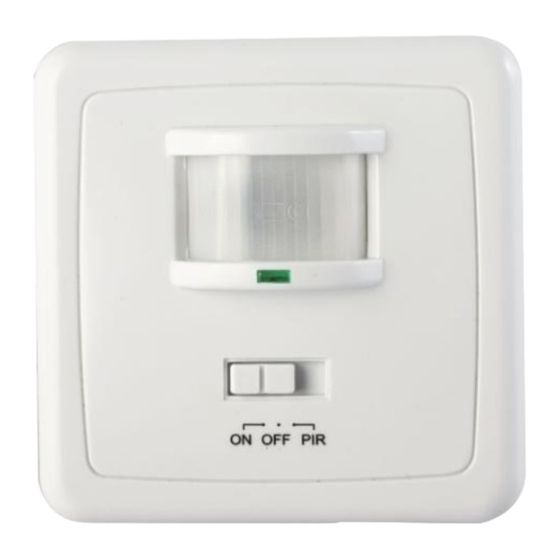

Wall PIR Sensor
ECO-14
Manual
Welcome to use ECO-14 Infrared motion sensor!
The product is a new saving-energy switch, it adopts good sensitivity detector, integrated
circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes
the infrared energy from human as control-signal source, it can start the load at once when one
enters detection field. It can identify day and night automatically. It is easy to install and used
widely.
SPECIFICATION:
Power Source: 220 -240V/AC
Power Frequency: 50Hz
Ambient Light:3-2000LUX(adjustable)
Time-Delay : min:10sec±3sec
Max:8min±2min
Rated Load: 600W (incandescent lamp)
200W(energy-saving lamp)
Detection Distance: 9m max(<24℃)
FUNCTIONS:

Can identify day and night: The consumer can adjust work ambient light. It can work in the
daytime and at night when it is adjusted on the "sun" position (max). It can work in the
ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the
adjustment pattern, please refer to the testing pattern.

Time-delay is added continually: When it receives the second induction signals after the
first induction, it will compute time once more on the rest of the first time-delay basic.(set
time)
 Time-delay adjustment: It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 8min±2min.

The switch: "ON" 、 " OFF"、"PIR".
Good sensitivity
Detection Range: 160°
Working Temperature:-20~+40℃
Working Humidity:<93%RH
Installation Height: 1m-1.8m
Power Consumption:0.45W (work)
0.1W (static)
Detection Motion Speed: 0.6-1.5m/s
Poor sensitivity
