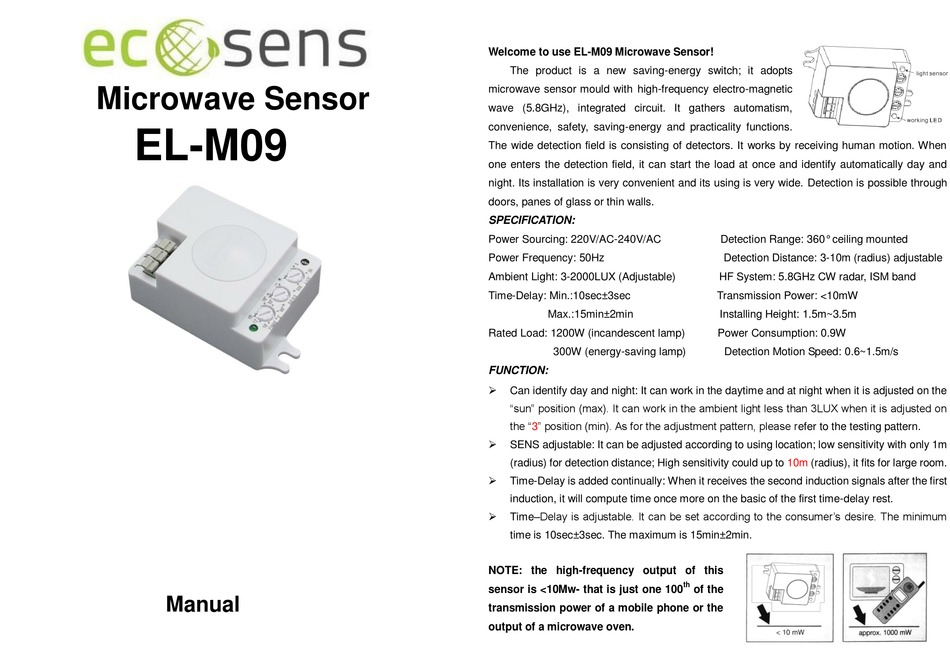

Microwave Sensor
EL-M09
Manual

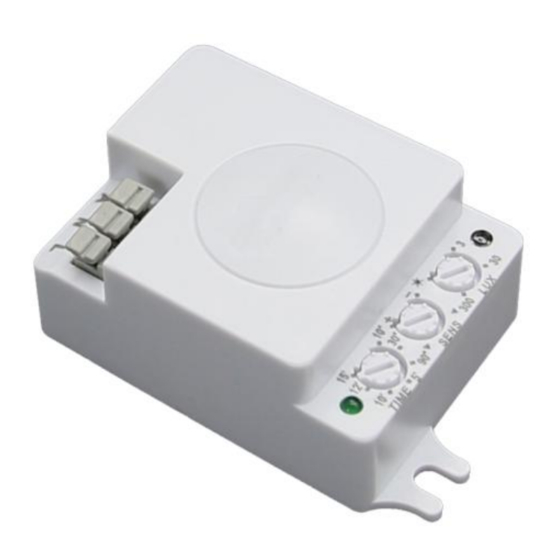

Welcome to use EL-M09 Microwave Sensor!
The product is a new saving-energy switch; it adopts
microwave sensor mould with high-frequency electro-magnetic
wave (5.8GHz), integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practicality functions.
The wide detection field is consisting of detectors. It works by receiving human motion. When
one enters the detection field, it can start the load at once and identify automatically day and
night. Its installation is very convenient and its using is very wide. Detection is possible through
doors, panes of glass or thin walls.
SPECIFICATION:
Power Sourcing: 220V/AC-240V/AC
Power Frequency: 50Hz
Ambient Light: 3-2000LUX (Adjustable)
Time-Delay: Min.:10sec±3sec
Max.:15min±2min
Rated Load: 1200W (incandescent lamp)
300W (energy-saving lamp)
FUNCTION:
Can identify day and night: It can work in the daytime and at night when it is adjusted on the
"sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on
the "3" position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location; low sensitivity with only 1m
(radius) for detection distance; High sensitivity could up to
Time-Delay is added continually: When it receives the second induction signals after the first
induction, it will compute time once more on the basic of the first time-delay rest.
Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 15min±2min.
NOTE: the high-frequency output of this
sensor is <10Mw- that is just one 100
transmission power of a mobile phone or the
output of a microwave oven.
Detection Range: 360° ceiling mounted
Detection Distance: 3-10m (radius) adjustable
HF System: 5.8GHz CW radar, ISM band
Transmission Power: <10mW
Installing Height: 1.5m~3.5m
Power Consumption: 0.9W
Detection Motion Speed: 0.6~1.5m/s
10m
(radius), it fits for large room.
th
of the
