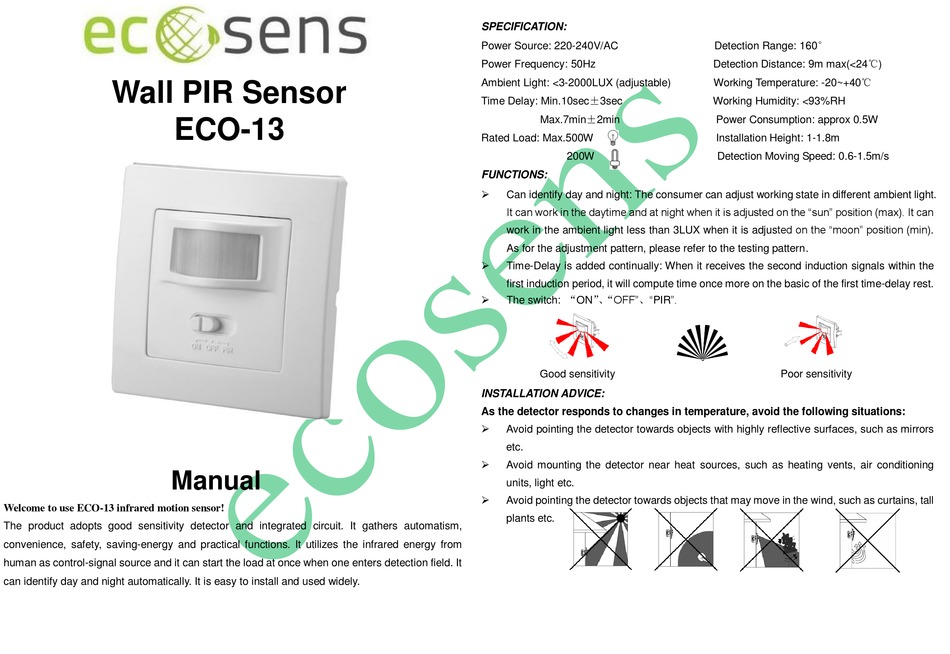

ecosens ECO-13 Manual

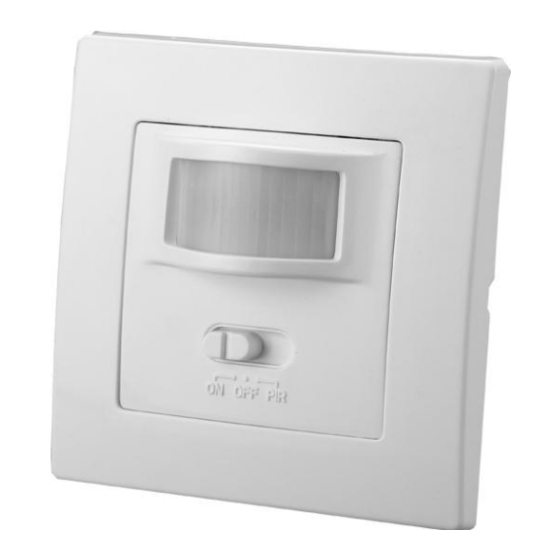

Wall PIR Sensor
ECO-13
Manual
Welcome to use ECO-13 infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from
human as control-signal source and it can start the load at once when one enters detection field. It
can identify day and night automatically. It is easy to install and used widely.

SPECIFICATION:

Power Source: 220-240V/AC
Power Frequency: 50Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec
Max.7min±2min
Rated Load: Max.500W
200W

FUNCTIONS:


Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min).
As for the adjustment pattern, please refer to the testing pattern.

Time-Delay is added continually: When it receives the second induction signals within the
first induction period, it will compute time once more on the basic of the first time-delay rest.
 The switch: "ON" 、 "OFF"、"PIR".
Good sensitivity

INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.

Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.

Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
Detection Range: 160°
Detection Distance: 9m max(<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 1-1.8m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
