ecosens EL-M0751 Manual

Microwave Sensor
EL-M0751
Manual

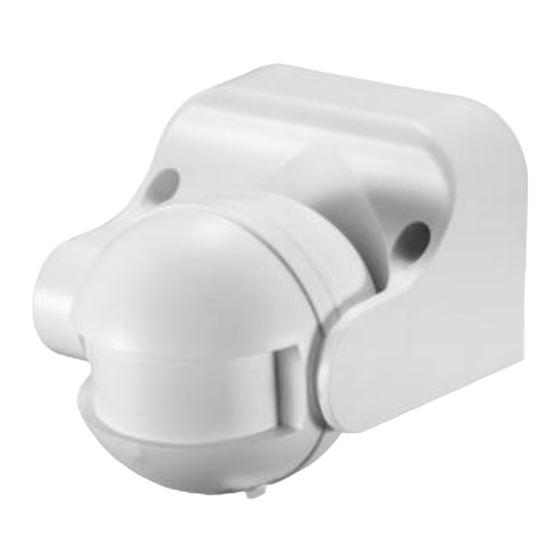

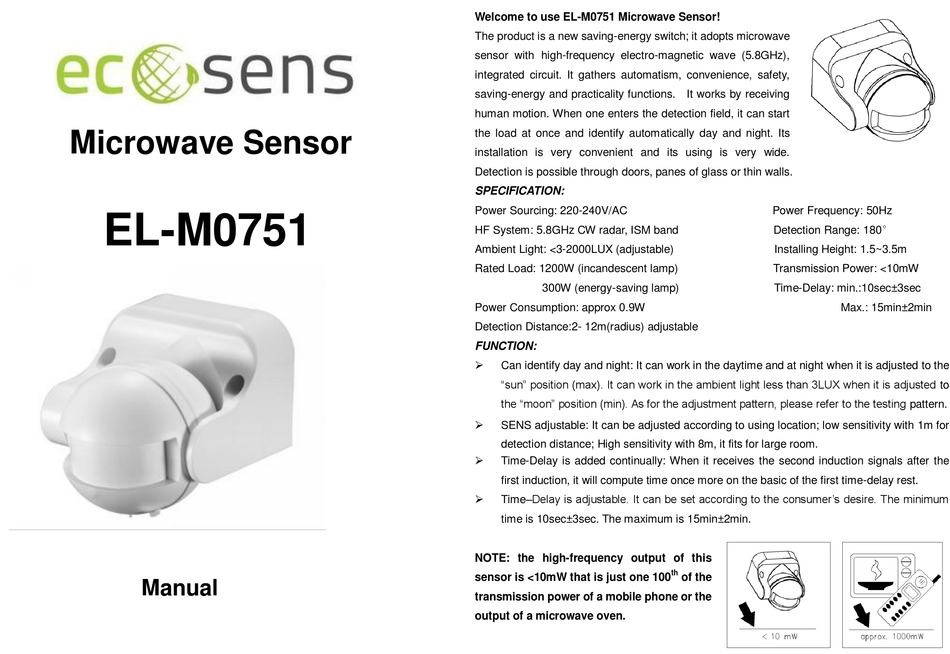

Welcome to use EL-M0751 Microwave Sensor!
The product is a new saving-energy switch; it adopts microwave
sensor with high-frequency electro-magnetic wave (5.8GHz),
integrated circuit. It gathers automatism, convenience, safety,
saving-energy and practicality functions. It works by receiving
human motion. When one enters the detection field, it can start
the load at once and identify automatically day and night. Its
installation is very convenient and its using is very wide.
Detection is possible through doors, panes of glass or thin walls.
SPECIFICATION:
Power Sourcing: 220-240V/AC
HF System: 5.8GHz CW radar, ISM band
Ambient Light: <3-2000LUX (adjustable)
Rated Load: 1200W (incandescent lamp)
300W (energy-saving lamp)
Power Consumption: approx 0.9W
Detection Distance:2- 12m(radius) adjustable
FUNCTION:

Can identify day and night: It can work in the daytime and at night when it is adjusted to the
"sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted to
the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.

SENS adjustable: It can be adjusted according to using location; low sensitivity with 1m for
detection distance; High sensitivity with 8m, it fits for large room.

Time-Delay is added continually: When it receives the second induction signals after the
first induction, it will compute time once more on the basic of the first time-delay rest.
Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum

time is 10sec±3sec. The maximum is 15min±2min.
NOTE: the high-frequency output of this
sensor is <10mW that is just one 100
transmission power of a mobile phone or the
output of a microwave oven.
Power Frequency: 50Hz
Detection Range: 180°
Installing Height: 1.5~3.5m
Transmission Power: <10mW
Time-Delay: min.:10sec±3sec
Max.: 15min±2min
