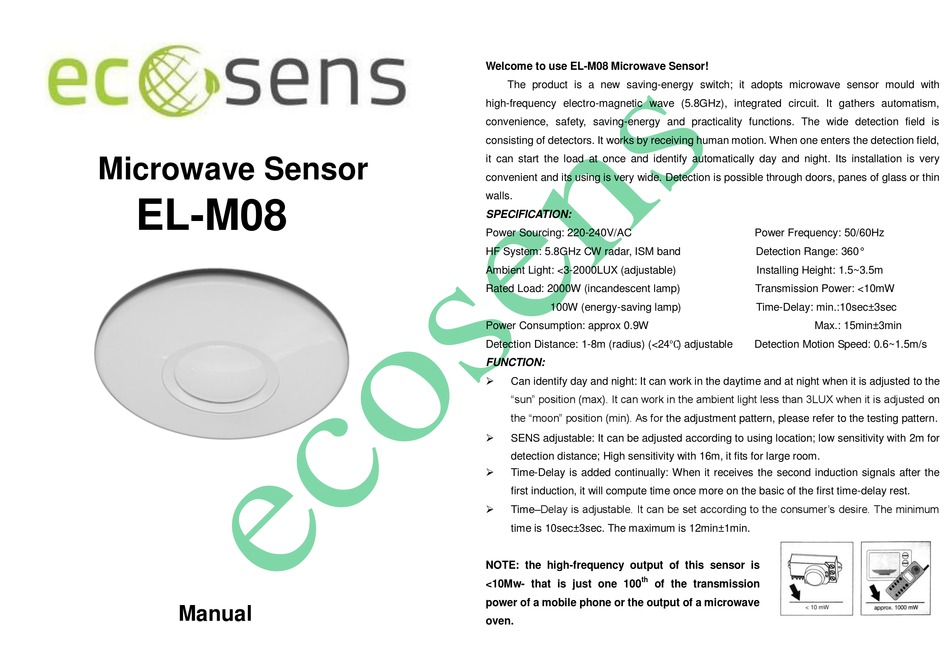

ecosens EL-M08 Manual

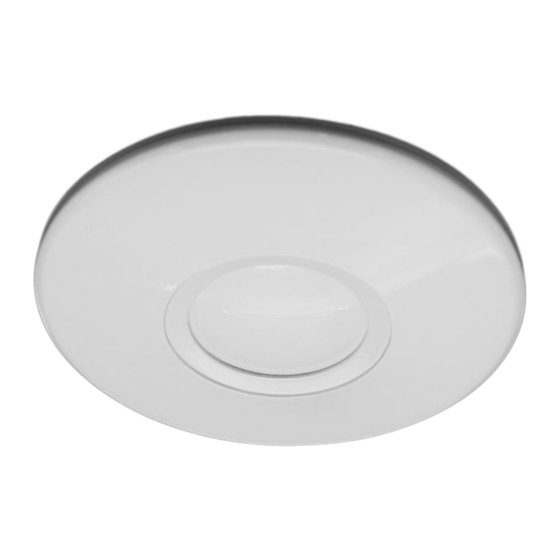

Microwave Sensor
EL-M08
Manual
Welcome to use EL-M08 Microwave Sensor!
The product is a new saving-energy switch; it adopts microwave sensor mould with
high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practicality functions. The wide detection field is
consisting of detectors. It works by receiving human motion. When one enters the detection field,
it can start the load at once and identify automatically day and night. Its installation is very
convenient and its using is very wide. Detection is possible through doors, panes of glass or thin
walls.
SPECIFICATION:
Power Sourcing: 220-240V/AC
HF System: 5.8GHz CW radar, ISM band
Ambient Light: <3-2000LUX (adjustable)
Rated Load: 2000W (incandescent lamp)
100W (energy-saving lamp)
Power Consumption: approx 0.9W
Detection Distance: 1-8m (radius) (<24℃) adjustable
FUNCTION:

Can identify day and night: It can work in the daytime and at night when it is adjusted to the
"sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on
the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.

SENS adjustable: It can be adjusted according to using location; low sensitivity with 2m for
detection distance; High sensitivity with 16m, it fits for large room.

Time-Delay is added continually: When it receives the second induction signals after the
first induction, it will compute time once more on the basic of the first time-delay rest.
 Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 12min±1min.
NOTE: the high-frequency output of this sensor is
th
<10Mw- that is just one 100 of the transmission
power of a mobile phone or the output of a microwave
oven.
Power Frequency: 50/60Hz
Detection Range: 360°
Installing Height: 1.5~3.5m
Transmission Power: <10mW
Time-Delay: min.:10sec±3sec
Max.: 15min±3min
Detection Motion Speed: 0.6~1.5m/s
