⁄ ANTENNA CONNECTOR
Connects to an antenna. Ask your dealer about antenna
selection and best installation location.
¤ MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle's
ground for hanger function when hanging or releasing the
microphone.
‹ DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER
connect to a 24 V battery. This could damage the
transceiver.
› EXTERNAL SPEAKER JACK
Connect a 4–8 external speaker, if desired.
fi OPTIONAL CABLE (OPC-617)
Connect an external modem unit, LCD backlight control,
audio amplifier for 'public address' function, etc.
OPTIONAL CABLE PIN ASSIGNEMENT
54321
1 LCD backlit cont. IN
2 P-Adress AF OUT
3 Det. AF OUT
4 Mod. IN
5 PTT conrol IN
9 8 7 6
q Microphone (EM-99) ......... 1
w Microphone hanger and
e Microphone cable .............. 1
r DC power cable
t Mounting bracket .............. 1
y Bracket bolt ....................... 4
6 Horn drive cont. OUT
D Function name sticker
7 P-Adress AF GND
There are no names on the programmable function keys
8 Det. AF GND
9 Mod. GND
since the needed functions can be assigned to these keys.
Therefore, attach the supplied function name sticker on the
"
CONNECTION AND INSTALLATION

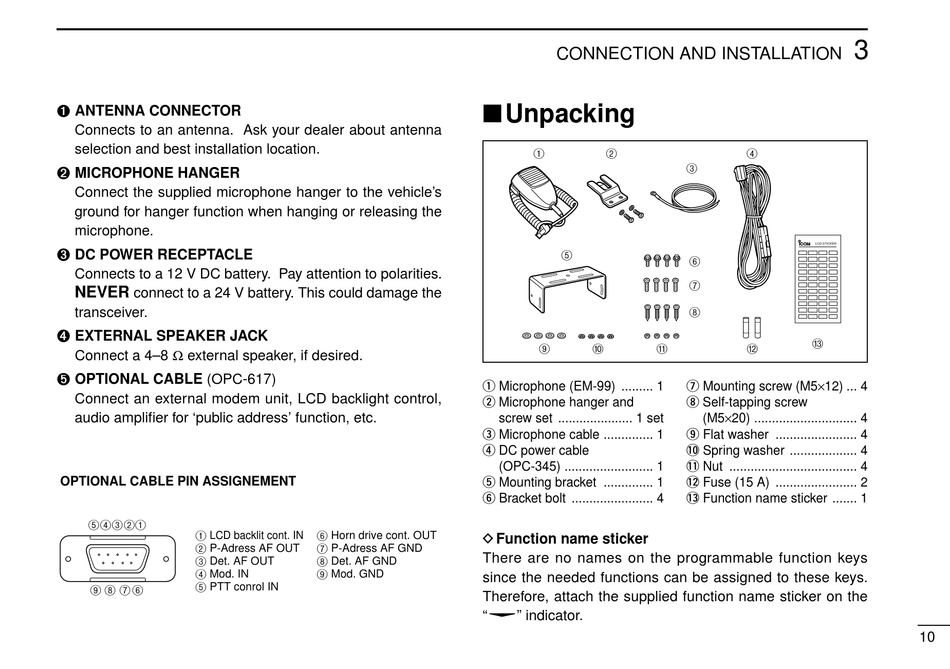

Unpacking

1 2
5
9 0 A
screw set ..................... 1 set
(OPC-345) ......................... 1
" indicator.
3
4
3
LCD-STICKER
6
7
8
C
B
u Mounting screw (M5 12) ... 4
i Self-tapping screw
(M5 20) ............................. 4
o Flat washer ....................... 4
!0 Spring washer ................... 4
!1 Nut .................................... 4
!2 Fuse (15 A) ....................... 2
!3 Function name sticker ....... 1
10
