Appendix - Swine Robotics Boar Bot Owner's Manual

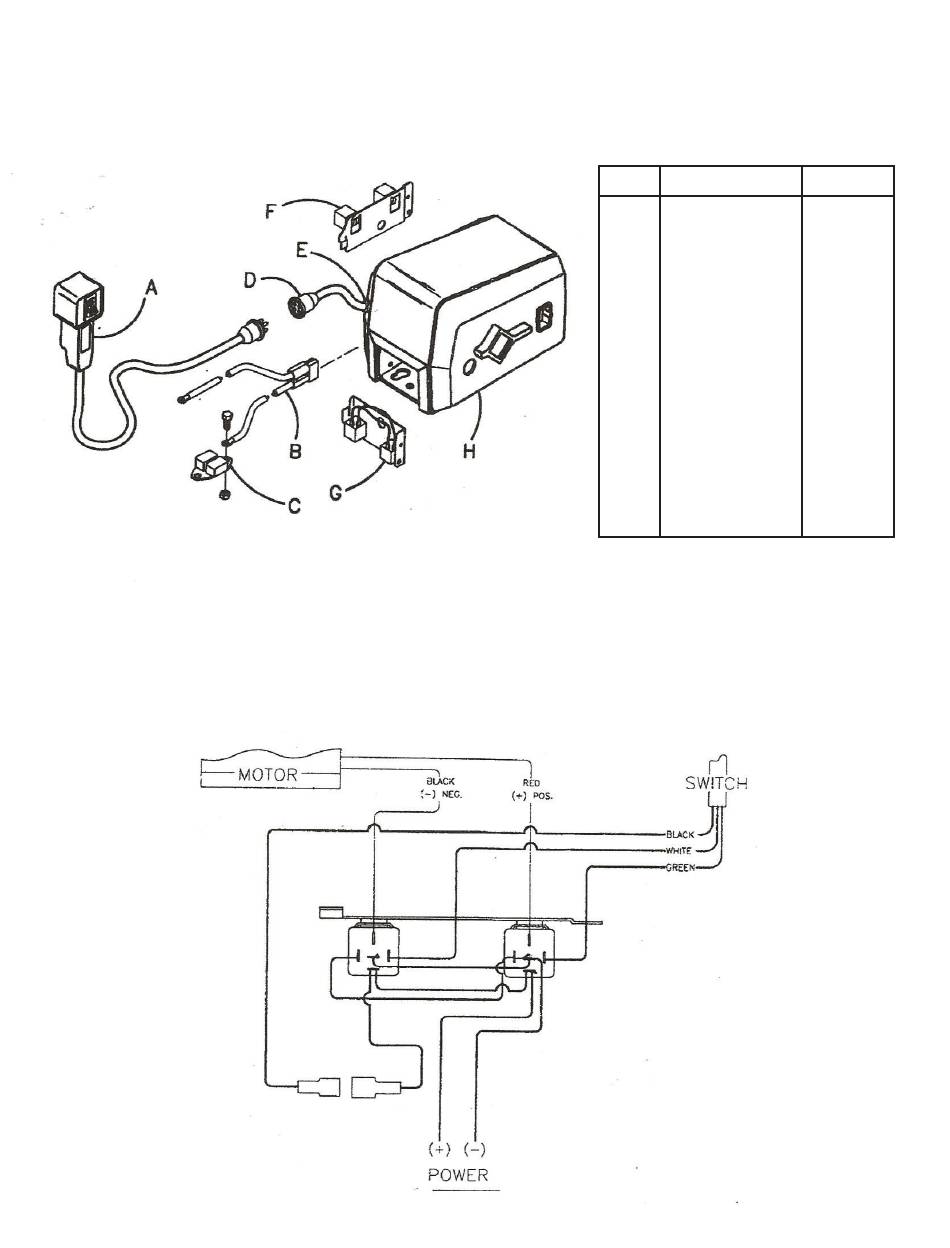

BUZZARD/HEARSE WINCH PARTS DIAGRAM

APPENDIX

WIRING DIAGRAM
36
Ref. Part
A Switch Assy
B Wiring Harness
(complete)
C Circuit Breaker
Assy
D Pigtail, 9"
E Strain Relief
Bushing
F Relay Assy
(SA5015/SA7015)
G Relay Assy
(SA9015/SA12015)
H Cover
(SA5015/SA7015)
H Cover
(SA9015/SA12015)
J Motor Assy
Number
304325
304744
304025
304917
205037
304908
304909
404983
404981
304914
