Summary of Contents for I-Tech RKP2415

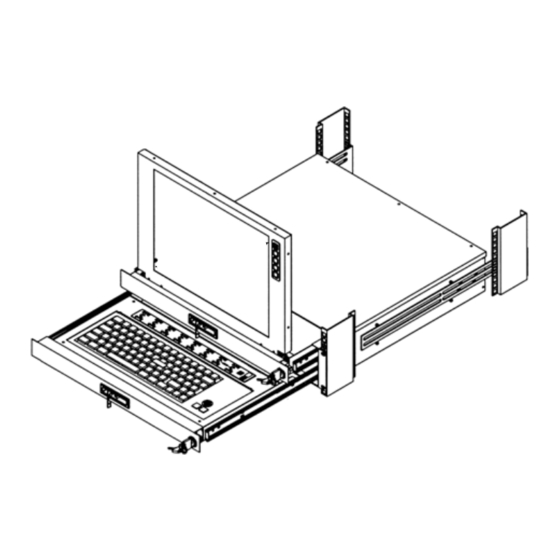

- Page 1 User Manual RKP2415 / 2417 / 2419 2U 15” / 17” / 19” Rackmount TFT LCD Monitor Keyboard Drawer...
-
Page 2: Table Of Contents
RKP2415 / RKP2417 / RKP2419 Table of Content Introduction Features Package Contents Optional Accessories Peripheral Products Important Safeguards Structure Diagram Dimension Diagram 10. LCD OSD Menu Operation 11. Resolution Settings 12. Technical Specification Rev. : 1.0 Table Of Content RKP2415... -
Page 3: Introduction
RKP2415 / RKP2417 / RKP2419 RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system. -
Page 4: Package Contents
RKP2415 / RKP2417 / RKP2419 LCD Monitor User Manual DC Power Adapter Power Cord Mounting Bracket Key for front acess lock Fasteners CD-6 3-in-1 KVM cable Before Unpacking It is very important to locate the LCD Keyboard Drawer in a suitable environment. -
Page 5: Optional Accessories
RKP2415 / RKP2417 / RKP2419 Model SUN-31 Model CV-401 CV-801 CV-1601 CV-101 Rev. : 1.0 Optional Accessories Description SUN / iMac USB to PS/2 adapter Video Input 15" - 19" Touch Screen 12V / 24V / 48V DC Power Supply... -
Page 6: Important Safeguards
RKP2415 / RKP2417 / RKP2419 Please read all of these instructions carefully before you use the device. Save this manual for future reference. Unplug the LCD Keyboard Drawer from the power outlet before cleaning. ● Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a ●... -
Page 7: Structure Diagram
RKP2415 / RKP2417 / RKP2419 PS/2 keyboard Aluminium front panel Class A active matrix TFT LCD panel Analog to digital signal converter board Rear metal case LCD inverter LCD membrane Ball bearing telescopic slides with stopper Adjustable mounting bracket Optional KVM switch Rev. -
Page 8: Dimension Diagram
RKP2415 / RKP2417 / RKP2419 User Manual Dimension Diagram RKP2415 2U 15” LCD Keyboard Drawer Rev. : 1.0... -
Page 9: Rkp2417
RKP2415 / RKP2417 / RKP2419 User Manual Dimension Diagram RKP2417 2U 17” LCD Keyboard Drawer Rev. : 1.0... -
Page 10: Rkp2419
RKP2415 / RKP2417 / RKP2419 User Manual Dimension Diagram RKP2419 2U 19” LCD Keyboard Drawer Rev. : 1.0... -
Page 11: Lcd Osd Menu Operation
RKP2415 / RKP2417 / RKP2419 LCD OSD Menu Operation LCD Membrane Diagram Main Menu Bright / Contrast To enter into the Bright, Black level & Contrast sub-menu ● Auto Adjust To perform automatic optimisations of all functions ● An “ Adjusting” message is displayed during the process ●... - Page 12 RKP2415 / RKP2417 / RKP2419 Bright / Contrast 1. Brightness To perform brightness adjustment of the input RGB signal ● Use the Left & Right button to adjust and button ● 2. Contrast To adjust the contrast level of the input signal ●...
- Page 13 RKP2415 / RKP2417 / RKP2419 MISC 1. Information The first header row shows the current resolution setup ● The second header row shows the horizontal frequency of the current ● input signal The third header row shows the vertical frequency of the current input ●...
-
Page 14: Resolution Settings
RKP2415 / RKP2417 / RKP2419 For Microsoft Windows Step 1 – Press right click on the desktop Step 2 – Choose “Properties” Step 3 – Change the “Screen Resolution” Step 4 – Change the “Screen refresh rate” Rev. : 1.0 Resolution Settings P.13... -
Page 15: For Sun Servers
RKP2415 / RKP2417 / RKP2419 For SUN Servers Resolution configuration procedures should be run by qualified SUN ● server administrator Sun Servers are using resolution at 1152 x 900 x 76Hz. ● Supported resolution mode for 15” LCD: ● 1024 x 768 x 70/75Hz ●... -
Page 16: Technical Specification
H.Position, V.Position, Phase, Scaling Auto Config., Input Select, Multi-Window Clear EEPROM, OSD adjust 12V DC Adapter 15-pin D-Sub Connector RKP2415 / 2417 : 43.9W x 8.8H x 44D cm RKP2419 : 43.9W x 8.8H x 48D cm RKP2415 : 11kg / P.15 Description South Korea 17”...
