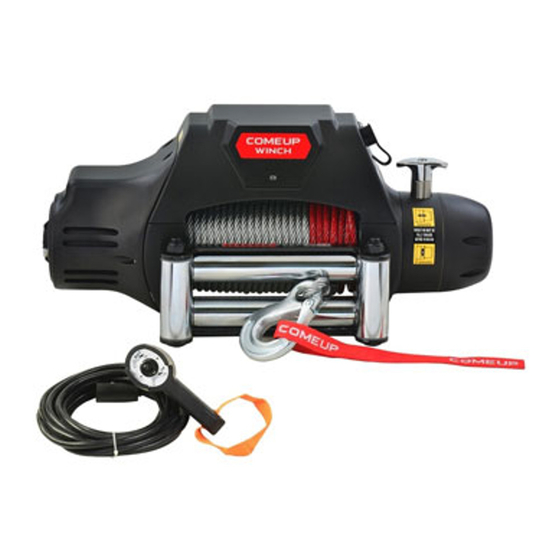

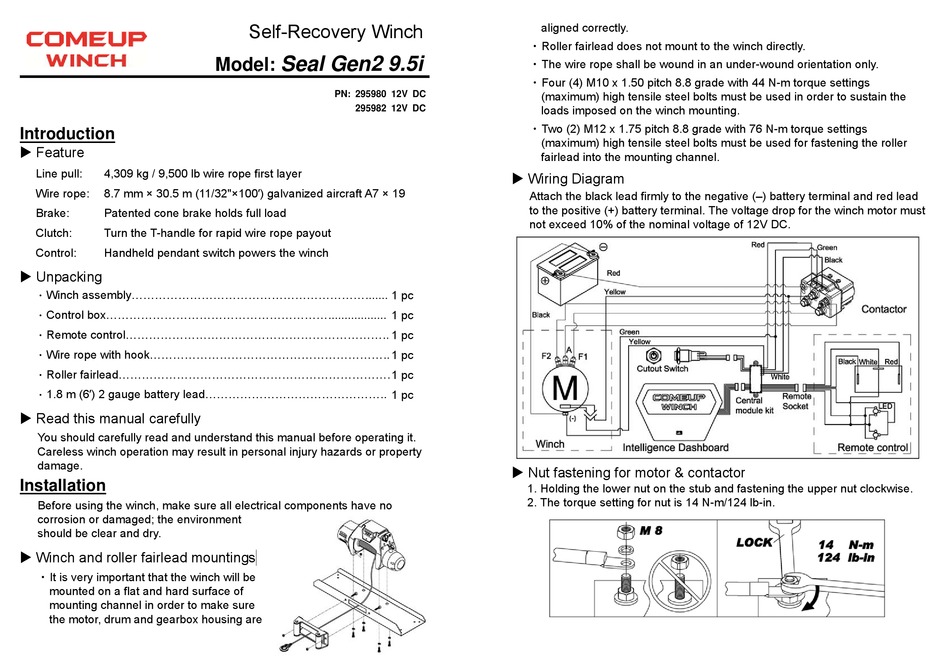

Comeup Winch Seal Gen2 9.5i Quick Start Manual

Introduction

 Feature
Line pull: 4,309 kg / 9,500 lb wire rope first layer
Wire rope: 8.7 mm × 30.5 m (11/32"×100') galvanized aircraft A7 × 19
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch
 Unpacking
．Winch assembly................................................................... 1 pc
．Control box........................................................................... 1 pc
．Remote control.................................................................... 1 pc
．Wire rope with hook.............................................................. 1 pc
．Roller fairlead...................................................................... 1 pc
．1.8 m (6') 2 gauge battery lead............................................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment
should be clear and dry.
 Winch and roller fairlead mountings
 It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure
the motor, drum and gearbox housing are
Self-Recovery Winch
Seal Gen2 9.5i
Model:
PN: 295980 12V DC
295982 12V DC
aligned correctly.
 Roller fairlead does not mount to the winch directly.
 The wire rope shall be wound in an under-wound orientation only.
 Four (4) M10 x 1.50 pitch 8.8 grade with 44 N-m torque settings
(maximum) high tensile steel bolts must be used in order to sustain the
loads imposed on the winch mounting.
 Two (2) M12 x 1.75 pitch 8.8 grade with 76 N-m torque settings
(maximum) high tensile steel bolts must be used for fastening the roller
fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor must
not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.
