Comeup Winch Rhino 8 Quick Start Manual

Introduction

Feature

Line pull:
Brake:
Clutch:
Control:
Recommended
wire rope:

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.

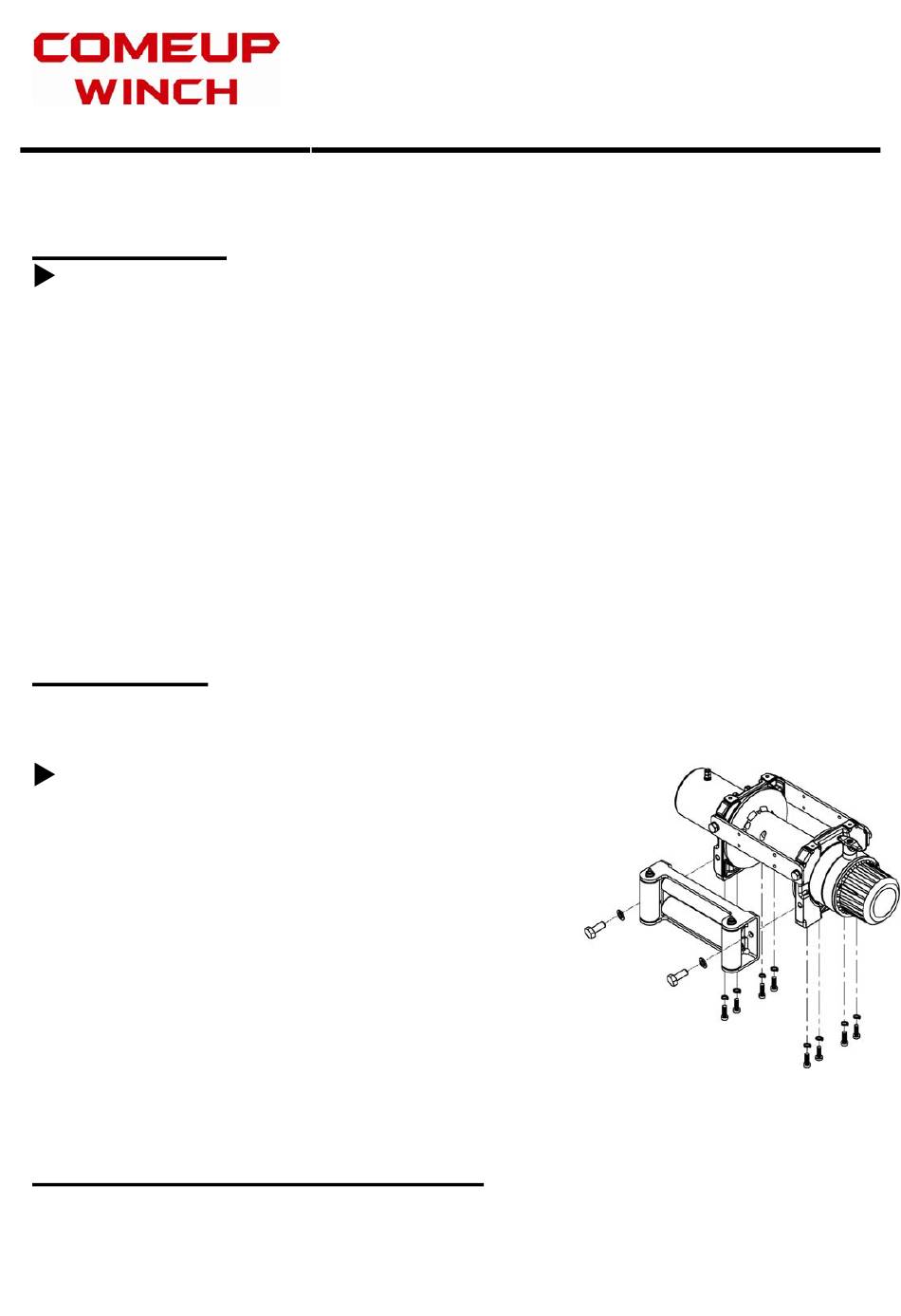

Mounting

．Winch shall be mounted on a flat and hard
surface.
．Winch should be mounted as closed to
center and as horizontal as possible to the
direction of the line pull.
．Wire rope shall be wound in an under-wound
orientation only.
．Eight (8) M10 X 1.5 pitch 8.8 grade w/44 N-m
torque setting (maximum) high tensile steel
bolts must be used in order to sustain the
loads imposed on the winch mounting.
． Two (2) M12 x 1.75 pitch 8.8 grade w/76 N-m
torque setting (maximum) high tensile steel bolts must be used for
fastening the roller fairlead into the mounting channel.
．It is always preferred to use both tie bars in the final installed configuration.

Compliance with EN 14492-1

The winch complies with European Standard of EN-14492:2006
Power-Driven Winches, CE Machinery Directive 2006/42/EC and CE EMC
Directive 2004/108/EC provided that the OWNER or END USER complies
with all responsibilities described below.
3,630 kg / 8,000 lb single line ( SAE J706 rating)
3,560 kg single line (EN 14492-1 rating)
Automatic, full load cone brake
Turn the T-handle for rapid wire rope payout
Handheld pendant switch powers the winch
* 10 mm x 22.6 m, 1,960 N/mm2 grade with a minimum
breaking strength of 69.8 KN required for EN 14492-1 rating
* 3/8" x 100', EIPS grade with a minimum breaking strength
of 15,663 lbf required for SAE J706 rating

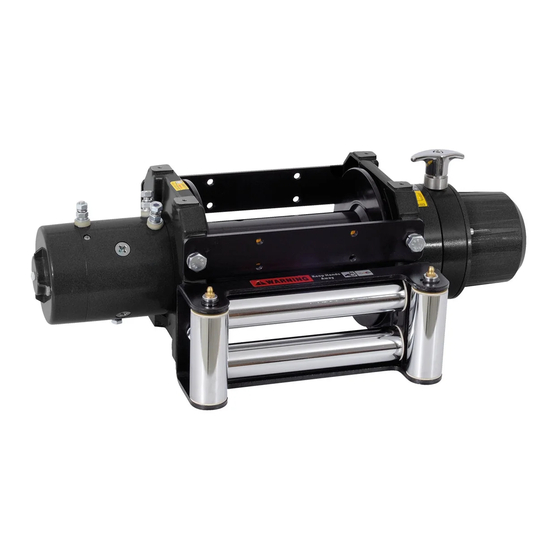

Electric Recovery Winch
Model:
Rhino 8
PN: 850812 12V DC
850824 24V DC
