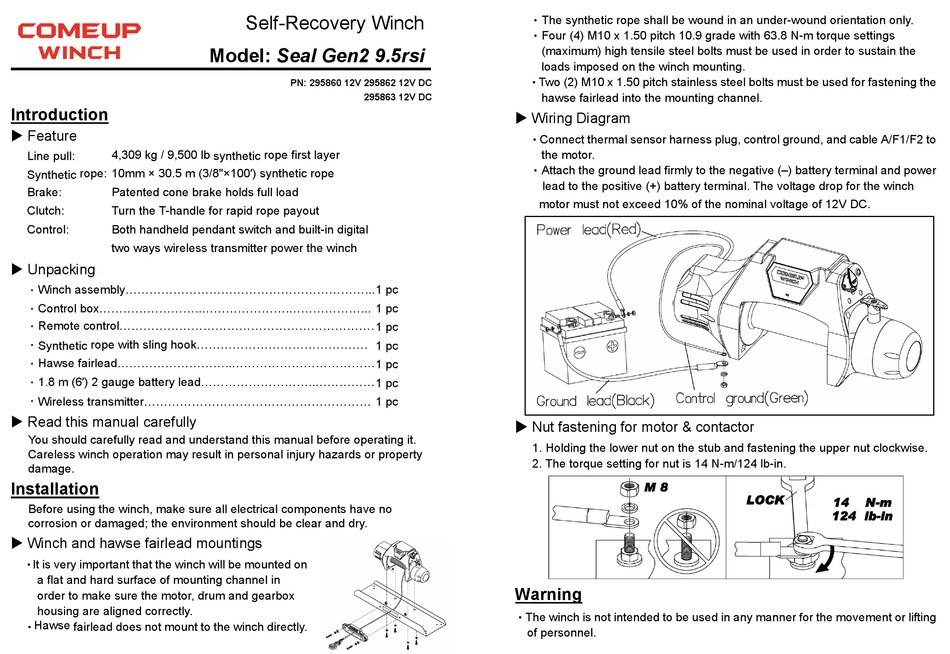

Comeup Winch Seal Gen2 9.5rsi Quick Start Manual

Introduction

 Feature
4,309 kg / 9,500 lb synthetic rope first layer
Line pull:
Synthetic rope: 10mm × 30.5 m (3/8"×100') synthetic rope
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid rope payout
Control: Both handheld pendant switch and built-in digital
two ways wireless transmitter power the winch

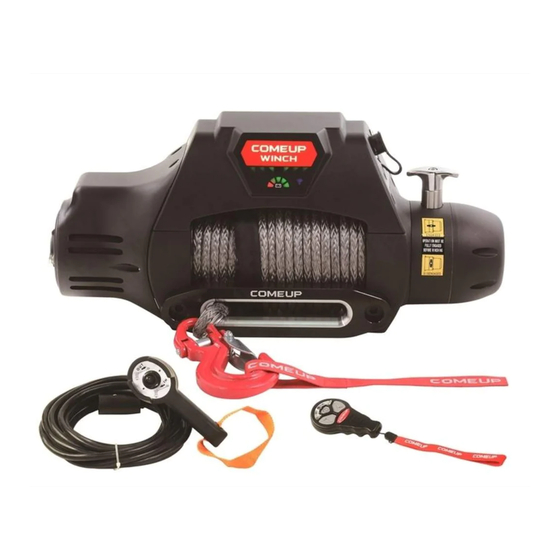

 Unpacking
．Winch assembly............................................................... 1 pc
．Control box..................................................................... 1 pc
．Remote control................................................................ 1 pc
． Synthetic rope with sling hook........................................... 1 pc
．Hawse fairlead................................................................. 1 pc
．1.8 m (6') 2 gauge battery lead............................................ 1 pc
． Wireless transmitter......................................................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Winch and hawse fairlead mountings
‧It is very important that the winch will be mounted on
a flat and hard surface of mounting channel in
order to make sure the motor, drum and gearbox
housing are aligned correctly.
‧ Hawse fairlead does not mount to the winch directly.
Self-Recovery Winch
Model: Seal Gen2 9.5rsi
PN: 295860 12V 295862 12V DC
295863 12V DC
‧The synthetic rope shall be wound in an under-wound orientation only.
‧Four (4) M10 x 1.50 pitch 10.9 grade with 63.8 N-m torque settings
(maximum) high tensile steel bolts must be used in order to sustain the
loads imposed on the winch mounting.
‧Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the
hawse fairlead into the mounting channel.
 Wiring Diagram
•Connect thermal sensor harness plug, control ground, and cable A/F1/F2 to
the motor.
•Attach the ground lead firmly to the negative (–) battery terminal and power
lead to the positive (+) battery terminal. The voltage drop for the winch
motor must not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.

Warning

‧The winch is not intended to be used in any manner for the movement or lifting
of personnel.
