Comeup Winch Seal 16.5rsi TE Manual

Introduction
 Feature
Line pull: 7,484 kg / 16,500 lb synthetic rope first layer
Wire rope: 12.7 mm × 25 m (1/2"×82') synthetic rope
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch

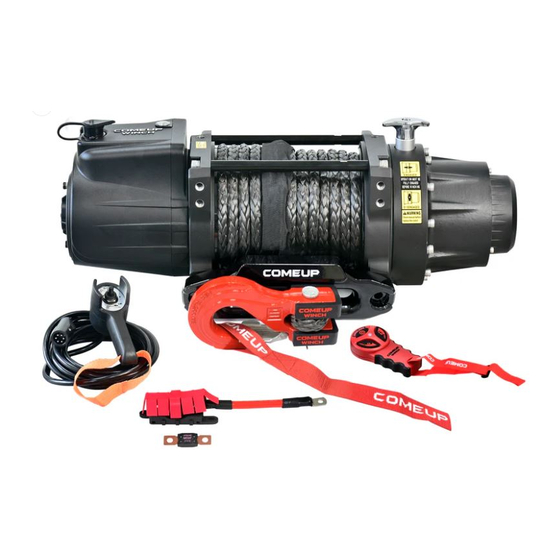

 Unpacking
．Winch assembly................................................................... 1 pc
． Potted control box.................................................................... 1 pc
．Remote control.................................................................... 1 pc
．Synthetic rope with BossHook 1/2............................................ 1 pc
．Hawse fairlead..................................................................... 1 pc
．1.8 m (6') 2 gauge battery lead............................................... 1 pc
． Wireless Transmitter............................................................. 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Installation
Before using the winch, make sure all
electrical components have no corrosion
or damaged; the environment should be
clear and dry.
 Winch and hawse fairlead
mountings
． It is very important that the winch will be
mounted on a flat and hard surface of mounting channel in order to make
Seal 16.5rsi TE
Model:
PN: 298341 298376 12V
298352 24V
sure the motor, drum and gearbox housing are aligned correctly.
． Hawse fairlead does not mount to the winch directly.
． The synthetic rope shall be wound in an under-wound orientation only.
． Eight (8) M12 x 1.75 pitch 12.9 grade w/137 N-m torque setting (maximum)
high tensile steel bolts must be used in order to sustain the loads imposed
on the winch mounting.
‧Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the
hawse fairlead into the mounting channel.

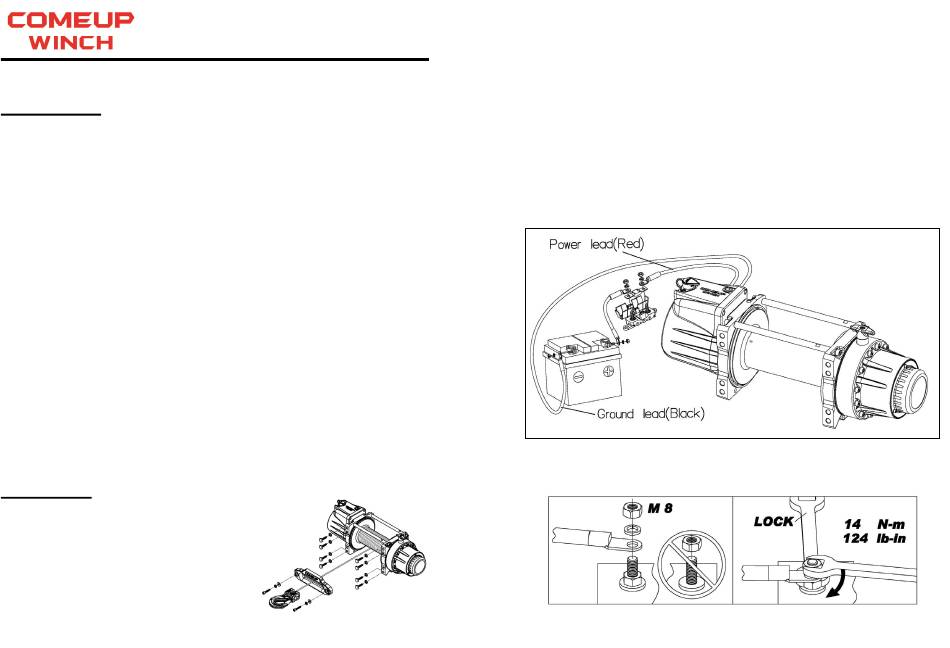

 Wiring Diagram
•Connect thermal sensor harness plug, control ground to the motor.
•Attach the ground lead firmly to the negative (–) battery terminal and power
lead to the positive (+) battery terminal. The voltage drop for the winch
motor must not exceed 10% of the nominal voltage of 12V/24V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.
