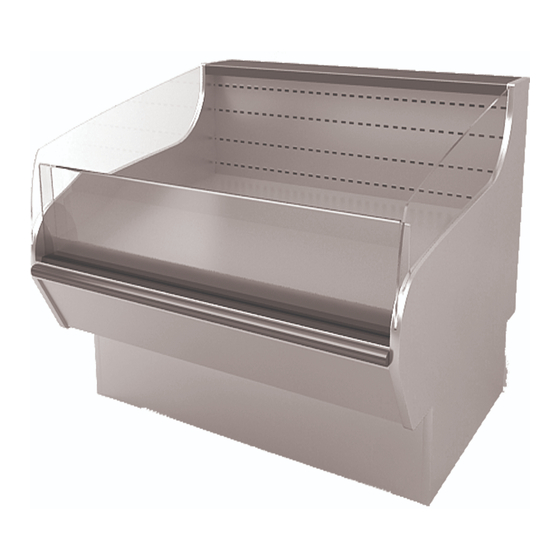

Hussmann Q1-SS Technical Data Sheet

24
G
H

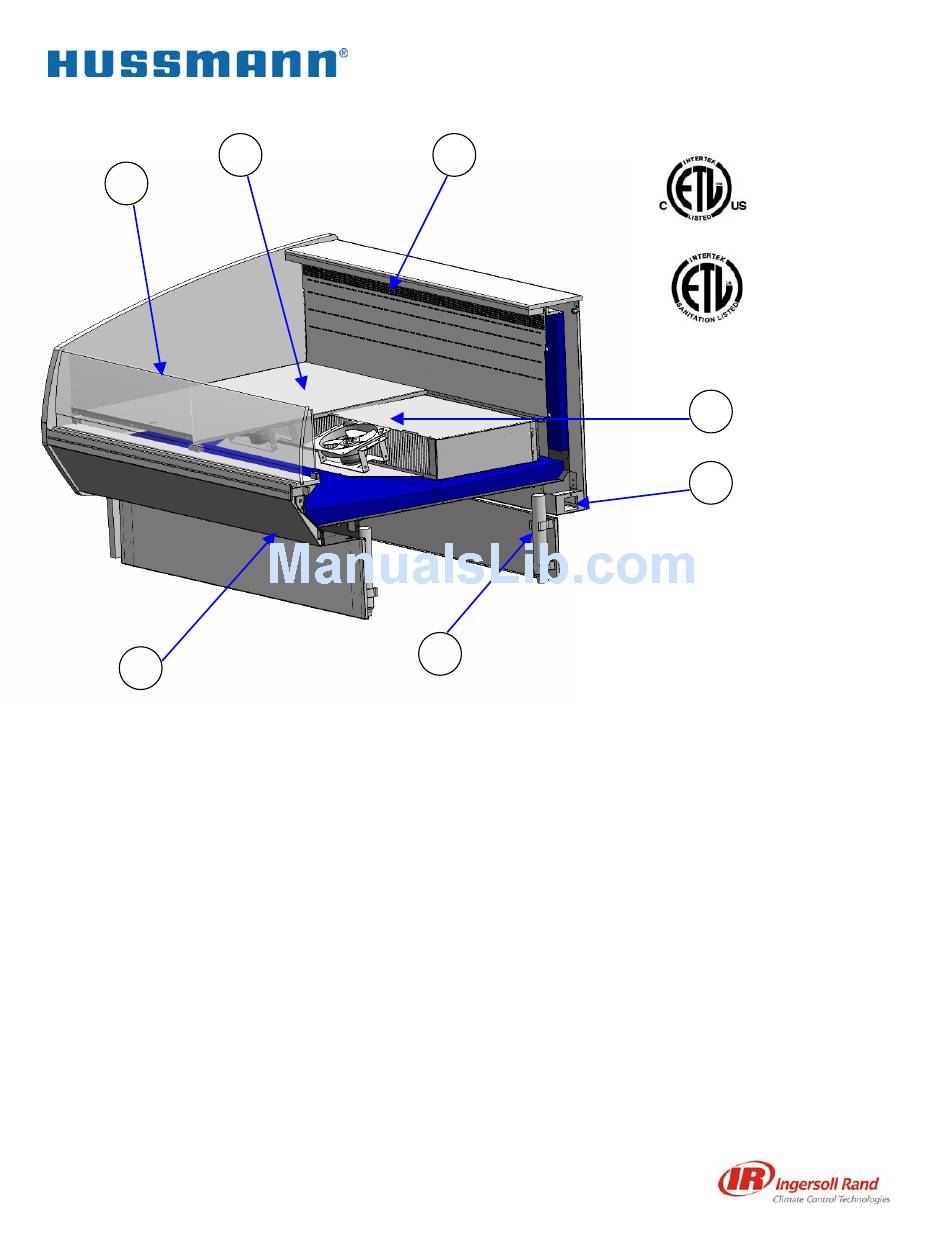

Item Part# Description
A. Rear Discharge
Rear
N/A (integrated into rear wall)
B. Electrical Box Assembly
Ballast
Omni Stat
Switch
C. Evaporator Assembly
0392457 4 Watt Fan Motor
0420092 Fan Blade (exc. Wedge Cases)
175-01-1062 Fan Blade (45° OS Wedge Cases)
0409512 Fan Blade (45° IS Wedge Cases)
(TBD) Fan Blade (22.55° OS Wedge Cases)
(TBD) Fan Blade (22.55° OS Wedge Cases)
(TBD) Fan Blade (90° OS Wedge Cases)
0409510 Fan Shroud
D. Leg Assembly
NSF Adjustable Leg
NSF Caster
E. Rear Ledge
Replaceable/Optional
Contact Facility for available materials
Specialty Products
F
Wiring Item #
Q-Series
A
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
D
replacements for equipment previously sold or shipped.
Item Part#
F. Interior deck pans (materials/colors vary)
G. Front Plex
037329
037328
037327
037326
037325
H. Optional Ledge Light Bulbs
1 of 24
Q1-SS
Technical Data Sheet
P/N Q1SS
ETL Listed
40427
ETL Sanitation
40427
C
B
Description
2' deck pan: 4,6,8,10,12ft
2 1/2' deck pan: 5 ft
4' Front Plex
6' Front Plex
8' Front Plex
10' Front Plex
12' Front Plex
T5 1' (F8)
T5 2' (F14)
T5 3' (F21)
T5 4' (F28)
T5 5' (F35)
Rev B
Wiring Item #
