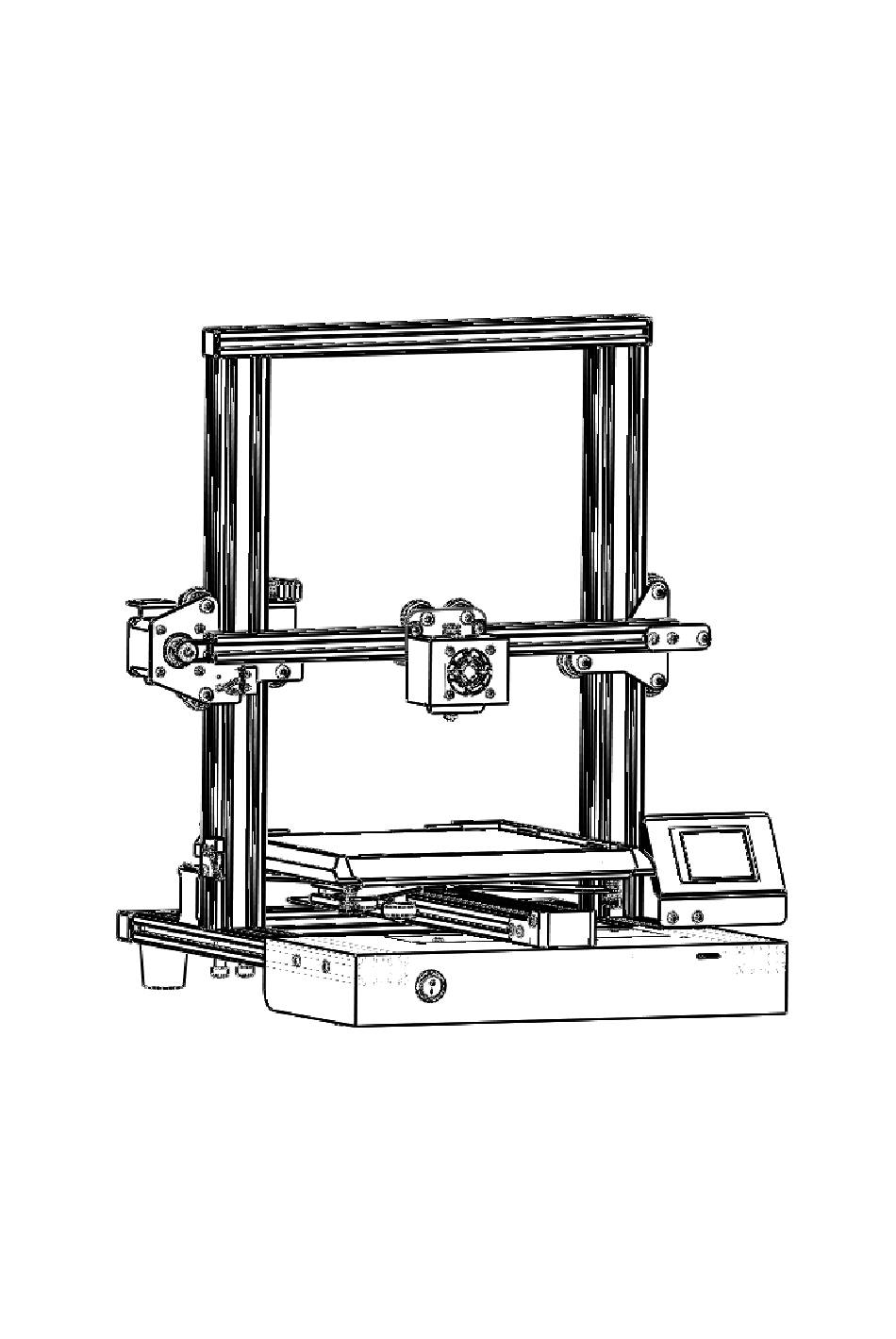

- Page 1 Pioneer Operation Instruction...
-
Page 2: Table Of Contents
Contents INSTRUCTION -------------------------------------------------------------------------------------------------------------------------------------------- 3 Security Considerations -------------------------------------------------------------------------------------------------------------------------------- 4 Product Details ------------------------------------------------------------------------------------------------------------------------------------------- 5 Printing Operation -------------------------------------------------------------------------------------------------------------------------------------- 6 Main interface（This interface is the main interface when it is not printed） ---------------------------------------------- 6 2.Extruder preheat interface ------------------------------------------------------------------------------------------------------------------- 6 3.Keyboard input interface --------------------------------------------------------------------------------------------------------------------- 7 4.Application interface -------------------------------------------------------------------------------------------------------------------------- 7 5.System interface -------------------------------------------------------------------------------------------------------------------------------- 9 Filament installation ----------------------------------------------------------------------------------------------------------------------------------- 10... -
Page 3: Instruction
INSTRUCTION The 3D printer adopts the principle of fused deposition molding and can print the designed three-dimensional model diagram into a real object. Features: Full metal frame structure; 2.4 inch touch screen operation; removable hot bed; high printing accuracy;low noise. Special Note：... -
Page 4: Security Considerations
Security Considerations To avoid danger when using 3D printer , please pay attention to precautions ◆ below 1. During Operation , the maximum temeprature of nozzle can be 260 ℃ while hotbed can be 100 ℃ . For your safety , during printing or cooling down , do not touch the nozzle , hotbed and models under printing . 2. -
Page 5: Product Details
Product Details Specification Model：pioneer Nozzle diameter： 0.4mm (Standar configuration) Layer thickness：0.1-0.3mm Machine size：390 *410 x*490 mm Printing speed:10-120mm/s Machine weight：7kg Packing size：470 * 390 * 215mm X Y axis position accuracy：0.012mm Z axis position accuracy：0.004mm Gross weight：8kg Printing material： PLA,ABS Build size：220mm*220mm*240mm... -
Page 6: Printing Operation
Printing Operation d） Main interface （ This interface is the main interface when it is not printe Hot bed real-time Extuder real-time temperature/preset temperature/preset temperature temperature SD card status The Home page contains loading and unloading filament, applications, systems and prints, and displays temperature and SD card status in real time. -
Page 7: Keyboard Input Interface
Retraction button: The extruder performs a single retraction operation. Extrude button： The extruder performs a single extrusion operation. Note: If you do not reach 175°C, the inputs of the [Retraction button] and [Extruded button] are invalid. If the extruder moves in the opposite direction, you can modify the direction of the E -axis motor in the 。... - Page 8 Hot bed preheating： ⚫ Real-time display “current temperature”/ “target temperature” ，touch to manually enter the target temperature value。 Heating status touch to turn off heating。 Unheated status When the target temperature is not 0, touch to turn on heating. ⚫ manual operation：...
-
Page 9: System Interface
update interface， before clicking this button, make sure that the new interface file ⚫ Interface update： "SYSTEM" folder is placed in the SD card. ⚫ Fan PWM speed regulation： Click this button will pop up the keyboard, enter the corresponding value, the fan will turn. -
Page 10: Filament Installation
Filament installation Extruder preheating ：click on “loading and unloading filament”on the main interface enter into extruder heating interface，click setting extruder temperature， then click heating the extruder。 （ Note: PLA filament temperature setting 190-240 °C; ABS filament temperature setting: 220-260 °C.） Install filament：... -
Page 11: Print Platform Leveling
Filament replacement： Retraction filament method (take PLA as an example)： 3.1. Please preheat the printer to 200°； 3.2. When the temperature reaches 200°, the thumb presses the feed handle, while the other hand first presses the filament downwards to feed a filament item, and then pulls out the filament at a constant speed.；... - Page 12 When the interface shows Click Next Btn, click “next” button, the printer will move the nozzle to the first point of the platform. Adjust the nut of the print platform so that the distance between the nozzle and the print platform is about 0.1mm (about the thickness of an A4 paper)；...
-
Page 13: Printing
Printing 1. Printing operation ， select the file you wan to print in the SD card file list， click to print the file， Then Click “Print” on the main interface click OK to print. Touching the interface for a long time will reset the interface.（For the slicing operation of the print model, please refer to the KURA Software's operating instructions.）... -
Page 14: Judgment Of The Gap Between Nozzle And Platform
⚫ click button can pause to print ⚫ click button can stop printing ⚫ is print setting,touch to enter the interface as follows： is print platform temperature,click to set the print platform temperature is extruder temperature，click to set the extruder temperature is printing speed，click to set the pringting speed。... -
Page 15: Faq And Solutions
⚫ When the nozzle is too far from the printing platform： ⚫ The printed model is uneven, curled with gap. The consumables fall down to the hot bed by gravity and form a rounded strip. The adhesion effect is not good and the model is easy to move. -
Page 16: Maintenance
Filament and setting Filaments match the corresponding temperature do not match， Printer model is warped temperature， Adjust hotbed Hotbed level isn’t well adjusted. Changes in the zero Z-axis limit switch is loose, position each printing, Check if the screws are loose, tighten H-type hot bed bracket screw resulting in and re-adjust the Z-axis left and right... -
Page 17: Maintenance Service Regulations
rotate the motor synchronous wheel in the opposite direction and positive direction. If the moving distance of extruder before and after is not equal, indicating too loose; you can also press the middle of the belt, if you gently press the belt arc is very large, indicating that the belt is too loose;...
