Night curtain with internal brake

Advertisement

Quick Links

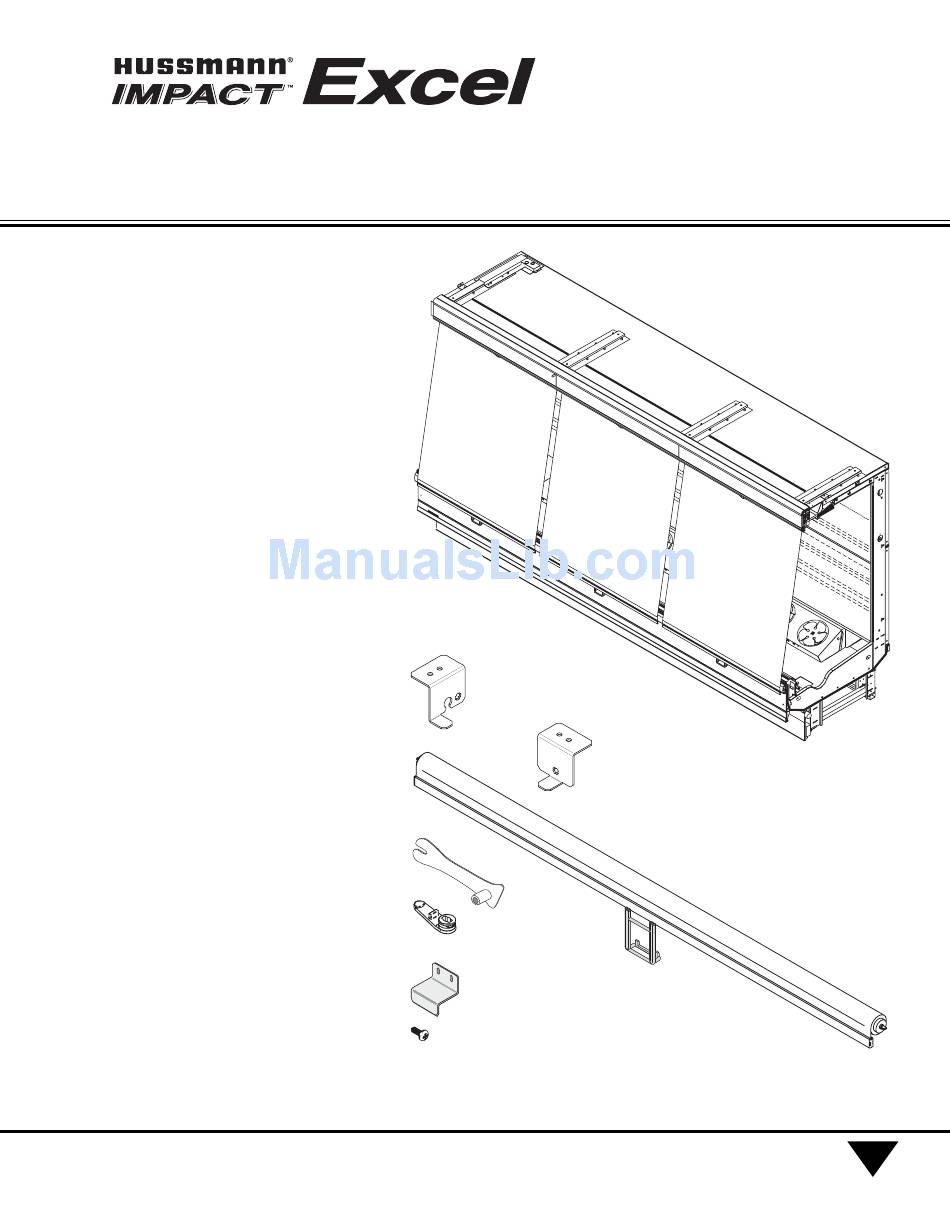

Illustration depicts an M3X-12EP
with three Night Curtains installed.
PARTS LIST (per curtain)
Item
Quantity
Description
1.
Night Curtain Brackets
(Factory Installed)
1
Left-hand
1
Right-hand
2.
1
Night Curtain
3.
1
Wrench
4.
1
Spindle Lock
5.
Handle Hook
1
6.
Screw (#6 x
2
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Multi-deck Cases
LH
3
/
)
8
Night Curtain
with Internal Brake
Excel Medium Temperature
for
Standard Canopy
with
RH
P/N 0500175_A
January 2008
