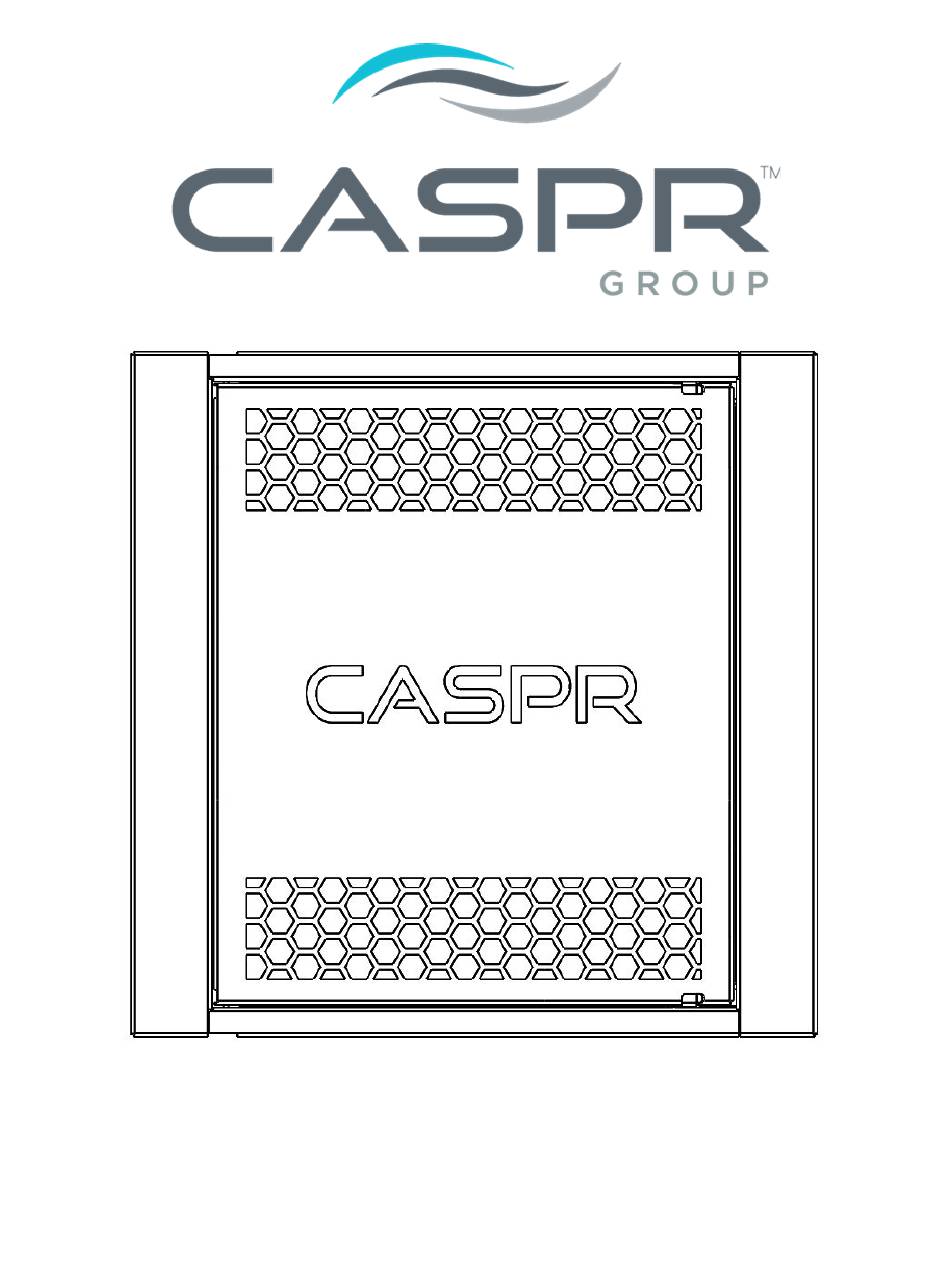

  • Page 1 TILE Owner’s Manual CAUTION: Read manual carefully for proper procedures and operation.
  • Page 2 Disconnect unit from power supply before servicing. Failure to follow warnings may result in severe eye damage and electrical shock. Please record the name and phone number of your CASPR Distributor. Name: Phone#: Please record the name and phone number of your Independent Contractor.

  • Page 3: Table Of Contents

    Warranty Information ................... 8 Congratulations on your purchase of a TILE by CASPR air purification enhancement system. This unit is designed to be mounted into a ceiling. Please read and follow all safety warnings and service procedures outlined in this manual. Use only genuine CASPR replacement parts available from your Independent HVAC Contractor.

  • Page 4: Specifications

    Specifications Electrical: Dimensions: 110-240 VAC 50/60 Hz 1.8A 23.9 in. x 23.9 in. x 5.4 in. 277 VAC 50/60 Hz 0.9A (North America only) 60.71 cm x 60.71 cm x 13.72 cm Mechanical: Weight: 88 CFM 10.5 lbs 149 m3/h (2 fans) 4.76 kg...

  • Page 5: Install The Cell Assembly

    Can cause injury or death. Disconnect all electrical power supplies before servicing. Install the Cell Assembly 1. Open the front door of the TILE unit. 2. Remove the Bracket Assembly by 3. Remove the 2 additional screws unscrewing the top thumb screw.

  • Page 6: Tile Installation

    TILE Installation The TILE is designed to be mounted in place of a standard 2 ft x 2 ft ceiling tile. Installation is only to be performed by a qualified electrician. A power switch turns the unit ON and OFF.

  • Page 7: Replacement Parts (Purchased Separately)

    6. Connect Bulb 7. Attach Cell Housing to 8. Install Assembly on to socket in the bracket with previously TILE unit and secure Bracket Assembly. removed thumb screws (2). with top thumb screw. Replacement parts (purchased separately): NCC Cell (Ozone-Free) CELL-VV-14-001-AP Cell Disposal Do not throw a used NCC Cell in the garbage.

  • Page 8: Warranty Information

    WHAT IS COVERED BY THIS WARRANTY LIMITATION OF LIABILITY FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES We warrant the TILE to the Customer, subject to the conditions below, against defects in workmanship or WE SHALL NOT IN ANY CASE BE LIABLE FOR...
  • Page 9 Industrial, Scientific, and Medical Model: CATILE21 Equipment (ISM), pursuant to Manufacturer: CASPR Group. Part 18 of the FCC Rules. These limits are designed to provide This device complies with Part 18 of the reasonable protection against FCC Rules.
