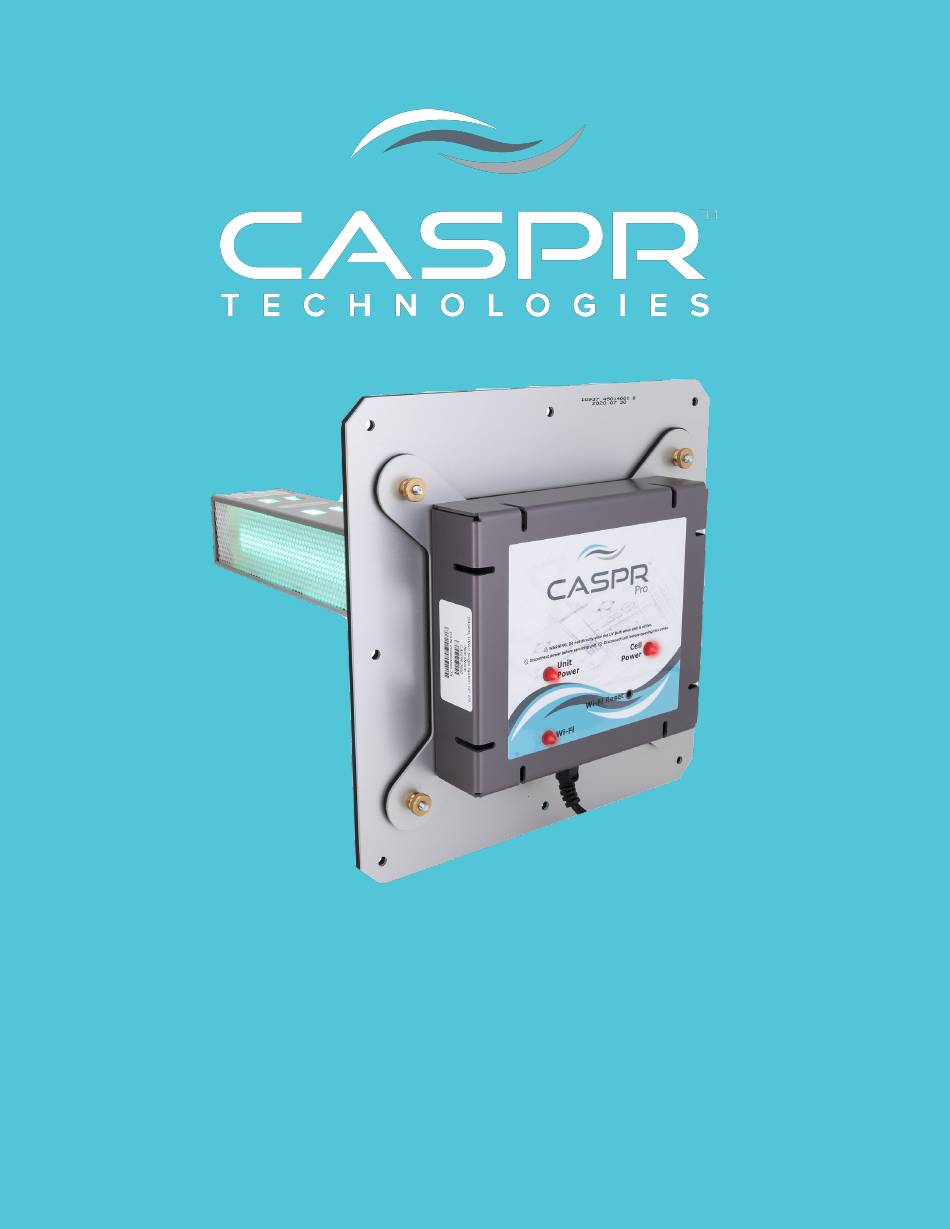

- Page 1 PRo Owner’s Manual The information in this manual is applicable to these HVAC CASPR Home PRO 9 | CASPR Home PRO 14 units: CAUTION: Read manual carefully for proper procedures and operation.
-
Page 2: Table Of Contents
It can compromise cellular integrity by disrupting cell walls, or internal molecular structures, rendering contaminants harmless. To learn more about this and other CASPR Technologies products, please visit our website at www.casprtech.com. Table of Contents Warnings....................3... -
Page 3: Warnings
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be taken. READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT WARNING! To reduce the risk of fire, electrical shock, or injury: • Use only as described in this manual. •... -
Page 4: Specifications
(HxWxD)* DC 24V 120V CASPR Home PRO 9 10,000 ft 0.64 0.30 9.75” x 9.75” x 11” 3.1 lb CASPR Home PRO 14 3.3 lb 25,000 ft 9.75” x 9.75” x 16.75” 0.44 Product Contents Ballast Housing I Cell Mounting... -
Page 5: Installation Hardware
Replacement Parts The NC I Cell and bulb should be replaced every 18-24 months. Please contact your distributor for new replacements. CASPR HomePro9 NC I Cell Part Number: CELL-HV-9-001-AP CASPR HomePro14 NC I Cell Part Number: CELL-HV-14-001-AP Recommended Installation Tools A - 4”... -
Page 6: Electrical Requirement
Electrical Requirement All CASPR Home PRO duct mounted units run on DC 24V. Each unit comes with a power adapter that will take AC 100-240V. We recommend locating the unit within 6 ft. of a standard 120V Grounded outlet to plug in directly. Long term use on an extension cord is not recommended due to safety considerations. -
Page 7: Installation Instructions
Installation Instructions Diagrams are representative of the CASPR Home PRO 9 and Home PRO 14. The steps are the same for the 1. Find a suitable location to mount your Unit. 2. If necessary, cut away insulation for your plate to adhere to the duct. -
Page 8: Alternative Cutting Method
Alternative Cutting Method 1. Using the Adhesive Mounting Bracket, trace the hole location onto the duct. 2. Drill holes around the outside edges of the previously marked hole but inside the outer holes of the Adhesive Mounting Bracket. 3. Use the Tin Snips to cut out the space around the marked hole. -
Page 9: Installation (Continued)
Installation (continued) 5. Press the Adhesive Mounting Bracket onto the duct. Secure with the (8 Self- Tapping Screws. 6. Remove the packing foam from the I Cell DO NOT TOUCH BULB WITH BARE HANDS 7. Connect the Cell to the Ballast Housing using the (2) Cell Mounting Screws provided. -
Page 10: Indicator Lights
Indicator Lights • Unit Power - Red light is ON. • Cell Power - Red light is ON. Ϩ Red light ON - Bulbs are on. Ϩ Red light OFF - bulb has burned out and needs to be replaced. NOTE: THIS MODEL IS NOT WIFI ENABLED;... -
Page 11: Maintenance
Please do not throw the used NC I Cells or bulbs in the garbage. The high intensity bulb used in the CASPR Home PRO unit contains a very small amount of mercury. Contact your local Waste Management Center for a proper disposal procedure. -
Page 12: Cell (Continued)
Changing the NC I Cell Continued 1. Remove the packing foam from the new NC I Cell 2. Exchange the Old NC I Cell with the new NC I Cell and replace the (2) Screws that hold it in place. 3. -
Page 13: Troubleshooting Q&A
Troubleshooting Q&A 1. How big is the cut hole? A. You must cut a 4” diameter hole. 2. What power does it run on? (Voltage) A. You may use an AC 120VAC (With transformer) or a DC/AC 24V Direct. Remember that the wire must be cut and spliced in order to properly connect to the device (Please see hard wiring requirements). -
Page 14: Warranty Information
Product or Components defects, including but not limited to downtime costs, loss of use, loss of revenue, and/or loss of profits. SALES THROUGH DISTRIBUTOR OR RESELLER To the extent the Product is purchased by Buyer from an authorized CASPR distributor or reseller, this Express Limited Warranty passes through to Buyer. FOR U.S. APPLICATION ONLY Product warranties are governed by state and federal laws and may vary from state to state. - Page 15 www.CASPRtech.com 620 Lotus Drive N, mandeville, la 70471 (844) 717-8819 V.IN-M-PRO-04-02018024-AE...
