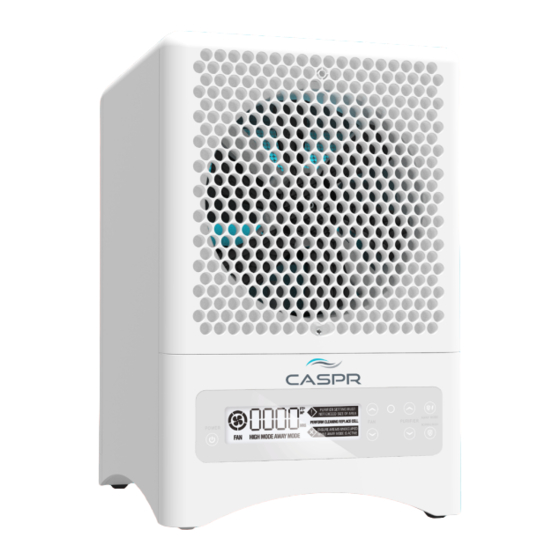

CASPR Compact Owner's Manual

Hide thumbs Also See for Compact:

Advertisement

Quick Links

Download this manual
CASPR
Compact
Owner's Manual
www.CASPRGROUP.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Compact and is the answer not in the manual?

Questions and answers

Related Manuals for CASPR Compact

Summary of Contents for CASPR Compact

  • Page 1 CASPR Compact Owner’s Manual www.CASPRGROUP.COM...
  • Page 2 CASPR COMPACT is designed to provide years of trouble-free service when it is properly maintained. Even when properly cared for, some parts of your CASPR COMPACT will need to be replaced periodically. Replacement parts can be purchased from your authorized distributor or directly from CASPR Group.

  • Page 3: Table Of Contents

    Contents Quickstart Warnings Setup & Operation Diagrams Routine Maintenance Troubleshooting Limited Warranty Records/Specifications...

  • Page 4: Quickstart

    Power on with the remote or by pressing the display screen then set the fan to a comfortable sound level. Leave the CASPR COMPACT in NORMAL Mode - Screen will read PCO This is the standard mode for occupied rooms. High mode is...

  • Page 5: Warnings

    Warnings Review this list before using or performing any maintenance or cleaning of your unit. WARNING: Never operate unit near a heat source, open flame or flammable/combustible fluids. WARNING WARNING: Do not operate unit unless all parts (including Cell, Purification Plate, Rear Filter Assembly and Rear Cover) are properly installed.

  • Page 6: Setup & Operation

    NORMAL mode. The screen will read PCO. This is the optimal setting for running CASPR COMPACT continuously space as possible in front of your CASPR COMPACT so that in your office or home. Adjust the fan to a comfortable It can efficiently process the air in the area.
  • Page 7 2:00, 4:00, 6:00 or 8:00 hours. • When CASPR COMPACT is set to HIGH Mode the display • If AWAY Mode is running when you enter the room, push will ask you to set the square footage. Press the PURIFIER...

  • Page 8: Diagrams

    Diagrams (Unit) Front of Unit Rear of unit Side of Unit Rear Cover Screw Rear Cover Ionization Needle Front Grille Rear Cover Grooves Unit Rear Control Panel Power Adapter Inlet Unit Front...
  • Page 9 (Unit) Rear of Unit Rear of Unit Power Supply (Rear Cover Removed) (Filter Assembly Removed) Cell Power Cord Brass Thumbscrews Filter Assembly Cell Nuts Power Cord Plug Filter Assembly Clasps Cell Connector Power Adapter Purification Plate Power Adapter Plug...
  • Page 10 Diagrams (Controls) Remote Control Panel Normal/High Toggle Power Button Power Button Power Button Fan Speed Control Fan Speed Control Unit control Purifier Level Control (whether in ft or m Must be in high mode first Away Mode Toggle Away Mode Control Fan Level Control LED Display Control (lighting)
  • Page 11 (Controls) Control Panel Screen Mode Specific Display Fan Speed Indicator Normal - Technology Indicator ( High - Square Footage Indicator Maintenance Reminders Away - Mode Duration Indicator Mode Indicator Away Mode Warning (hours:minutes)

  • Page 12: Routine Maintenance

    Turn off the unit with the Power button. Unplug the unit from the power source and then remove To run efficiently, your CASPR COMPACT requires cleaning on the power cord from the back of the unit. a 60 to 90 day cycle. Every month the display will remind you Unscrew and remove the Rear Cover screw located to clean the unit.
  • Page 13 Cord Port and tighten. Removing and Cleaning the Front Grille Locate the Front Grille Screw on the front of the machine above the CASPR logo. Using your screwdriver, carefully remove the Front Grille Screw and place where you will easily find it later.
  • Page 14 LCD Reminders When your CASPR COMPACT unit is in need of maintenance, a message will display on the LCD screen. • Perform Cleaning – this message will display every 30 days. Check to see if the front grill of the unit is dusty. If so, you will need to clean the filter as described in the Routine Maintenance section on page 12.

  • Page 15: Troubleshooting

    Clean them with a soft cloth and rubbing alcohol. If the Power Button on the Control Panel fails, use the Power Button on the Remote Control. If the Control Panel fails, contact your distributor or CASPR Group (www.casprgroup.com). 15 15...
  • Page 16 Cell Power Connector Purification Plate Slot. Outlet. If the Cell still fails to operate, it needs to be replaced. Contact your distributor or CASPR (www.casprgroup.com).

  • Page 17: Limited Warranty

    Limited Warranty Your CASPR COMPACT is warranted to be free from all defects unit shall be warranted to the original purchaser only for the in material and workmanship in normal household use for a length of the unexpired portion of the original warranty. For period of one (l) year from date of purchase.

  • Page 18: Records/Specifications

    Specifications Unit Size: 13” high x 8.75” wide x 10.75” deep Weight: 10.2 lb. Coverage: 1500 ft Power Cord Fuyuang Switching Power Supply Model Number: FY3803000 Input: 100-240VAC 50/60Hz 2.5A Output: 38VDC 3A See the power supply label for certifications and warnings. Cell Normal Mode Output Purification Plate...
  • Page 19 Records Purchase Date: Model Number: CASPR COMPACT Serial Number: Distributor Name: Distributor Phone: Consumer Information CASPR Group declines all responsibility for all damages arising from improper use of the unit or in case of tampering with the unit.
  • Page 20 www.CASPRGROUP.COM...
