Summary of Contents for Hussmann VSG

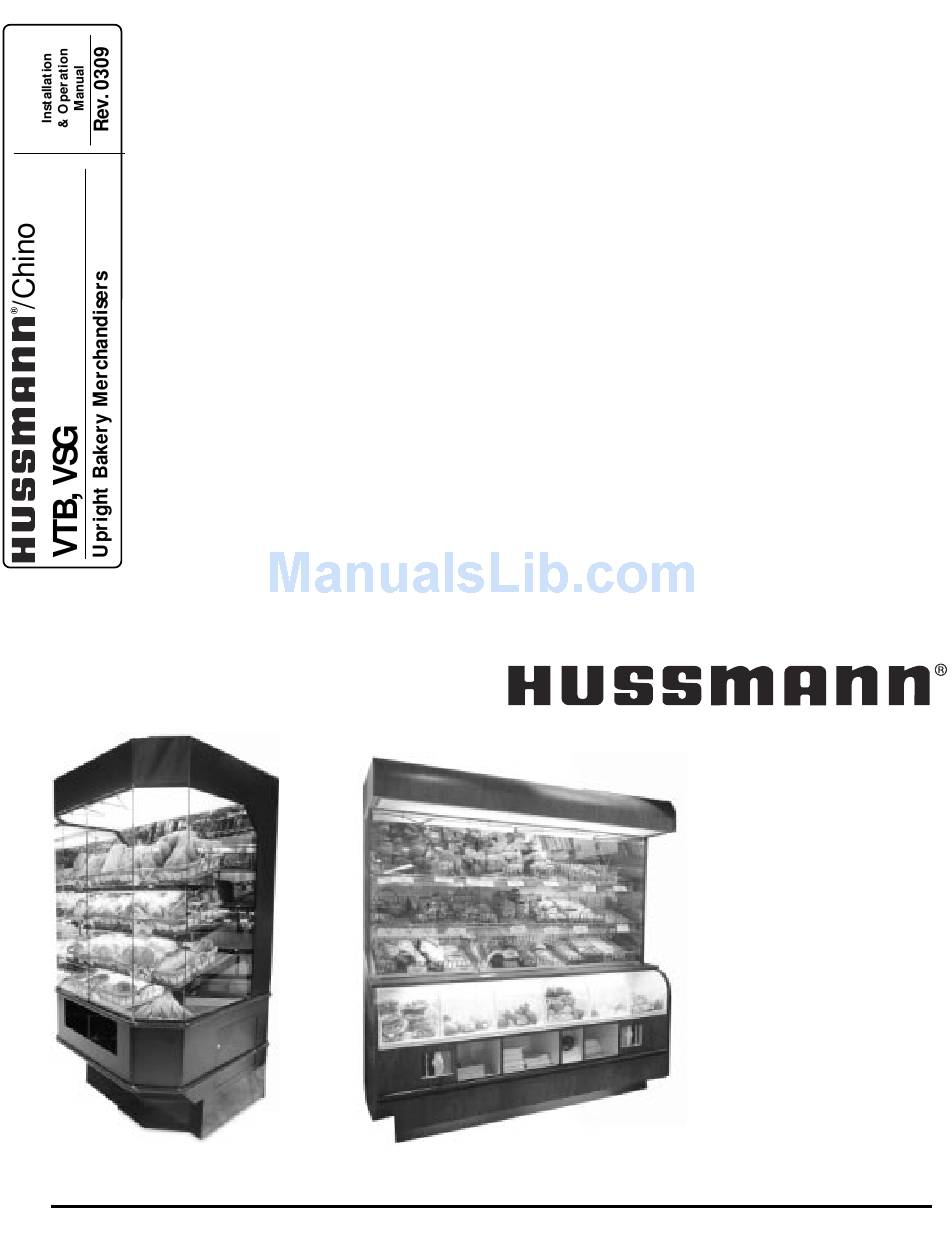

- Page 1 Rev. 0309 VTB, VSG Upright Bakery Merchandisers VSG with DSS Bagel Bin Option p/n IGSV-VTB, VSG-0309 INSTALLATION & OPERATION GUIDE...
-
Page 2: Table Of Contents
THIS BOOKLET CONTAINS INFORMATION ON: VTB-Vista Tower Bakery. Self service bakery case with 5 rows of shelves, and self closing doors. VSG –Vista Sweet Goods Display. Self service bakery case with 4 rows of shelves, and self closing doors. A publication of Hussmann ®... -
Page 3: Cut & Plan Views
Cut & Plan Views Rear Load Option Vista Tower Merchandiser Bakery Case Scale = 1/2" 36" Optional Refrigerated Lower Storage " VSG-DSS Bakery Tower with Optional Refrigerated Lower Storage Scale = 1/4" Rev. 0309 (661) 38'' Optional 4 Deep Shelf Scale = 1/4"... - Page 4 IGSV-VTB, VSG-0309 48" 2-Door Case 56" 2-Door Case • 78" 3-Door Case 56" (78") Bakery Vista Tower Merchandiser Scale = 1/4" 1” Bumper Plan Scale = 1/2" Overhead view Scale = 1/4"...
-
Page 5: Installation
LOCATION The refrigerated merchandisers have been designed for use only in air conditioned stores where temperature and humidity are maintained at or below 75°F and 55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or windows (etc.) to create air currents around the merchandiser, as this will impair its correct operation. -
Page 6: Header
IGSV-VTB, VSG-0309 base of the case. Secure the overhead structure by bolting the rear mullions tegether. Do not use bolts to pull cases together! 9. Apply bead of silicone aling rear wall. 10. Use finger to smooth silicone as thin as possible at... -
Page 7: Plumbing
The P-trap must be installed to prevent air leakage and insect entrance into the fixture. NOTE: PVC-DWV solvent cement is recommended. Follow the Hussmann’s instructions. INSTALLING CONDENSATE DRAIN Poorly or improperly installed condensate drains can seriously interfere with the operation of this refrigerator, and result in costly maintenance and product losses. -
Page 8: Refrigeration
IGSV-VTB, VSG-0309 REFRIGERANT TYPE The standard refrigerant will be R-22 unless otherwise specified on the customer order. Check the serial plate on the case for information. REFRIGERATION LINES LIQUID SUCTION 3/8" O.D. 5/8" O.D. NOTE: The standard coil is piped at 5/8" (suction); however, the store tie-in may vary depending on the number of coils and the draw the case has. -
Page 9: Wiring Color Code
Dry Bakery Dry Bakery VSG - Dry Dry Bakery Dry Bakery Dry Bakery VSG DSS - Refrigerated Display for Cream Cheese and Related Refrigerated Items - Optional Equipment Deli 3,310 ELECTRICAL ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN... -
Page 10: Electrical Schematics
IGSV-VTB, VSG-0309 Electrical Schematics... - Page 11 Rev. 0309 Electrical Schematics (Continued)
-
Page 12: User Information
Hussmann cases were not designed to “heat up” or “cool down” product—but rather to maintain an item’s proper temperature for maximum shelf life. -
Page 13: Light Fixtures
CLEANING Hussmann recommends using a clean damp chamois, or a paper towel marked as dust and abrasive free with ® Plastic Cleaner and Polish available by calling Sumner Labs at 1-800-542-8656. -
Page 14: Maintenance
TOWARD THE MOTOR. COPPER COILS The copper coils used in Hussmann merchandisers may be repaired in the field. Materials are available from local refrigeration wholesalers. Hussmann recommends using #15 Sil-Fos for repairs. - Page 15 INSTALLING GLASS SWEEP (WHERE APPLI- CABLE) PARTS LIST • Silicone 1200 (or comparable) • Masking tap (not supplied) INSTRUCTIONS 1. Cut a strip of the glass sweep material to the proper length. 2. Open glass wide enough to apply a few small drips of #1200 silicone down the edge of one side of the glass.
-
Page 16: Appendices
1.1 The installer is responsible for following the installa- tion instructions and recommendations provided by Appendices Hussmann for the installation of each individual type refrigerator. 1.2 Refrigeration piping should be sized according to Hussmann’s equipment recommendations and installed in accordance with normal refrigeration practices. -
Page 17: Appendix D. - Recommendations To User
1.2 Load levels as defined by Hussmann must be observed. 1.3 The best preservation is achieved by following these rules: Buy quality products. - Page 18 IGSV-VTB, VSG-0309 processing area except for the few moments it is being handled in processing. When a cut or tray of meat is not to be worked on immediately, the procedure should call for returning it to refrigera- tion. Keep tools clean and sanitized. Since mechanical...
-
Page 19: Limited Warranty
On Hussmann refrigeration systems, an additional (4) year extended warranty for the motor/compressor assem- bly is available, but must be purchased prior to shipment to be in effect. Hussmann reserves the right to inspect the job site, installation and reason for failure. - Page 20 IGSV-VTB, VSG-0309 Service Record Last service date: Additional copies of this publication may be obtained by contacting: ® Hussmann Chino 13770 Ramona Avenue • Chino, California 91710 (909) 628-8942 FAX (909) 590-4910 (800) 395-9229 /Chino The MODEL NAME and SERIAL NUMBER is required in order to provide you with the correct parts and information for your particular unit.
