Hussmann impact C4LE Technical Data Sheet

Hussmann impact C4LE Technical Data Sheet

Hussmann c4-le: data sheet
Hide thumbs Also See for impact C4LE:
1
2
3
4
5
6

Advertisement

Table of Contents

We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
Item Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS

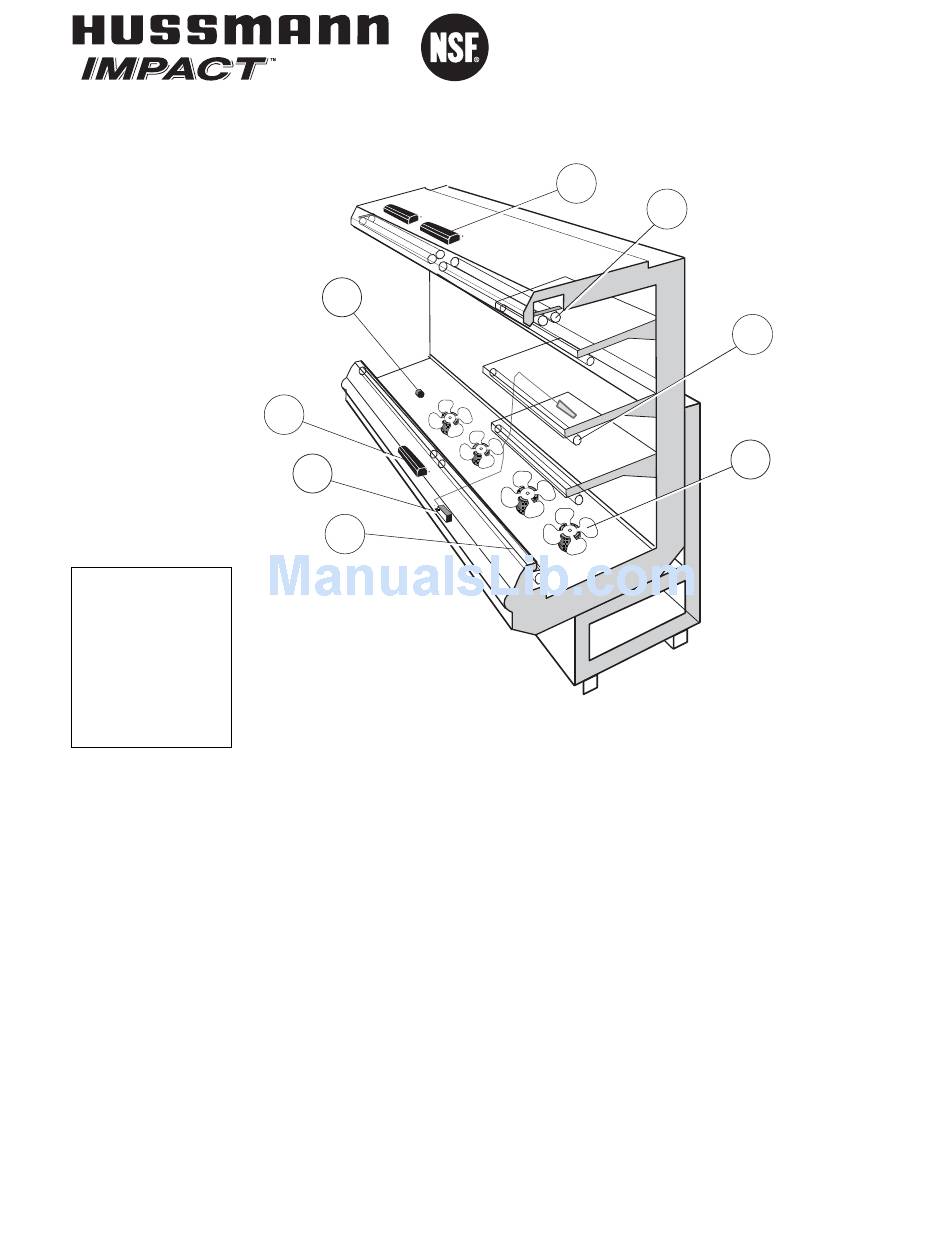

A. 9W Fan Assembly
0047000
Fan Motor, Evaporator
(MO.4410103)
0380485
Fan Blade (FB.0380485)
embossing toward motor
B. 0411744
Standard Non-adjustable
Defrost Thermostat (CT.0411744)
C. 0137880
Optional Adjustable
Refrigeration Thermostat
(CT.4481084)
Note:
Revision C updates measurements on Pages 2 and 3 and adds Aftermarket Part Numbers on Page 1.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
B
D
C
E
Wiring Item #
D
Item Part #
L
B
AMPS AND
ALLASTS
D. Ballast, Electronic
(1)
0428648
0428649
E.
(2)
(3)
C4LE
Technical Data Sheet
P/N 0407950_C
NSF
®
September 2007
E
E
A
Description
Wiring Item #
2 lamps (BA.4480823)
3 lamps (BA.0428649)
Fluorescent Lamp
Replace with like fixtures
P/N 0407950_C
Certified
(4)
(5)
