Item
Part #
Description
F
A
,
T
AN
SSEMBLIES
AND
HERMOSTATS
A.

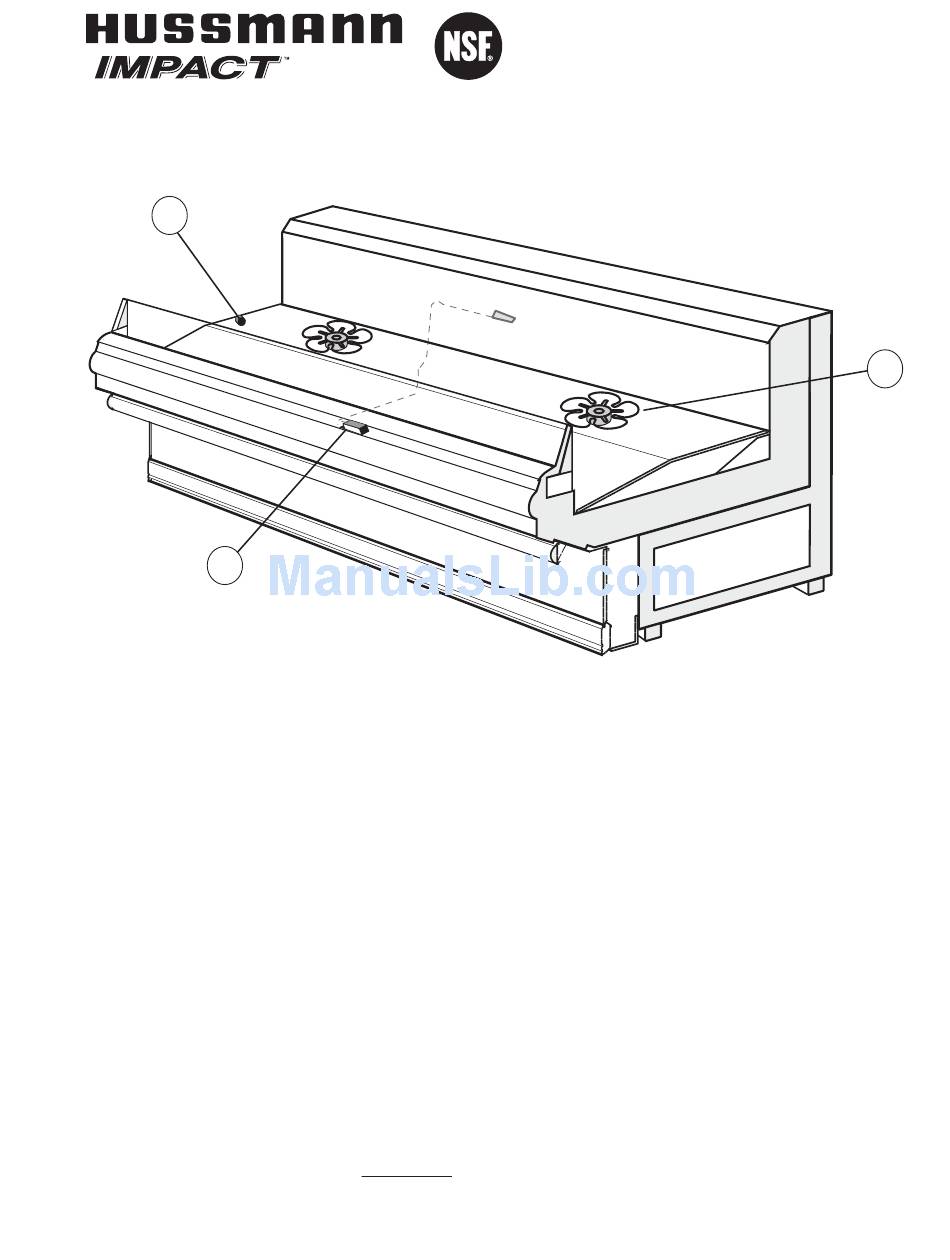

6W Fan Assembly
0058698
Fan Motor, Evaporator
0382383
Fan Blade
embossing toward motor
B.
0382028
Standard Non-adjustable
Thermostat
C.
0137880
Optional Adjustable
Refrigeration Thermostat
Note: Changed items have been underlined.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
®
Merchandisers
Wiring Item #
(1)
(2)
(3)
Item
Part #
Description
L
B
AMPS AND
ALLASTS
None
M1GE
Data Sheet Set
P/N 0378416D
NSF
®
Certified
February 2005
A
Wiring Item #
P/N 0378416D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hussmann Impact M1GE
Summary of Contents for Hussmann Impact M1GE
- Page 1 Fan Blade embossing toward motor 0382028 Standard Non-adjustable Thermostat 0137880 Optional Adjustable Refrigeration Thermostat Note: Changed items have been underlined. HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. ® Wiring Item # Item Part # AMPS AND ALLASTS None M1GE Data Sheet Set P/N 0378416D ®...
- Page 2 *Note: Water seal outlet must clear front skid rail. Refrigeration Outlet Right end of case to center of refrigeration outlet Back outside of case to center of refrigeration outlet 2 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. Dimensions shown as inches and (mm). (699) (775) (1032)
- Page 3 (950) (648) (441) (102) (102) NSF Certification These merchandisers are manufactured to meet ANSI /National Sanitation Foundation (NSF ® ) Standard #7 requirements. P/N 0378416D HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. (766) (424) (699) (748) (897) (1180) Impact Meat/Delicatessen Precut & Packaged Produce...
-
Page 4: Electrical Data
Offtime Defrost 120V P OWER ROWN All components must have mechanical ground, and the merchandiser must be grounded. IRCLED NUMBERS 4 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 4 ft 8 ft Amperes 4 ft 8 ft 0.50 1.00 0.28...
