Hussmann Impact M1LGE Technical Data Sheet

Hussmann Impact M1LGE Technical Data Sheet

Frozen meat/delicatessen
Hide thumbs Also See for Impact M1LGE:
1
2
3
4
5
6

Advertisement

Quick Links

We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item
Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS

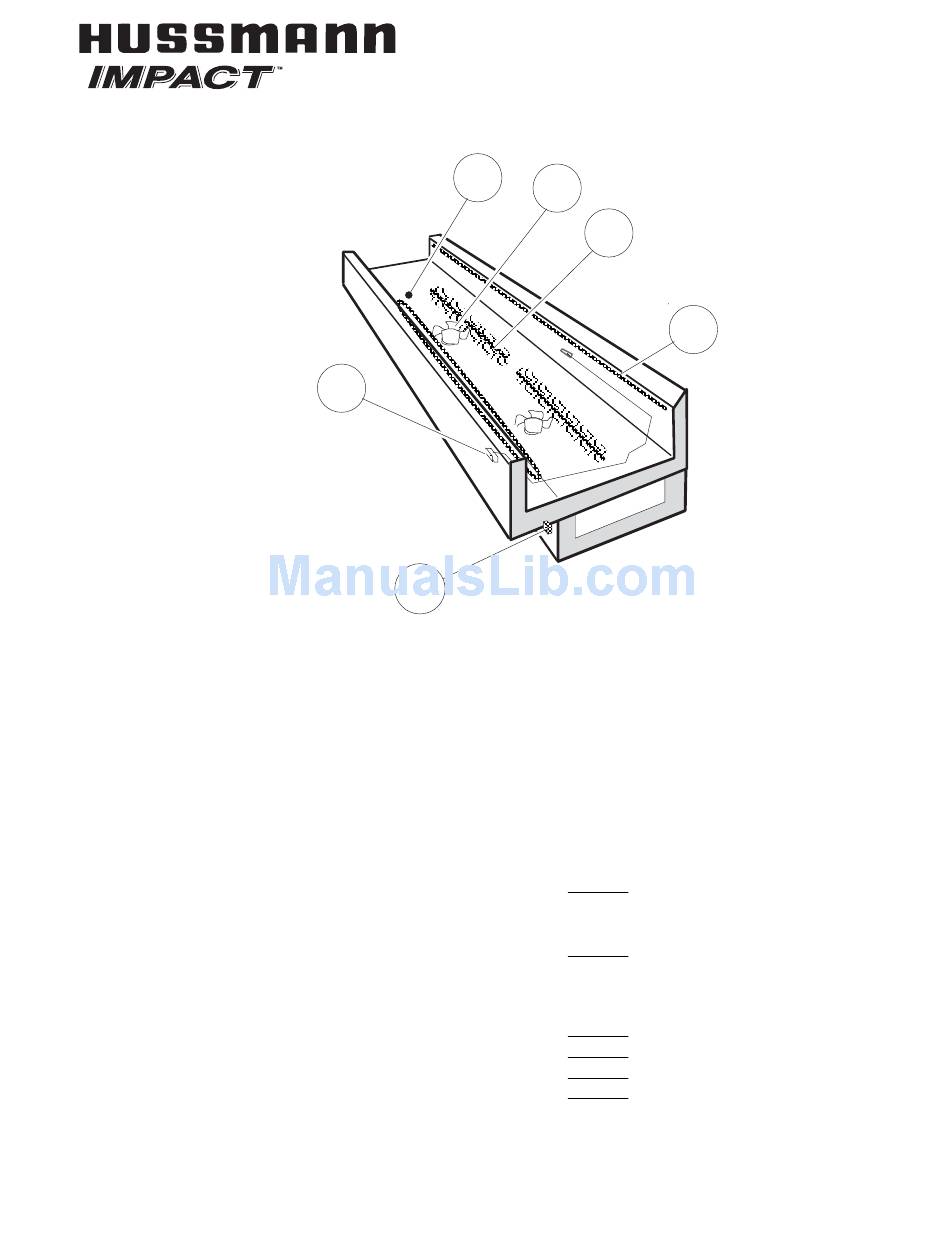

A. 9W Fan Assembly
0302555
Fan Motor
(MO.0302555)
0376413
Fan Blade
embossing toward motor
8 Inch, 10°, CW (FB.0376413)
B. Optional Adjustable Refrigeration Thermostat,
C. 0398557
Defrost Termination
Thermostat
Disc type 48 Deg F (CT.4440611)
Note: Revision A adds 4 and 6 foot data and updates heater part numbers on Page 1.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
B
D
Wiring Item #
C
A
E
Item
Part #
R
ELAYS
D. 0123592
1
0253603
H
EATERS
E. 0487482
2
0495023
3
F. Rear Rail Heaters
0415540
0494977
0494983
0494984
M1LGE
Technical Data Sheet
P/N 0399262_A
NSF
®
Certified
July 2007
F
Description
Wiring Item #
Relay, DPDT 208V coil
(RL.4440495)
Relay, DPDT 120V coil
(RL.4440267)
Modular Electric
Defrost Heaters, 208V, 685W
(HE.4481533)
6 Ft Modular Electric Defrost
Heaters, 208V, 685W (HE.4850742)
4 foot case (HE.4850482)
6 foot case (HE.4850716)
8 foot case (HE.4850719)
12 foot case (HE.4850720)
P/N 0399262_A
4
4
5
6
