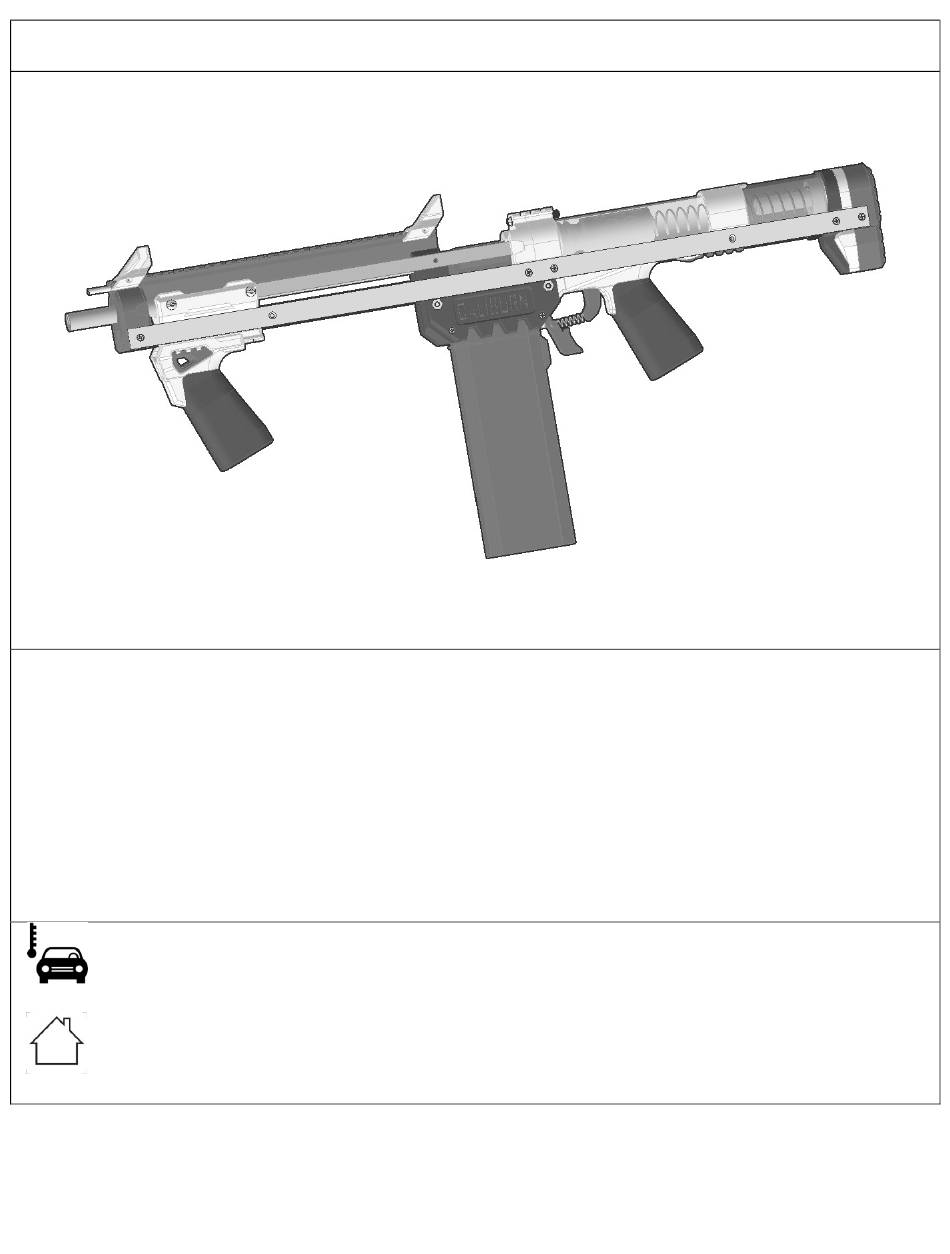

CALIBURN U ASSEMBLY INSTRUCTIONS

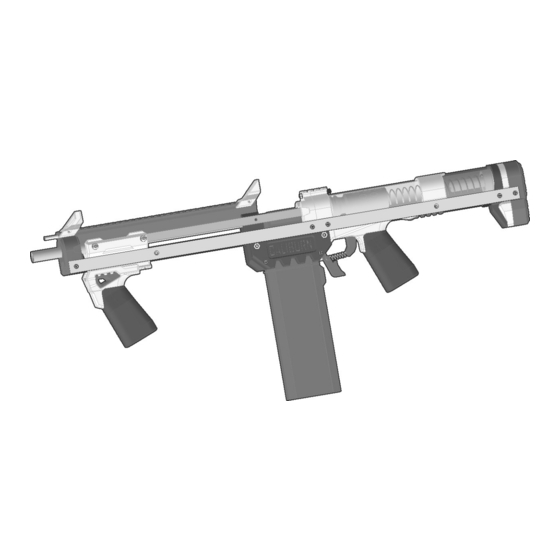

The Caliburn U is a Mag-Fed Pump-Action Homemade Nerf Blaster design released as a CC-NC license file set by Captain
You are welcome to and encouraged to modify the files in any way you want. The Majority of the parts can be printed
with infill as low as 20% in PLA, but I would recommend printing in layers of 300 Micron or smaller. I would recommend
Hardware kits and Full Blasters are available for sale as made-to-order items. I'm producing these myself in what
DO NOT STORE IN TEMPERATURES ABOVE 100F. Storing the blaster inside of a car in warmer months will
cause the printed parts to distort or warp beyond their intended shape. If you have to store one in a vehicle,
DO NOT use this blaster for indoor wars or wars involving very short distances. The muzzle velocities this
design can reach are between 150fps and 210fps depending upon the darts used and the spring installed. If
indoor use is intended, obtain the lower fps springs that are currently available for this design (K31 and 788)
Slug (http://www.captainslug.com).
a minimum of 1.5mm walls/perimeters for every part.
remains of my free time.
https://www.etsy.com/shop/CaptainSlug
store it in the trunk.
and use them.
