MAHLE Industrialfiltration is now Filtration Group. For more information, visit www.FiltrationGroup.com

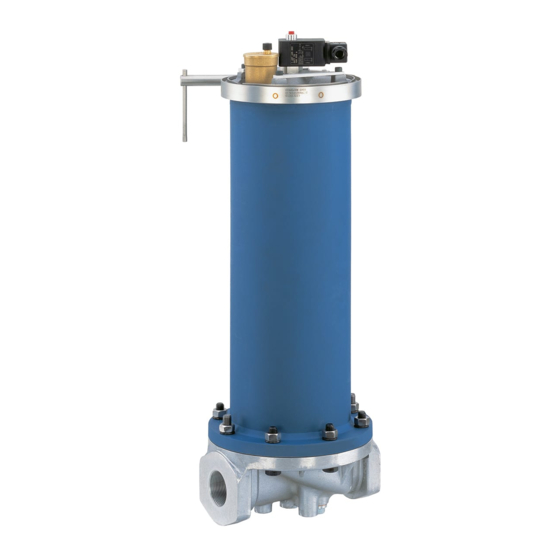

Low Pressure Filter
Pi 150
Nominal pressure 10/25 bar (140/360 psi), nominal size up to 630
1. Features
.
High performance filters for modern hydraulic systems
_
Provided for pipe installation
Modular system
Compact design
Minimal pressure drop through optimal flow design
Visual/electrical/electronic maintenance indicator
Threaded connections
Quality filters, easy to service
Equipped with highly efficient glass fibre PS filter elements
Beta rated elements according to ISO 16889 multipass test
Elements with high differential pressure stability and dirt holding
capacity
Worldwide distribution
