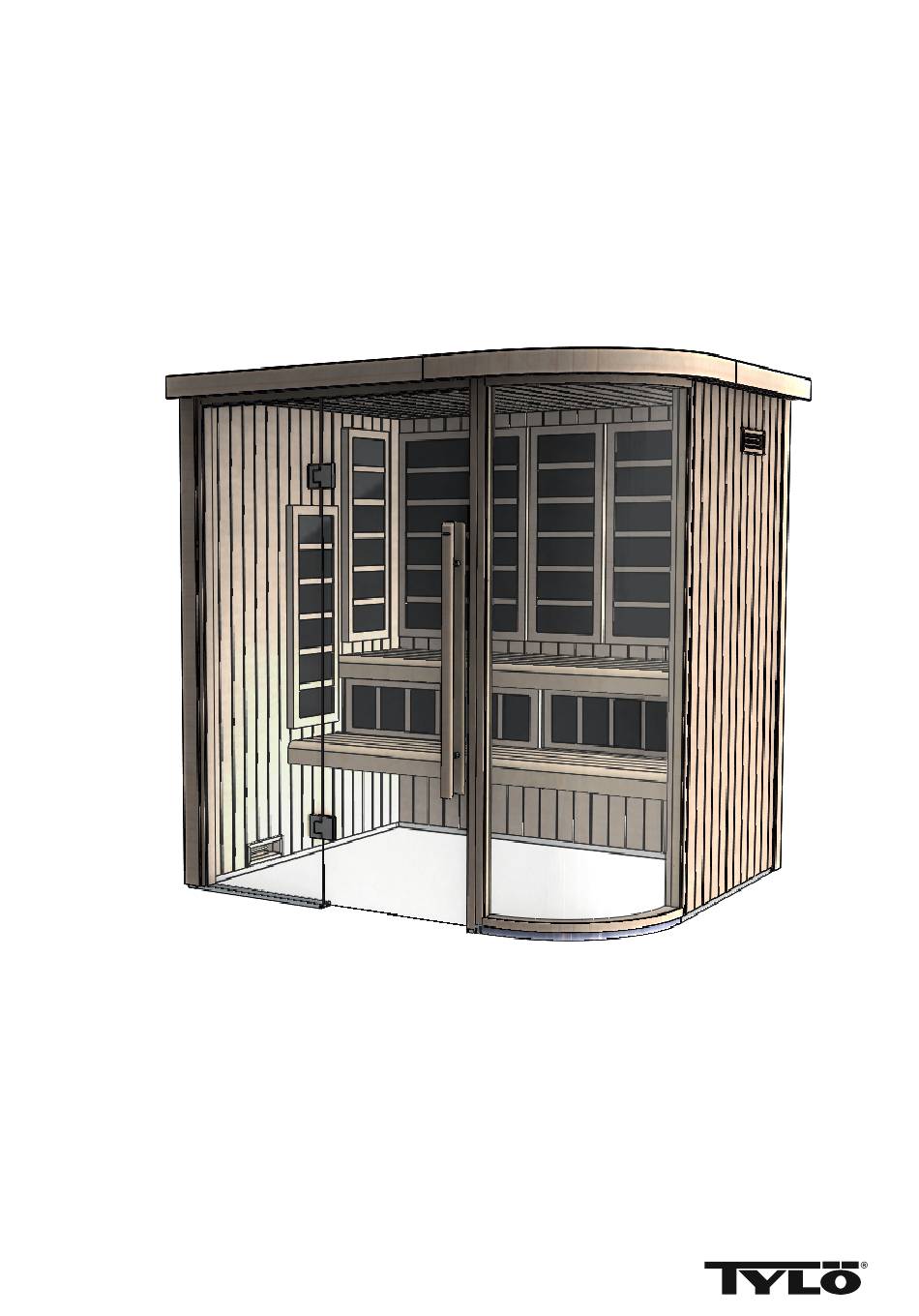

- Page 1 2022-04-27 INFRA PANEL 980x680 / 980x360 / 980x280 Art.nr 2900 0265...
- Page 2 WARNING! Ÿ The heater must be connected by a qualified electrician pursuant to applicable regulations! Ÿ Always check that the heater is connected to the correct main/phase voltage! Ÿ Anyone with a mental or physical disability or little experience or knowledge of how to use the equipment (e.g.
- Page 3 Dimensions 300W 150W 100W 230V 230V 230V Cable - 2 metre, max. 200°C 680mm 360mm 280mm 37mm Product combinations for Infra Sauna heater Sense Commercial/ Control panel Sauna heater Infra Control panel Infra Control panel Infra Expression Elite Sense Elite Elite Elite (Max.

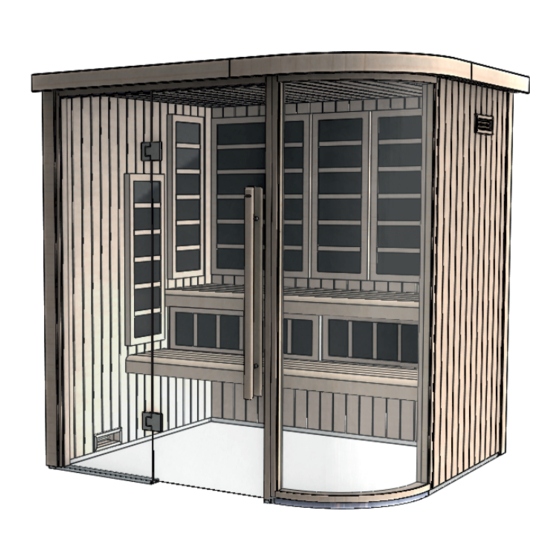

- Page 4 Example of placement of Infra panels in sauna room Harmony Outside dimension (sauna room flex size) Inside dimension (sauna room) Back wall Outside Inside Back wall - Infra panels Side wall - Infra panels Under bench - Infra panels X (mm) Distance dimensions (mm) dimensions between panels...
- Page 5 Don’t place the infra panels over or to close to the sauna heater! Min. 300mm Make sure that the outlet vent does not end up behind the infra panel. Preferably place the outlet vent in the ceiling.
- Page 6 Open the Infra panel Open the panel with a ”shake” Push the front upwards Measure and mark where the panels will be mounted ! Keep in mind that the front should fit Min. 35mm...
- Page 7 Drill holes through the wall/ceiling for the cables. Pull the cables through the holes. ~40mm Ø 10 Ceiling Ceiling Wall Infra panel ALT. 1 Wall Infra panel Ceiling Ceiling Wall ALT. 2 Infra panel Wall Infra panel Mount the Infra...
- Page 8 Optional: Mounting kit for one infra panel (Sold separately, art.no 9001 1307) Upper bracket B6x16mm B8x22mm 1/4" Lower bracket Placement of benches (Benches - Classic/Classic Slim) 28mm 240mm 400mm Mount the brackets on the back side of the infra panel B6x16mm X≈100mm...
- Page 9 Mount the upper brackets on the upper bench B8x22mm Mount the lower brackets on the lower bench B8x22mm Example - two infra panels under the bench Tip how to fill eventual gaps...
- Page 10 Combination: Sauna heater Sense Elite and Infra panels Connection diagram - Sauna heater Sense Elite and Infra panels Infra Infra Infra Infra Sauna heater Elite B B I I INFRA Max. 2.2kW Sauna heater Elite Connection B B I I 1.5mm Glöm inte att jorda! Erdung nicht...
- Page 11 Combination: Relay box Commercial Lite and Infra panels Connection diagram - Relay box Commercial Lite and Infra panels Infra Infra Infra Infra RB Commercial Lite I I I 1 2 3 4 INFRA Max. 2.3kW 200- 240 V~ RB Commercial Lite Connection I I I 1 2 3 4...
- Page 12 User manual Infra - control panel Elite How to enable operation. 1. Go to configure menu - IR 3. Go to settings – Now settings for (Scale 0-10) are shown. ready to use. 4 min 20 sek 2. Press Enable 1 min 52 sek 2 min 28 sek 2 min 09 sek...
- Page 13 Function of Info! Ÿ panel is heating then max 2 output (effect) in the sauna heater can be active at the same time. This means that the sauna heater does not operate at full power, while the IR heats. This is normal and nothing wrong. When the panel is in pause mode, full power is allowed on the sauna heater, if required.
- Page 14 Info! The set scale is displayed only on home screen when temperature is set between 40>60°C. So when you see scale, you know that IR is in operation and heating according to set scale. If Set scale not displayed, you know that is completely shut off.
