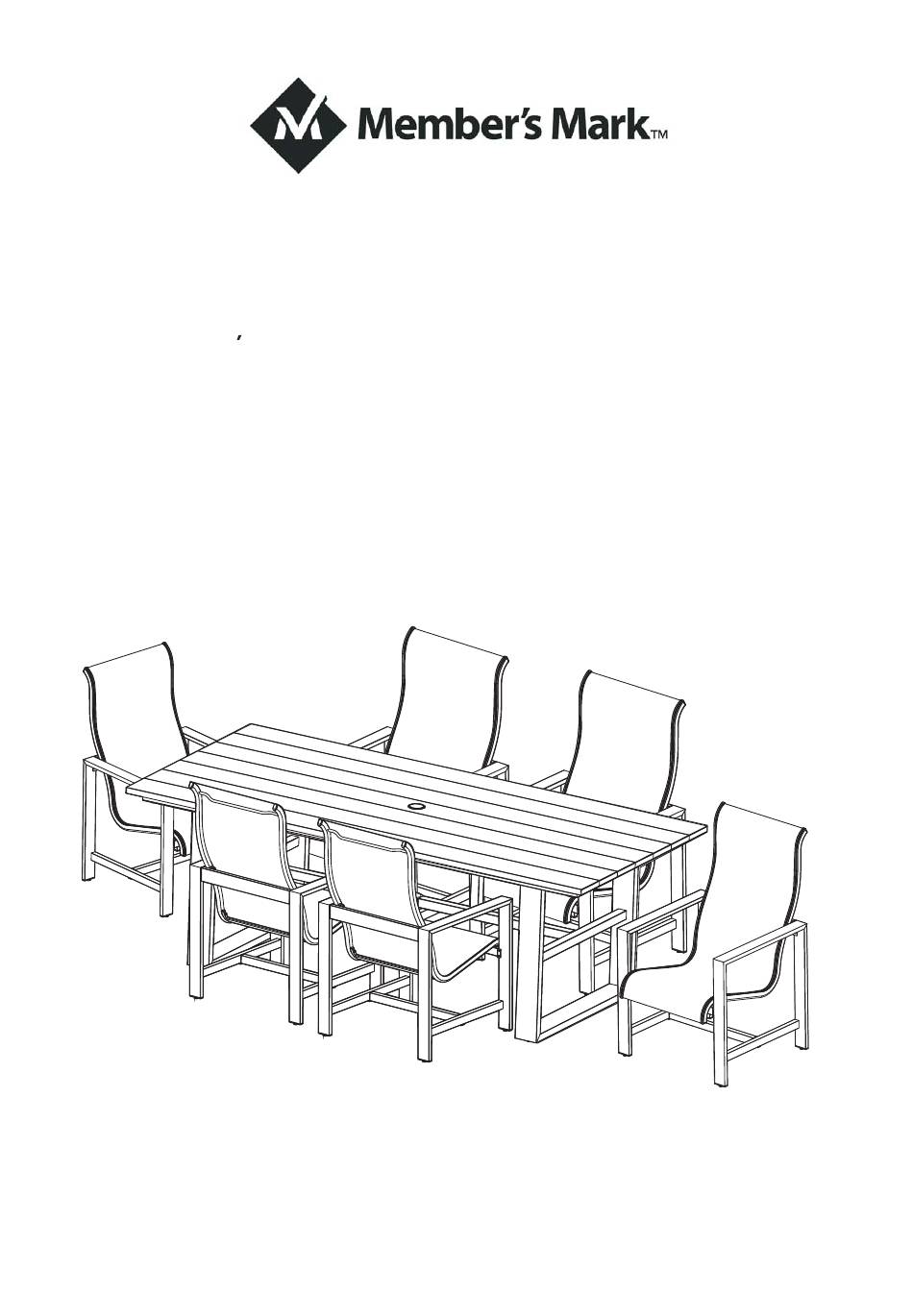

Assembly Instructions & User's Manual
for
Members Mark Avondale 7pc Sling Dining Set
Item Number:
Model Number: ADW00600-7HC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Avondale ADW00600-7HC
Summary of Contents for Member's Mark Avondale ADW00600-7HC
- Page 1 Assembly Instructions & User's Manual Members Mark Avondale 7pc Sling Dining Set Item Number: Model Number: ADW00600-7HC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Page 1 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Dining Chair Components...............6 Hardware..............6 Tools................6 Step1-Step4............7-8 Dining Table Components..............9 Hardware..............9 Tools................9 Step1-Step4............10-11 Care & Use and Storage Instructions........12 Warranty Information............12 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 3Ctn Box 1 of 3： Component Description Quantity Dining Chair Furniture Cover Box 2 of 3： Component Description Quantity Leg Connector Bracket Table Leg Box 3 of 3： Component Description Quantity Table Top Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Weight Factory Description Part No. Dimensions Capacity Assembly ADW00600 Dining Chair 250lb per seat 25.5" W *29.75" D *42.25" H A.Foot Cap FC0607 Weight Factory Description Part No. Dimensions Capacity Assembly Table ALW05530 38.25" W *83.75" D *28.75" H A.Foot Cap FC0613 Description... -
Page 6: Components
Components CHAIR FRAME LEFT ARM C. RIGH T ARM Part No.AN0806 Part No. AN0807 Part No. AN0808 Qty 1 Qty 1 Qty 1 D SUPPORT BAR Part No. AN0809 Qty 1 Hardware (H1) (H2) 1/4" X 20 MM BOLT Ø6 .5 X 1.0 MM WASHER PART NO:HW0802 PART NO:... -
Page 7: Step1-Step4
Step 1 - Step 4 Step 1 (H1) (H2) 1/4" X 20 MM BOLT Ø6.5 X 1.0 MM WASHER Qty: 8 Qty: 8 If you have difficulty to line up the holes between chair frame and both arms, please loosen the bolts of crossbars under the chair frame by 2-3 turns. - Page 8 Step 3 (H3) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 8 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 9: Components
Components TABLE TOP LEG CONNECTOR BRACKET TABLE LEG Part No. AT73380 Part No. AT73382 Part No. AT73381 Qty 1 Qty 1 Qty 2 Hardware (H1) (H2) (H3) 1/4" X 20 MM BOLT 1/4" X 45 MM BOLT Ø6.5 X 1.0 MM WASHER PART NO:HW0802 PART NO:HW0805 PART NO:HW0004... -
Page 10: Step1-Step4
Step 1 - Step 4 Step 1 (H2) (H4) 1/4" X 45 MM BOLT Ø20 X Ø6.5 X 2.0 MM Qty: 4 WASHER Qty: Hand tighten only 2-3 turns. Step 2 (H1) (H3) 1/4" X 20 MM BOLT Ø6.5 X 1.0 MM WASHER Qty: 6 Qty: Hand tighten only 2-3 turns. - Page 11 Step 3 (H6) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 11 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 12: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 13 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 13 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
