PIR Occupancy Sensor Switch
(DC Power Supply)
Model #：
BRT-319
Features:
BRT-319 is an occupancy sensor switch which utilizes passive infrared (PIR) sensor to detect the
heat (in the form of infrared energy) from people moving within a space. It can determine when a
space is occupied and turns on or turns off the loads automatically. It is designed for easy
installation and retrofit, powered by 12V DC.
Adjustable delay-off time from 10 seconds to 15 minutes;
Ambient light override. Automatically measures the ambient light level, and there is no
trigger on above a light level adjustable by users;
Good for 12V DC loads;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.

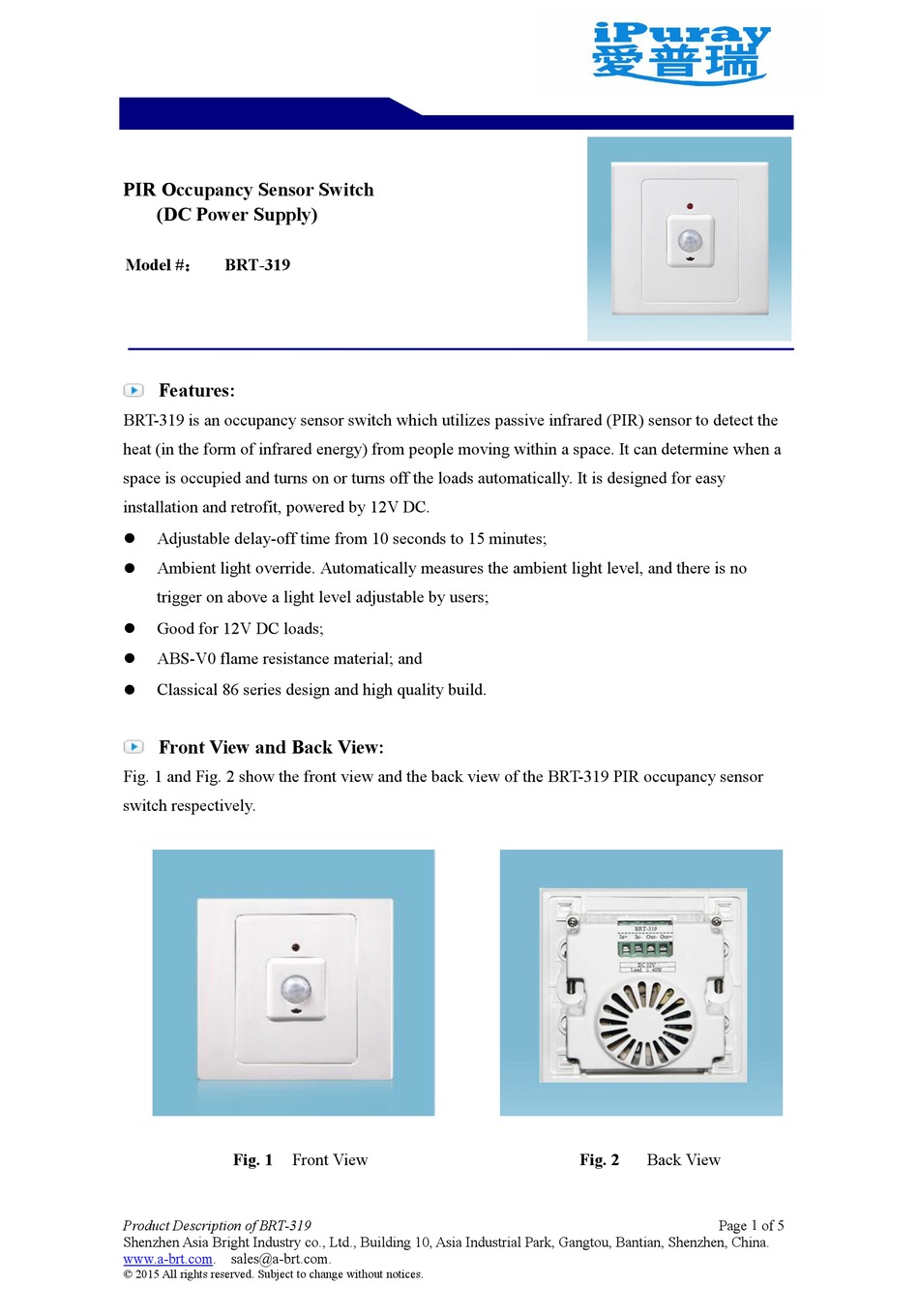

Front View and Back View:
Fig. 1 and Fig. 2 show the front view and the back view of the BRT-319 PIR occupancy sensor
switch respectively.
Fig. 1
Front View
Product Description of BRT-319
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2
Back View
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for iPuray BRT-319
Summary of Contents for iPuray BRT-319
- Page 1 ABS-V0 flame resistance material; and Classical 86 series design and high quality build. Front View and Back View: Fig. 1 and Fig. 2 show the front view and the back view of the BRT-319 PIR occupancy sensor switch respectively. Fig. 1 Front View Fig.
- Page 2 Spacing Dimension 86mm x 86mm x 43mm Weight Wiring Diagram and Installation Guide: BRT-319 occupancy sensor switch is powered by 12V DC supply: In+: Coming from the positive of power supply; In-: Coming from the negative of power supply; and Load wires: Going to the load.
- Page 3 BRT-319 Operation Guide: BRT-319 PIR sensor switch needs a warm-up time about two minutes before it can operate properly. It has a precision tuning screw to adjust the ambient light override threshold as shown in Fib.
- Page 4 Fig. 7 Adjustment of Delay-off Time Applications: BRT-319 PIR occupancy sensor can be can be used for automatically turning on and/or turning off various loads such as lights, fans, appliances, or other kinds of electrical equipment. Product Description of BRT-319 Page 4 of 5 Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
- Page 5 BRT-319 PIR occupancy sensor switch is perfect for saving energy and bringing convenience and safety to our daily life and work. It has wide applications at various locations such as stairwells, corridors, washrooms, offices, conference rooms in homes, schools, laboratories, hospitals, offices, etc., especially useful where AC power supply is not available.
