Please pay attention to the dome camera direction when you are installing. Please refer to the
following figure for detailed information. See Figure 3-2.
3.2 Installation Steps for Plastic Dome
Please follow the steps listed below to install the device. Please refer to Figure 3-4 for reference.

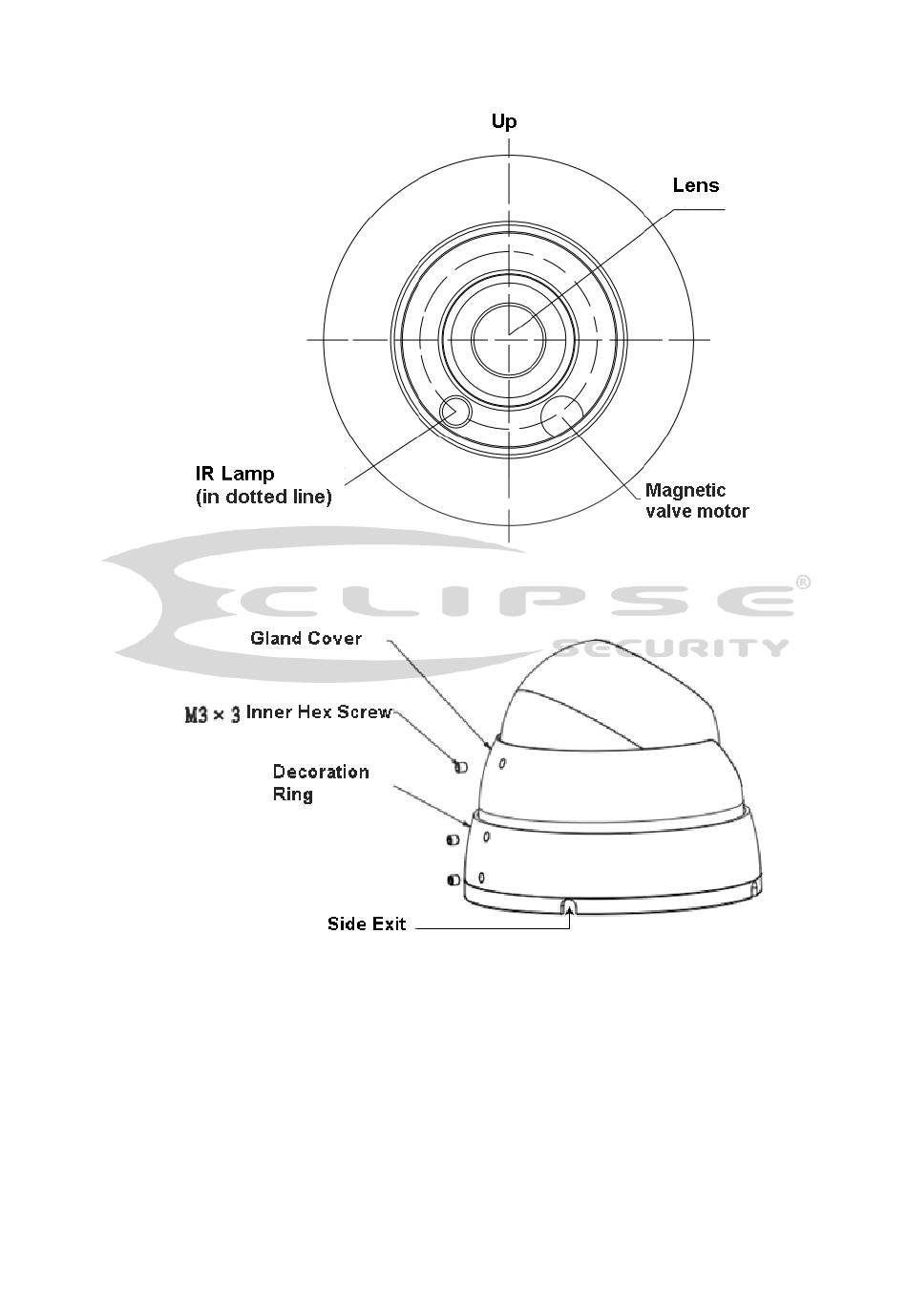

Figure 3-2 Device installation illustration 2
Figure 3-3 Device installation illustration 3
15
