Model ESFR-17
Early Suppression, Fast Response Upright Sprinklers
16.8 K-Factor
General
Description

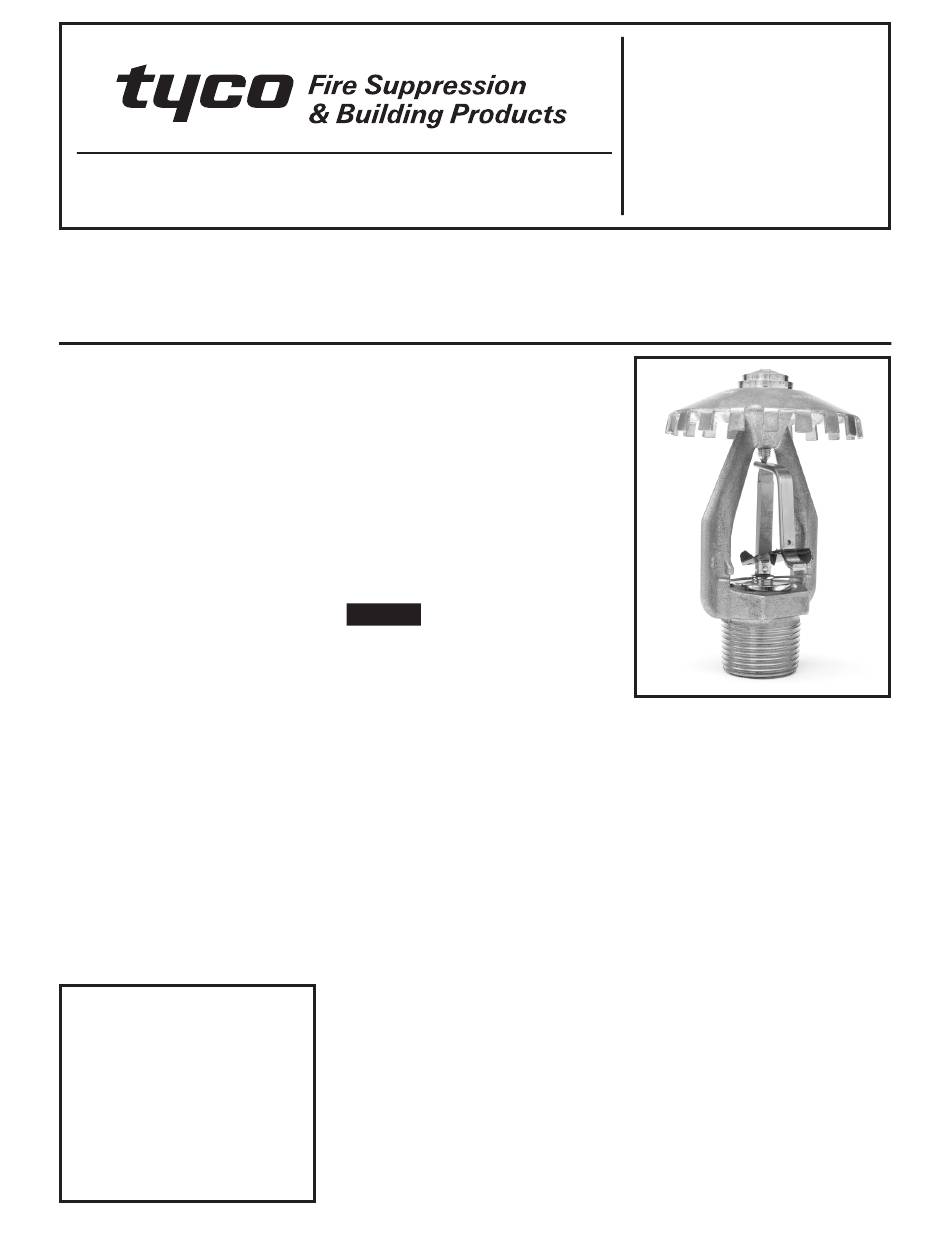

The TYCO Model ESFR-17 Upright
Sprinklers are "Early Suppression,
Fast Response Sprinklers" having a
nominal K-Factor of 16.8 (Figure 1).
They are suppression mode sprinklers
that are especially advantageous as a
means of eliminating in-rack sprinklers
when protecting high-piled storage.
Model ESFR-17 Sprinklers
primarily used for ceiling-only sprin-
kler protection of (but not limited to)
the following storage applications:
• Most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics.
• Cartoned, expanded plastics.
• Some storage arrangements of rub-
ber tires and roll paper.
For more specific criteria, refer to
Table 1 in this data sheet as well as
the applicable design standard.
The Model ESFR-17 Upright Sprin-
klers provide the system designer with
an upright option to the traditional
pendent ESFR Sprinklers. With a K-
Factor of 16.8, Model ESFR-17 Sprin-
klers provide system designers with
hydraulic and sprinkler placement
options not presently available to
traditional ESFR Sprinklers having
a K-Factor of 14.0. In particular, the
Model ESFR-17 Upright Sprinklers are
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cau-
tions with respect to handling
and installation of sprinkler sys-
tems and components. Improp-
er handling and installation can
permanently damage
kler system or its components
and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
designed to operate at substantially
lower-end head pressures compared
to ESFR Sprinklers with 14.0 K-Fac-
tors. This feature offers flexibility when
sizing system piping and positioning
the system piping with respect to the
ceiling.
Applications for the TYCO ESFR
Sprinklers are expanding beyond cur-
rently recognized installation stan-
dards. For information on research
fire tests that may be acceptable to an
Authority Having Jurisdiction, contact
are
the Technical Services department.
NOTICE
The Model ESFR-17 Upright Sprinklers
described herein must be installed
and maintained in compliance with
this document, as well as with the ap-
plicable standards of the National Fire
Protection Association, in addition to
the standards of any authorities having
jurisdiction (for example, FM Global).
Failure to do so may impair the perfor-
mance of these devices.
Owners are responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
In all cases, the appropriate NFPA or
FM installation standard must be ref-
erenced to ensure applicability and
to obtain complete installation guide-
lines. The general guidelines in this
data sheet are not intended to provide
complete installation criteria.
Model/Sprinkler
Identification
Number (SIN)
a sprin-
TY7126 - Upright K=16.8
MARCH, 2011
Technical
Data
Approvals
FM Approved
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connections
3/4 inch NPT
ISO 7-R3/4
Discharge Coefficient
K = 16.8 GPM/psi 1/2
(241,9 LPM/bar 1/2 )
Temperature Ratings
165°F (74°C)
214°F (101°C)
Finish
Natural Brass
TFP316
