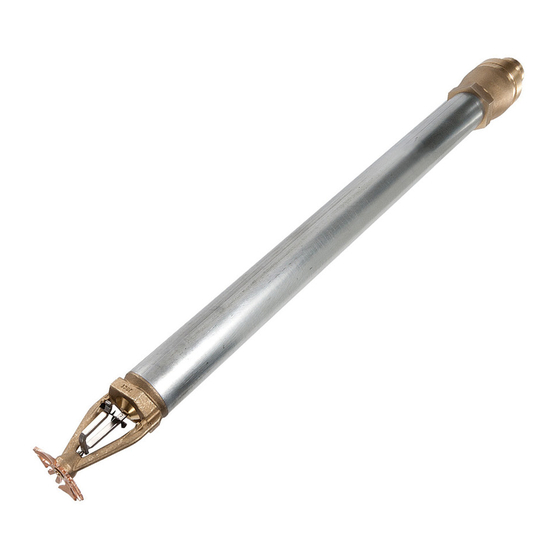

Model ESFR-17
Early Suppression Fast Response Upright Sprinklers
16.8 K-factor
General
Description

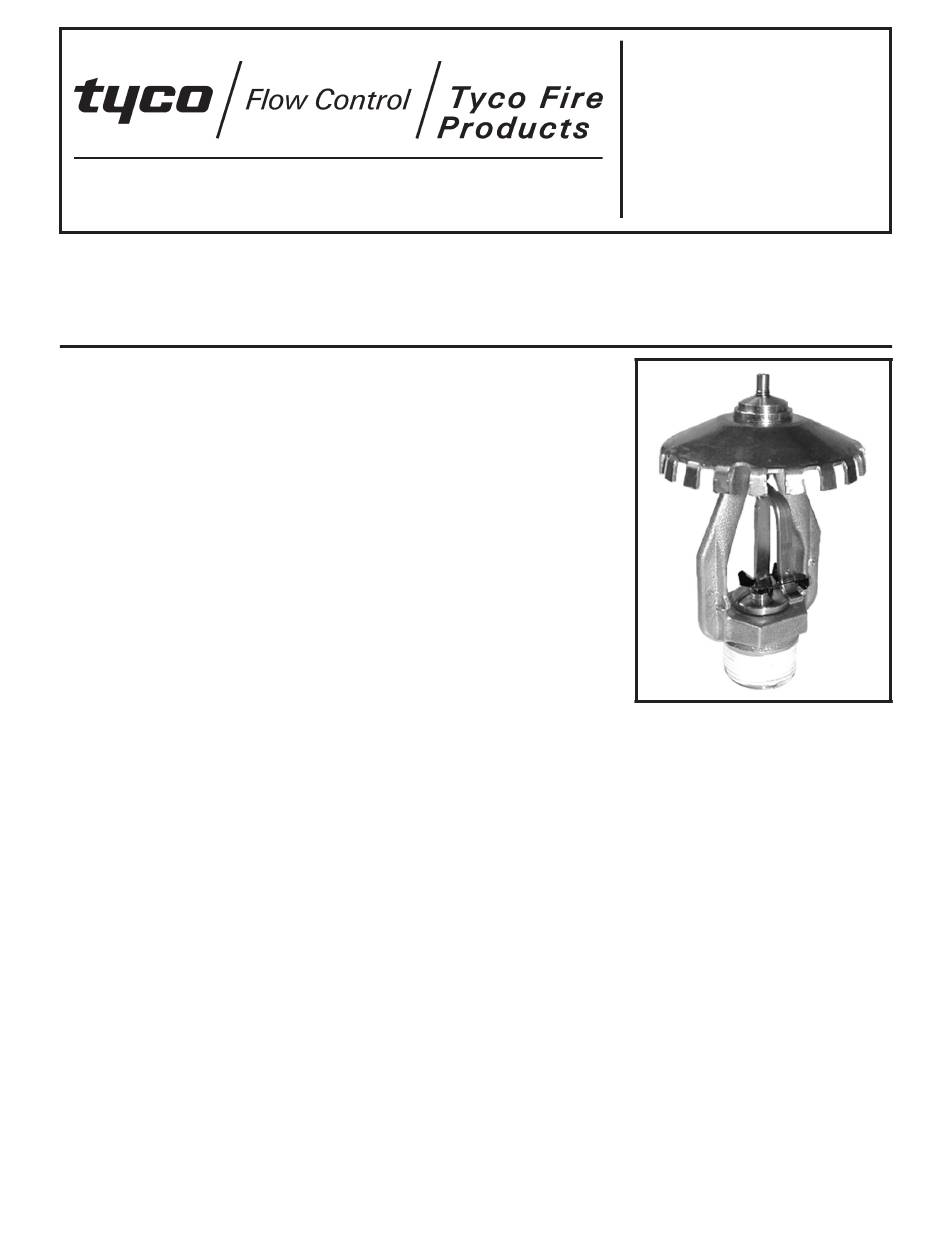

The Model ESFR-17 Upright Sprin-
klers (Ref. Figure 1) are "Early Sup-
pression Fast Response Sprinklers"
having a nominal K-factor of 16.8. They
are suppression mode sprinklers, and
they are especially advantageous as a
means of eliminating in-rack sprin-
klers, when protecting rack storage.
The Model ESFR-17 is primarily de-
signed for use in ceiling only sprinkler
systems (i.e. no in-rack sprinklers) for
the protection of storage heights of
most encapsulated or non-encapsu-
lated common materials including car-
toned unexpanded plastics of up to 30
ft. (9,1 m) with ceiling heights to 35 ft.
(10,7 m), as well as cartoned ex-
panded plastics up to 25 ft. (7,6 m) with
ceiling heights to 30 ft.(9,1 m). In addi-
tion, the protection of some storage
arrangements of roll paper and rubber
tires can be considered.
The ESFR-17 Upright Sprinklers pro-
vide the system designer with an up-
right option over the traditional pen-
dent type ESFR sprinklers. The
offering of a 16.8 K-factor optimizes
hydraulic design when considering up-
right ESFR sprinklers. These features
offer flexibility when sizing the system
piping, as well as positioning the sys-
tem piping with respect to the ceiling.
WARNINGS
The Model ESFR-17 Upright Sprin-
klers described herein must be in-
stalled and maintained in compliance
with this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction (e.g., FM
Global). Failure to do so may impair
the integrity of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
Page 1 of 4
The installing contractor or sprinkler
manufacturer should be contacted
relative to any questions.
Sprinkler
Identification
Numbers
SIN TY7126 - (Upright K=16.8)
Technical
Data
Approvals
FM Approved.
(Refer to the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT or ISO 7-R3/4
Discharge Coefficient
1/2
K = 16.8 GPM/psi
1/2
(241,9 LPM/bar )
Temperature Ratings
165°F/74°C or 214°F/101°C
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . Bronze
Deflector . . . . . . . . . . .
Compression Screw . . . . . . . . .
. . . . . . . . . . . . Stainless Steel
Hook . . . . . . . . . . . . . . Monel
Strut . . . . . . . . . . . . . . Monel
Link Assembly . . . . Solder, Nickel
Button . . . . . . . . . . . . . Brass
Sealing Assembly . . . . . . . . . . .
. . . . . . Beryllium Nickel w/Teflon*
Ejection Spring . . . . . . . . Inconel
Deflector Nut . . . . . . . . . Brass
MAY, 2002
Patents
U.S.A. Patent
and 5,829,532 may be applicable to
the Model ESFR-17 Upright Sprinkler.
Other patents are pending.
Operation
The fusible link assembly is comprised
of two link halves that are joined to-
gether by a thin layer of solder. When
the rated temperature is reached, the
Copper
solder melts and the two link halves
separate activating the sprinkler and
allowing water to flow.
Numbers 4,580,729
TFP316
