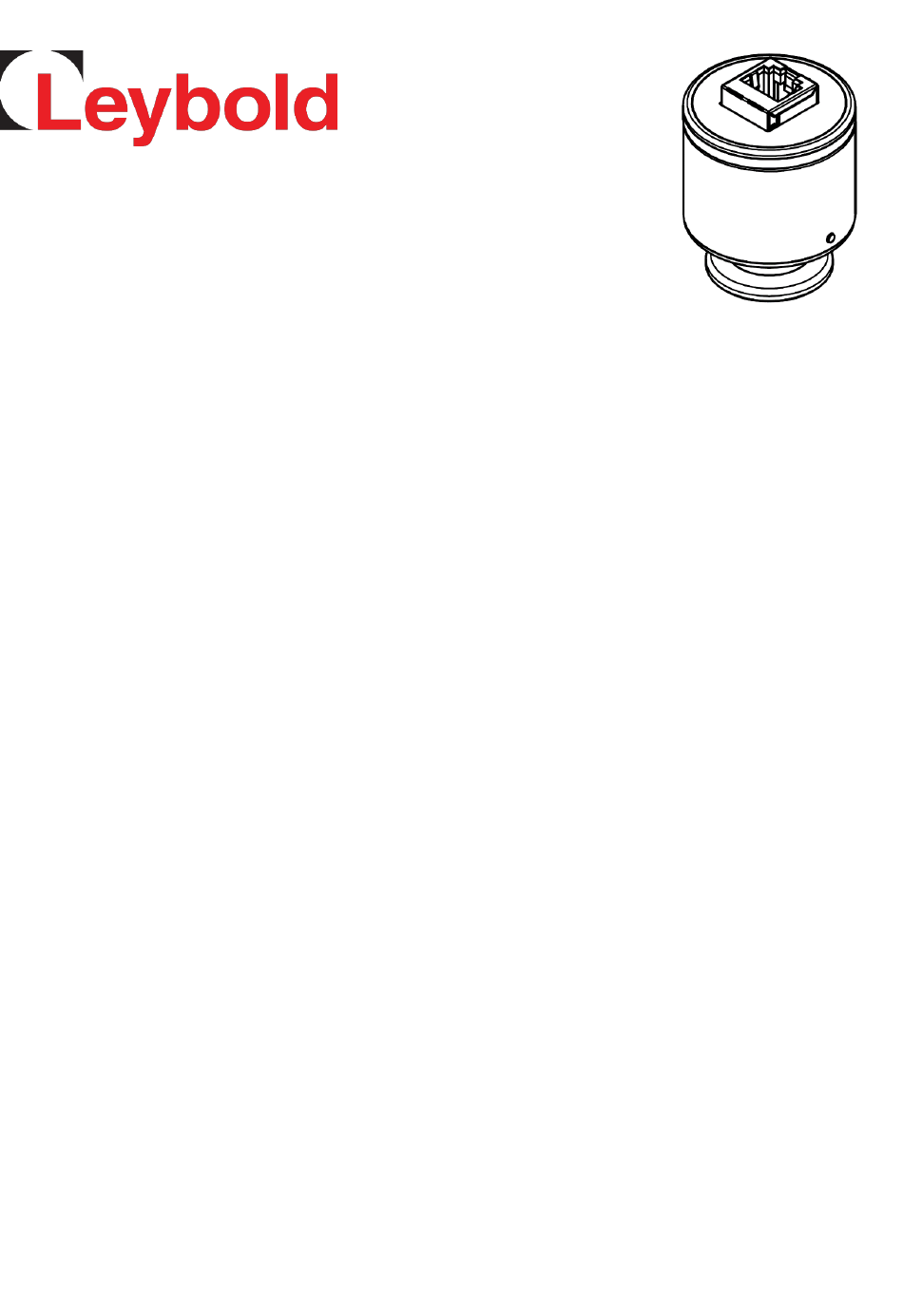

- Page 1 THERMOVAC Transmitter TTR 91 N, TTR 91 N S, TTR 96 N S and TTR 96 N SC Operating Manual 300544652_002_C1 Part Numbers: 230035V02 230036V02 230037V02 230038V02 230040V02 230043V02 230045V02 230047V02 300544652_002_C1 - 11/2016 - © Leybold...
-
Page 2: Table Of Contents
Pressure output Analog output Sensor gas dependence Functions LED-ring/LED status indicator Vacuum-zero/full-scale adjustment and setpoint adjustment User switch adjustments FAQ (Frequently Asked Questions) Trouble shooting Declaration of Contamination Declaration of Conformity Notes Sales and Service 300544652_002_C1 - 11/2016 - © Leybold... -
Page 3: Safety Information
Explosive Environments. Do not use the transmitter in presence of flammable gases or other explosive environments. Corrosive Environments. The transmitter is not intended for use in corrosive environments. Refer to Transmitter installation chapter 3 of this manual. If you need further support please contact Leybold. 300544652_002_C1 - 11/2016 - © Leybold... - Page 4 Service and Repair. Do not substitute parts or modify instrument. Do not install substituted parts or perform any unauthorized modification to the instrument. Return the instrument to an Leybold Calibration and Service Center for service and repair to ensure all of the safety features are maintained.
-
Page 5: Liability And Warranty
Liability and Warranty Leybold assumes no liability and the warranty becomes null and void if the end-user or third parties disregard the information in this document use the product in a non-conforming manner make any kind of interventions (modifications, alterations etc.) on the product ... -
Page 6: Unpacking
1 pcs. German short form manual (P/N: 300544666_001) 1 pcs. Product Inspection and Test Report 1 pcs. Pin for adjusting settings via button If any items are missing, please contact Leybold. 300544652_002_C1 - 11/2016 - © Leybold... -

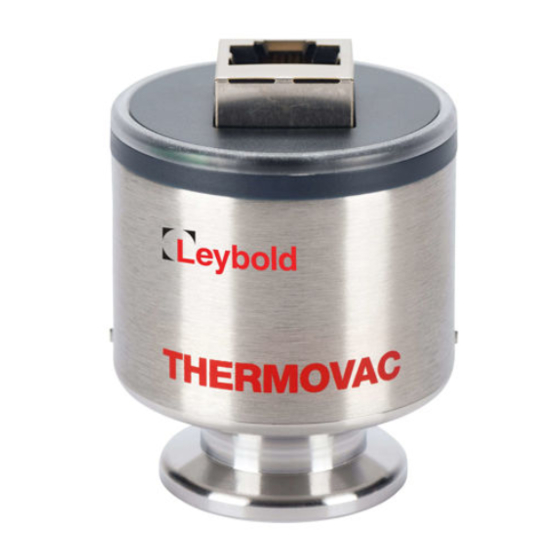

Page 7: Description
For the benefit of the environment, at the end of life of the transmitter, it should not be disposed in the normal unsorted waste stream. It should be deposited at an appropriate collection point or facility to enable recovery or recycling. Parylene-HT® is a trademark of Specialty Coating Systems, Inc 300544652_002_C1 - 11/2016 - © Leybold... -
Page 8: Technical Data
(1) Accuracy and repeatability values are typical values measured in Nitrogen atmosphere at ambient temperature after zero adjustment. (2) For the full list of all materials exposed to process gases please contact Leybold. (3) This bakeout temperature is only allowed at the end of the CF 16 flange. The temperature of the transmitter must not exceed 85 °C (185 °F). -
Page 9: Dimensions
Dimensions [mm] P/N: 230035V02 to 230047V02 Flanges: KF 16 CF 16 NPT 1/8” CF 16 (bakeable) 300544652_002_C1 - 11/2016 - © Leybold... -
Page 10: Accessories And Replacement Part Numbers
Centering Rings (Stainless Steel) with Sintered Metal Filter, DN16 KF 88351 Clamping Rings (Aluminium), DN16 KF 18341 Centering Ring with fine filter DN 16 ISO-KF 88396 83887 CF Bolts with double nut M4+20 CF Copper gaskets DN16 CF ES83941 300544652_002_C1 - 11/2016 - © Leybold... -
Page 11: Transmitter Installation (Mechanical)
The sensor filament is kept at a low temperature of only 35 °C above ambient temperature, however in case of malfunction in the sensor element can exceed normal operating temperature and consequently the transmitter should not be used in explosive environments. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 12: Vacuum Connections
The standard TTR 91 N and TTR 96 N THERMOVAC Transmitters are internally sealed with elastomer FPM sealing and are intended for use in the pressure range 5×10 to 1000 mbar. If used in UHV applications the out gassing rate of FPM can be too high. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 13: Transmitter Installation (Electrical)
The longer the cable, the worse the error will be. Do not connect the set point relay terminals to the analog output. Correct connection of analog output to floating input Incorrect connection of analog output to non-floating input 300544652_002_C1 - 11/2016 - © Leybold... -
Page 14: Input/Output Wiring
Power + (9-30 VDC) Analog Output - Power return - (GND) Relay Setpoint 2 (closing contact) Analog Output + Relay Setpoint 1 (closing contact) ID-Resistor, 27 kΩ (±1%) Relay Setpoint 1 and 2 Common 300544652_002_C1 - 11/2016 - © Leybold... -
Page 15: Setpoint Relays
To change the direction of signal adjustment, you must keep the button pressed until reaching top or low end of the set point range, then the signal will change its direction. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 16: Operations
Measuring noise External sources can interfere with the sensor signal and cause noise on the signal. The low measuring range is most sensitive to measuring noise due to low signal levels. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 17: Analog Output
2.00E-01 5.2441 4.00E+01 8.2032 1.00E-03 2.2850 3.00E-01 5.4706 5.00E+01 8.3279 2.00E-03 2.6721 4.00E-01 5.6312 6.00E+01 8.4297 3.00E-03 2.8986 5.00E-01 5.7559 7.00E+01 8.5158 4.00E-03 3.0592 6.00E-01 5.8577 8.00E+01 8.5904 5.00E-03 3.1839 7.00E-01 5.9438 9.00E+01 8.6562 300544652_002_C1 - 11/2016 - © Leybold... -
Page 18: Sensor Gas Dependence
Calibration factor C Valid range (mbar] 3∙10 to 0.3 mbar 1.57 to 1 mbar 0.84 3∙10 to 0.2 mbar Air, O , CO, N 3∙10 to 0.3 mbar These conversion factors are average values. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 19: Functions
Normal operation 2 sec. red Power on sequence 2 sec. red User switch disabled Continuously RED Transmitter defect Power off Other Relates to configuration of vacuum-zero/full-scale adjustment or relay Setpoint adjustment see chapter 6.2. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 20: Vacuum-Zero/Full-Scale Adjustment And Setpoint Adjustment
The transmitter will only accept full-scale adjustment when the pressure readout is within 600 to 1000 mbar. Note that if the adjustment is performed at a true pressure different from 1000 mbar, it can cause measurement deviations in the upper part of the measuring range. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 21: User Switch Adjustments
Pulsing between red and green Vacuum-zero/Full-scale adjustment Pulsing green Setpoint 1 adjustment* Pulsing red Setpoint 2 adjustment* *The setpoint adjustment is only available for transmitters with user switch adjustable setpoints (P/N: 230040V02, 230043V02, 230045V02, 230047V02.) 300544652_002_C1 - 11/2016 - © Leybold... - Page 22 Behavior page) Keep down for 3 seconds Action Green flash Setpoint properties Setpoint 1 Adjustment Button released (see next page) Keep down for 3 seconds flash Setpoint 2 Adjustment Button released (see next page) 300544652_002_C1 - 11/2016 - © Leybold...
- Page 23 ABOVE BELOW value Time Setpoint Button Button Button released adjustment repeatedly Button down for + no activity for 5 + button down pressed/ released 5 seconds seconds for 1 second released 300544652_002_C1 - 11/2016 - © Leybold...
- Page 24 Tap button to toggle Wait for >5 seconds operation through Output voltage with small increments of 10 mV LED-ring/LED flashes green Wait for >5 seconds LED-ring/LED flashes green 3 times Selected Output voltage is stored 300544652_002_C1 - 11/2016 - © Leybold...
-
Page 25: Faq (Frequently Asked Questions)
Factors that temporally or permanent can influence the measuring performance is contamination, corrosion, heat and electronic interference. Q: Will the transmitter retain user calibration after power is shut off? A: Yes - All transmitter parameters including calibration data is stored internally in the transmitter nonvolatile memory. 300544652_002_C1 - 11/2016 - © Leybold... - Page 26 Q: Reverse voltage has been connected to power supply input. Is the transmitter damaged? A: Not likely – The transmitter power supply circuit has reverse voltage and over voltage protection however, Leybold cannot guarantee that the transmitter will not be damaged. Q: The status light ring is constantly illuminating red? A: The red status indicates a defect sensor element most likely damaged by corrosion or contamination.
-
Page 27: Trouble Shooting
Setpoint direction is different than the user expects. Check electrical connection. Check part number to see if transmitter has setpoint relays. No analog output Power supply turned off. Check electrical connections. Status light ring illuminating red Sensor element defect. 300544652_002_C1 - 11/2016 - © Leybold... -
Page 28: Declaration Of Contamination
All dispatch instructions laid down in the manual must be followed e.g.: • Drain all service fluids • Remove filter elements • Seal all openings airtight • Pack / handle appropriately • Attach the declaration of contamination outside of the packaging 300544652_002_C1 - 11/2016 - © Leybold... - Page 29 300544652_002_C1 - 11/2016 - © Leybold...
-
Page 30: Declaration Of Conformity
Declaration of Conformity 300544652_002_C1 - 11/2016 - © Leybold... -
Page 31: Notes
Notes 300544652_002_C1 - 11/2016 - © Leybold... -
Page 32: Sales And Service
Sales and Service 300544652_002_C1 - 11/2016 - © Leybold...
