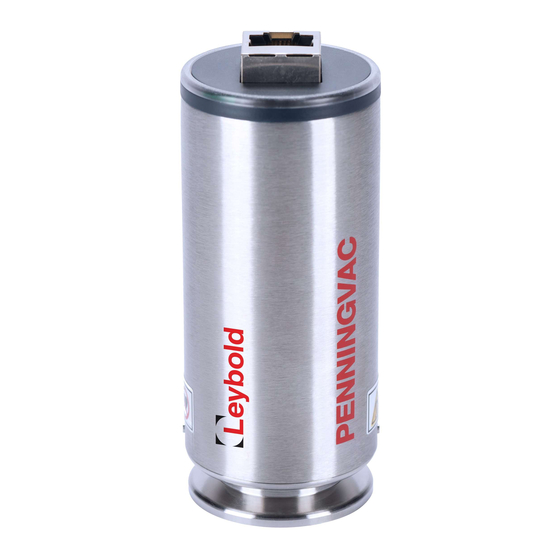

PENNINGVAC
Transmitter
PTR 90 N, PTR 90 N S
Short form manual
300544671_002_C1
Part numbers:
230070V02
230071V02
230072V02
230085V02
230088V02
230089V02
RoHS Compliant
Safety: Symbols used
Critical
Failure to read message could result in damage to the equipment.
!
Attention
Calls attention to important procedures, practices, or conditions.
!
Caution
Refer to manual. Failure to read message could result in personal
injury or serious damage to the equipment or both.
300544671_001_C1 -
12/2016
- © Leybold
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PENNINGVAC PTR 90 N and is the answer not in the manual?

Questions and answers

Summary of Contents for LEYBOLD PENNINGVAC PTR 90 N

  • Page 1 Failure to read message could result in damage to the equipment. Attention Calls attention to important procedures, practices, or conditions. Caution Refer to manual. Failure to read message could result in personal injury or serious damage to the equipment or both. 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 2: Personnel Qualifications

    Strong magnetic fields can disturb electronic devices like heart pacemakers or impair their function. Maintain a safety distance of ≥10 cm between the magnet and the heart pacemaker or prevent the influence of strong magnetic fields by antimagnetic shielding. 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 3: Liability And Warranty

    Liability and Warranty Leybold assumes no liability and the warranty becomes null and void if the end- user or third parties: • disregard the information in this document • use the product in a non-conforming manner • make any kind of interventions (modifications, alterations etc.) on the product •...
  • Page 4: Technical Data

    Analog output (100 Ω impedance): 2-8.6 VDC, Log. 0.6 VDC/decade Analog output resolution: 16 bit Analog output update rate: 16 Hz Sensor fail analog output (Pirani): 10 VDC Materials exposed to vacuum 304 stainless steel, sealing material 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 5 < 5∙10 mbar∙L/s (1) Accuracy and repeatability are typical values measured in Nitrogen atmosphere after zero adjustment at ambient temperature. (2) For the full list of all materials exposed to process gases please contact Leybold. 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 6: Installation

    Attention Ensure a low impedance electrical connection between the PTR 90 N transmitter body and the grounded vacuum system to shield the sensor from external electromagnetic sources. 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 7 12 Relay 2, Normally Open 5 Analog Output + 13 Relay 3, Normally Closed 6 Analog Output - 14 Relay 3, Common 7 Relay 1, Normally Open 15 Relay 3, Normally Open 8 Relay 1, Common 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 8 3 Power + (9-30 VDC) 11 Not Connected 4 Power return - 12 Not Connected 5 Analog Output + 13 Not Connected 6 Analog Output - 14 Not Connected 7 Not Connected 15 Chassis GND 8 Not Connected 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 9: Analog Output

    MP-sensor) and consequently its reading depends on gas type and gas concentration. The transmitter is calibrated for Nitrogen, and will read higher pressure values when exposed to atmospheric air. For more information, refer to Operating Manual 300544657_002. 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 10 Dimensions [mm] P/N: 230070V02, 230071V02, 230072V02 P/N: 230088V02 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 11 P/N: 230085V02 P/N: 230089V02 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 12 Flanges KF 25 KF 40 CF 40 300544671_001_C1 - 12/2016 - © Leybold...
  • Page 13 300544671_001_C1 - 12/2016 - © Leybold...
